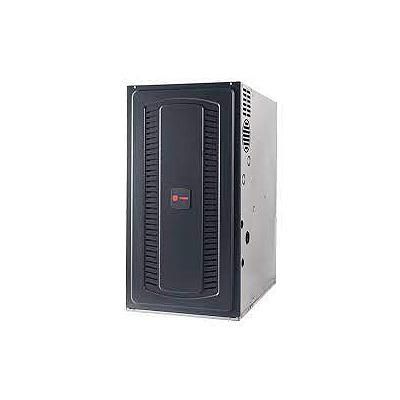

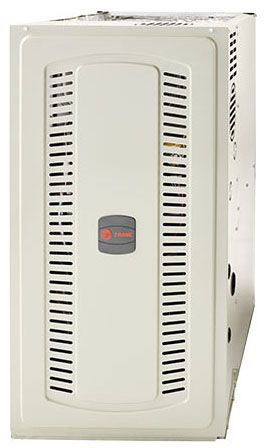

Trane S Series S8B1D120M5PSCA 5T 80 AFUE Non-Condensing Single Stage Gas Furnace
Trane S Series S8B1D120M5PSCA 5T 80 AFUE Non-Condensing Single Stage Gas Furnace
| AFUE Rating | : | 80 % |
| Additional Information | : | Builder-Grade Non-Condensing Type, Round Vent Type, Silicon Nitride Ignition System Element |
| Amperage Rating | : | 14.115 A |
| Blower Size | : | 11 in Dia x 11 in W in |
| CFM Rating | : | 2000 cfm |
| Cabinet Dimensions | : | 34 in H x 24.5 in W x 28.8 in D in |
| Configuration | : | Multi - Position |
| Connection Size | : | 1/2 in |
| Energy Star Compliant | : | No |
| Finish | : | Baked-On Enamel/Pre-Painted Galvanized |
| Frequency Rating | : | 60 Hz |
| Fuel Type | : | Natural Gas |
| Fuse Rating | : | 15 A |
| HP Rating | : | 1 hp |
| Ignition System | : | Hot Surface |
| Input BTU Rating | : | 120,000 Btu/hr |
| Material | : | Steel |
| Model Number | : | S8B1 |
| Model | : | S8B1 |
| Motor Type | : | PSC |
| Number of Burners | : | 6 |
| Number of Speeds | : | 9 |
| Number of Stages | : | Single |
| Output BTU Rating | : | 98000 Btu/hr |
| Pressure Rating | : | 0.5 in-WG |
| Rotational Speed | : | 1050 rpm |
| Series | : | S Series |
| Temperature Rise | : | 35 to 65 deg F |
| Tonnage | : | 5.0 Ton |
| Vent Size | : | 4 in |
| Voltage Rating | : | 115/120 V |
| Width | : | 24.5 in |
Trane's 80 Single-Stage Builder-Grade Gas Furnace helps you save on energy usage while also reducing greenhouse gas emissions. With an 80% Annual Fuel Utilization Efficiency (AFUE) rating, you get more home comfort while saving on your energy bill. This hybrid system's innovative technology combines a gas furnace with a heat pump to heat and cool your home efficiently and reliably. If you are searching for a great value HVAC system, the 80 Single-Stage Builder-Grade Gas Furnace is known for its strong performance and affordability.
Trane S Series - S8B1D120M5PSCA, 5T, 80% AFUE, 120,000 BTU, 120V, PSC Fan Motor,Multi-Position, Non-Condensing Single Stage Gas Furnace
- The Integrated System Control is a solid state device which continuously monitors for presence of flame when the system is in the heating mode of operation
- Durable, cycle tested, heavy gauge tubular aluminized steel heat exchanger quickly transfers heat to provide warm conditioned air to the structure. Low energy power vent blower, to increase efficiency and provide a discharge of gas fumes to the outside
- Multiport, Inshot burners will give years of quiet and efficient service. All models can be converted to L.P. gas with LP conversion kit
- The 9 speed constant torque blower motor has sufficient airflow for most heating and cooling requirements and will switch from heating to cooling speeds on demand from room thermostat.
- Heavy gauge steel and "wrap-around" cabinet construction
