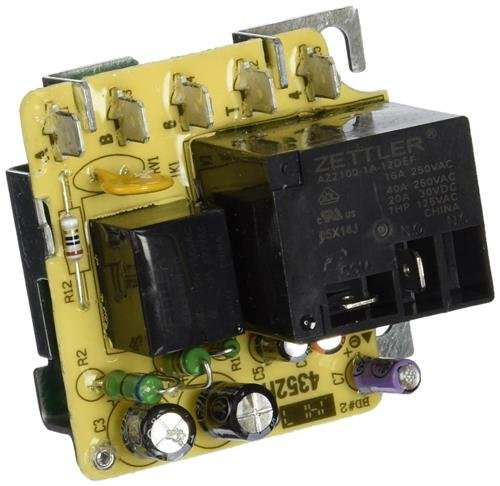

Proline Parts RLY02807 Time Delay Relay, NO (Power Pole) Contact Form, 7 A (FLA, 208/240/277 VAC, Power Pole); 15 A (Resistive, 208/240/277 VAC, Power Pole), 24 VAC, 208/240/277 VAC (Power Pole), 24 VAC (Pilot Pole), Quick Connect Terminal, Panel Mount, 2-1/4" Overall Height

The RLY02807 Time Delay Relay is for use in compressor-run air conditioning and heat pump systems to delay the blower shut-off after the compressor has shut off. This delay allows the residual cooled air to be blown into the controlled space, increasing the efficiency of the system in cooling. Depending on electrical hookup in a heat pump system, delay of blower shut-off could also occur in heating.

Proline Parts Time Delay Relay, NO (Power Pole) Contact Form, 7 A (FLA, 208/240/277 VAC, Power Pole); 15 A (Resistive, 208/240/277 VAC, Power Pole), 24 VAC, 208/240/277 VAC (Power Pole), 24 VAC (Pilot Pole), Quick Connect Terminal, Panel Mount, 2-1/4" Overall Height, 2-1/4" Overall Width, 3" Overall Depth

• Designed for use in compressor-run air conditioning and heat pump systems to delay blower shut-off.
• Enhances system efficiency by utilizing residual conditioned air after compressor stops.
• Features a 2-second on-delay and approximately 80-second off-delay.
• Operates with a 24 VAC nominal coil voltage.
• Power pole rated for 7 FLA / 36 LRA at 208/240/277 VAC.
• Compatible With: Many Trane and American Standard systems (direct replacement for RLY02257).
• UL Listed.

• Installation and Operation Manual https://s3.amazonaws.com/open-secret-production-public/data-studio/marcone/documents/rly02807-installation-guide-4407-9307.pdf
