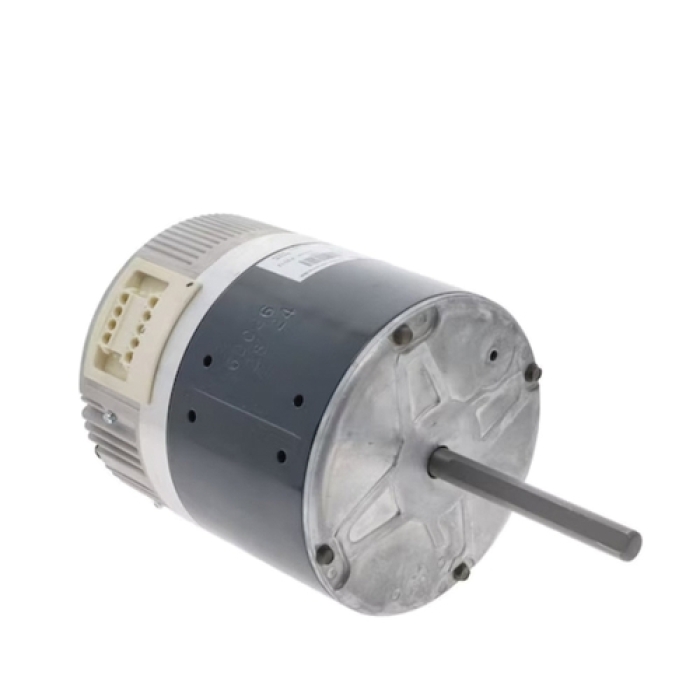

TRANE® MOT18584 Direct Drive Blower Motor, 1/2 hp Motor, 120/208 to 240 V, 1 ph, 1050 rpm Motor, 1-Speed, 48 NEMA
TRANE® MOT18584 Direct Drive Blower Motor, 1/2 hp Motor, 120/208 to 240 V, 1 ph, 1050 rpm Motor, 1-Speed, 48 NEMA
Manufacturer: Trane International Inc
Brand: TRANE®
Part #: 387965
MPN: MOT18584
Customer Part #:
Min. Order Qty: 1
Login for Availability
| Amperage Rating | : | 3.9/6.4 A |
| Compatible Models | : | TAMXB0C42V41DA, TAM9A0B30V31DBA, TAMXB0A24V21DA, TAMXA0A24V21DAA |
| Depth | : | 10.15 in |
| Enclosure Type | : | Open Air Over |
| For Use With | : | TAMXB0C42V41DA, TAM9A0B30V31DBA, TAMXB0A24V21DA and TAMXA0A24V21DAA Air Handlers |
| Function Type | : | Motor |
| Height | : | 6.18 in |
| Motor HP | : | 1/2 hp |
| Motor RPM | : | 1050 rpm |
| Mounting Type | : | Belly Band |
| NEMA Frame Size | : | 48 |
| Number of Speeds | : | 1 |
| Packaged Depth | : | 8.6 in |
| Packaged Height | : | 8.3 in |
| Packaged Width | : | 16.7 in |
| Phase | : | 1 ph |
| Rotation Direction | : | Clockwise, Counter Clockwise |
| Shaft Diameter | : | 1/2 in |
| Shaft Length | : | 3.92 in |
| Shipping Weight | : | 13.15 lb |
| Voltage Rating | : | 120/208 to 240 V |
| Width | : | 5.66 in |
TRANE® Direct Drive Blower Motor, 1/2 hp Motor HP, 120/208 to 240 V, 1 ph Phase, 1050 rpm Motor RPM, 1 Speed, Clockwise, Counter Clockwise Rotation Direction, Open Air Over Enclosure, 1/2 in Shaft Diameter, 48 Frame, 3.92 in Shaft Length, 6.18 in Height, 5.66 in Width, 10.15 in Depth, 3.9/6.4 A, For Use With: TAMXB0C42V41DA, TAM9A0B30V31DBA, TAMXB0A24V21DA and TAMXA0A24V21DAA Air Handlers, Motor Function Type, Belly Band Mounting, Compatible Models: TAMXB0C42V41DA, TAM9A0B30V31DBA, TAMXB0A24V21DA, TAMXA0A24V21DAA
