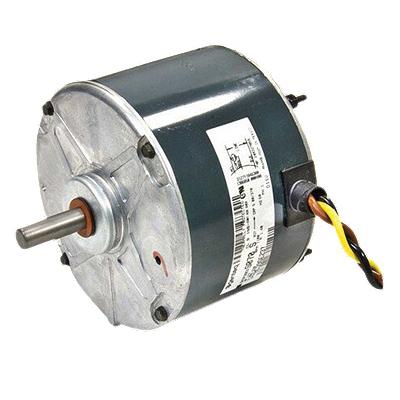

TRANE® MOT17602 Condenser AC Fan Motor, 1/4 hp, 460 V, 60 Hz, 1 ph -Phase, 48 Frame, 850 rpm Speed
TRANE® MOT17602 Condenser AC Fan Motor, 1/4 hp, 460 V, 60 Hz, 1 ph -Phase, 48 Frame, 850 rpm Speed
Manufacturer: Trane International Inc
Brand: TRANE®
Part #: 387955
MPN: MOT17602
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
| Additional Information | : | 5 uF Capacitor, CCW/LE Rotation, Blower, Permanent Split Capacitor, Continuous Duty, Direct Drive Motor |
| Bearing Type | : | Ball |
| Enclosure Type | : | Totally Enclosed Air Over |
| Frame | : | 48 |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1/4 hp |
| Insulation Class | : | Class B |
| Mounting Type | : | Screw/Vertical Shaft Down |
| Number of Speeds | : | 1 |
| Overall Depth | : | 6.87 in |
| Overall Width | : | 5.58 in |
| Phase | : | 1 ph |
| Shaft Size | : | 1/2 in Dia x 1.91 in L |
| Speed Rating | : | 850 rpm |
| Suitable For Use With | : | 4TWA7060A4000AA, 4A6C7060A4000AB, 4TTA7060A4000AA, 4A7C7060A4000AA Split System Heat Pumps |
| Temperature Rating | : | -40 to 135 deg F |
| Voltage Rating | : | 460 V |
TRANE® Condenser AC Fan Motor, 1/4 hp, 460 V, 60 Hz, 1 ph Phase, 850 rpm, 1 Speed, Totally Enclosed Air Over Enclosure, 48 Frame, 1/2 in Dia x 1.91 in L Shaft, Ball Bearing, Screw/Vertical Shaft Down Mounting, -40 to 135 deg F, Insulation Class: Class B, 5.58 in Overall Width, 6.87 in Overall Depth, For Use With: 4TWA7060A4000AA, 4A6C7060A4000AB, 4TTA7060A4000AA, 4A7C7060A4000AA Split System Heat Pumps, Additional Information: 5 uF Capacitor, CCW/LE Rotation, Blower, Permanent Split Capacitor, Continuous Duty, Direct Drive Motor
