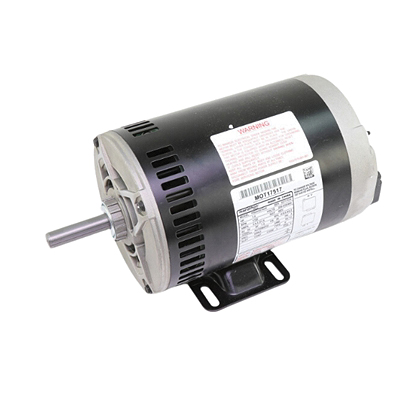

MOTOR; 2.0 HP AT 208-230/460/60/3. 1.5 HP AT 190/380-415/50/3, 1740 RPM, 145T FRAME, BALL BEARINGS
MOTOR; 2.0 HP AT 208-230/460/60/3. 1.5 HP AT 190/380-415/50/3, 1740 RPM, 145T FRAME, BALL BEARINGS
Manufacturer: Trane International Inc
Brand: TRANE®
Part #: 387954
MPN: MOT17519
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
| Base Type | : | Rigid |
| Bearing Type | : | Ball |
| Center Shaft Height | : | 3.5 |
| Enclosure Type | : | Thermal Protection |
| Frame Size | : | 56 |
| Frequency Rating | : | 50/60 Hz |
| Full Load Amperage (FLA) | : | 6.3 to 6.2/3.1 |
| Grounding Ring | : | No |
| HP (Decimal) | : | 2 |
| HP (Fraction) | : | 2 |
| Insulation Class | : | F |
| Inverter Duty | : | False |
| Motor Type | : | Type P; AC; Continuos Duty |
| Mounting Type | : | Rigid Base/Horizontal |
| Mount | : | Rigid |
| NEMA Dimensions (In) | : | 6.625 x 9.125 |
| Number of Phase | : | 3 |
| Protector Type | : | Automatic Reset Thermal |
| Rotate Conduit Box | : | No |
| Rotation | : | CCW |
| Service Factor | : | 1.15 |
| Shaft Diameter (In) | : | 0.875 |
| Shaft Length (In) | : | 3.44 |
| Speed (RPM) | : | 1,725 |
| Standards | : | CSA,UL |
| Temperature Rating | : | -40 to 150 Deg. F |
| Thermal Protector | : | True |
| Voltage (VAC) | : | 208 to 230/460 |
TRANE® Motor, 2 hp, 460 VAC, 60 Hz, 3 ph Phase, 1740 rpm, IP55 Enclosure, 145T Frame, 0.98 in Dia x 3.44 in L Shaft, Ball Bearing, Class F Insulation Class, 6-5/8 x 9-1/8 in NEMA Dimension
- Automatic reset thermal protection
