| Bearing Type | : | Ball |
| Body Length | : | 5.98 |
| Enclosure Type | : | ODP |
| Flat Length (In) | : | 1.22 |
| Frame Size | : | 48 |
| Frequency Rating | : | 60 Hz |
| HP (Decimal) | : | 0.75 |
| HP (Fraction) | : | 3/4 |
| Insulation Class | : | B |
| Load Current (A) | : | 8.1 |
| Motor Cap | : | 15 UF at 370 V |
| Motor Type | : | Permanent Split Capacitor |
| Mounting Type | : | Resiliant |
| NEMA Dimensions (In) | : | 5.6875 x 8.125 |

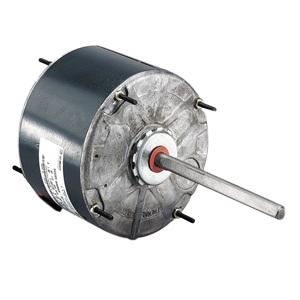

| New Long Description-500 | : | MOTOR, AC, BLOWER, 115V AC, 8.1A LOAD CURRENT, 0.75HP, 1140RPM SPEED, 60HZ FREQUENCY, 1 PHASE, CCW/CW ROTATION, 48 FRAME, PSC TECHNOLOGY, 1 SPEEDS, ODP ENCLOSURE, B INSULATION CLASS, RESILIENT BASE MOUNT, AUTOMATIC PROTECTOR, THERMAL PROTECTOR, BALL BEARING, 15UF AT 370V MOTOR CAPACITANCE, 0.5IN SHAFT DIAMETER, 1.81IN SHAFT LENGTH, 5.6875IN DIAMETER, 8.125IN HEIGHT NEMA DIMENSIONS, MEETS CSA, UL |
| New Short Description- 150 | : | MOTOR,AC,BLOWER,115V AC,8.1A LOAD,0.75HP,1140RPM,60HZ,1 PH,CCW/CW ROTATION,48 FR,PSC TECH,1 SPEED,ODP ENCL,B INSUL,RESILIENT BASE MTG,BALL BRG |
| Number of Phase | : | 1 |
| Number of Shafts | : | 1 |
| Number of Speeds | : | 1 |
| Protector Type | : | Automatic |
| Rotation | : | CW / CCW |
| Shaft Diameter (In) | : | 0.5 |
| Shaft Length (In) | : | 1.8 |
| Speed (RPM) | : | 1,200 |
| Standards | : | CSA,UL |
| Suggested Capacitor | : | 15.0 MFD/370V AC |
| Technology | : | PSC |
| Temperature Rating | : | 35 to 120 Ambient |
| Thermal Protector | : | True |
| Type | : | AC |
| Voltage (VAC) | : | 115 |
| Wire Length (in) | : | 16 |
