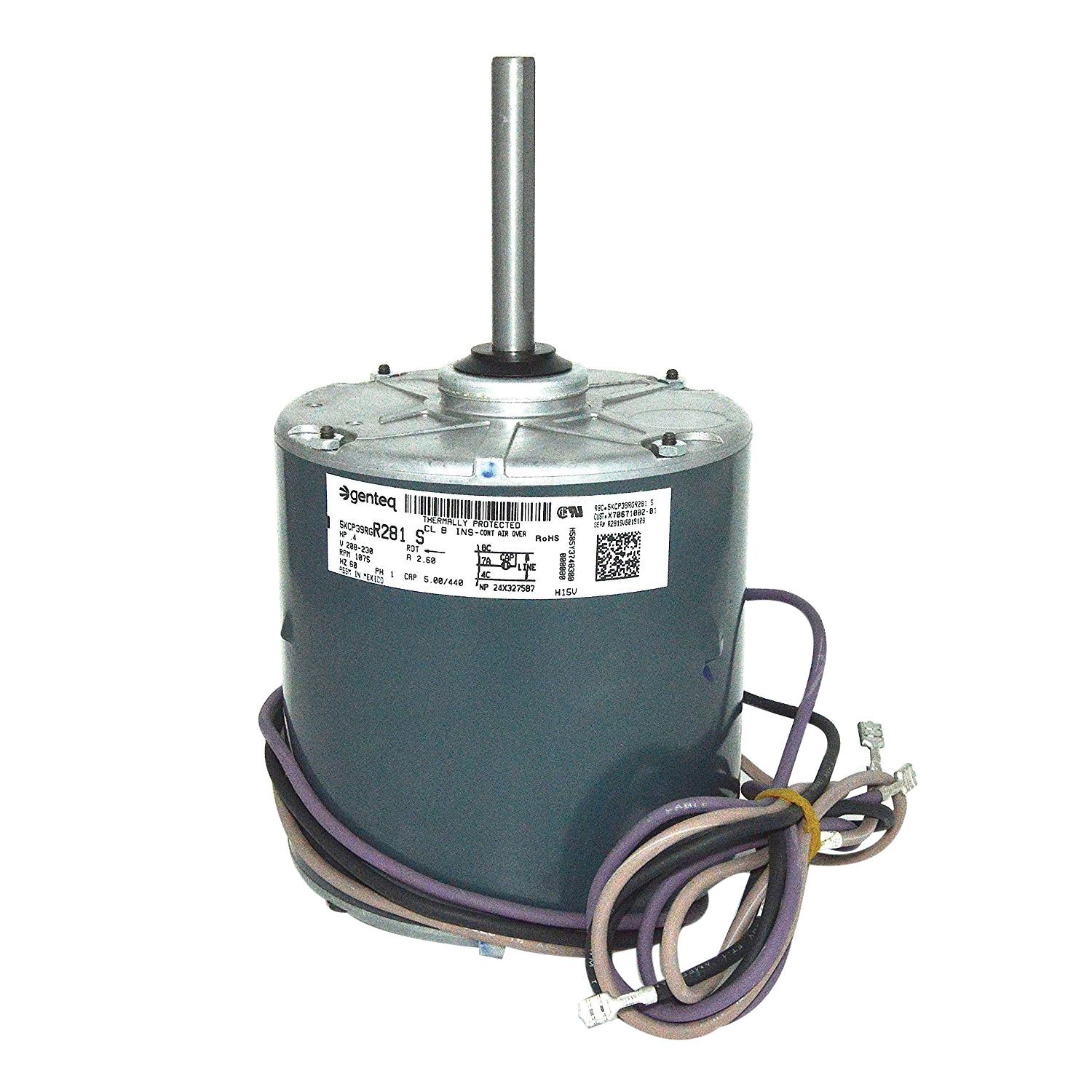

TRANE® MOT04762 Condenser Fan Motor, 208 to 230 V, 2/5 hp, 1075 rpm Speed, 1 ph -Phase, 60 Hz, 48 Frame
TRANE® MOT04762 Condenser Fan Motor, 208 to 230 V, 2/5 hp, 1075 rpm Speed, 1 ph -Phase, 60 Hz, 48 Frame
Manufacturer: Trane International Inc
Brand: TRANE®
Part #: 387876
MPN: MOT04762
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
| Bearing Type | : | Ball |
| Frame Size | : | 48 |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 2/5 hp |
| Number of Poles | : | 6 |
| Phase | : | 1 ph |
| Rotation Type | : | Counter-Clockwise |
| Shaft Size | : | 1/2 in Dia x 3-1/2 in L |
| Speed Rating | : | 1075 rpm |
| Voltage Rating | : | 208 to 230 V |
TRANE® Condenser Fan Motor, 208 to 230 V, 2/5 hp, 1075 rpm, 1 ph Phase, 60 Hz, 48 Frame, 1/2 in Dia x 3-1/2 in L Shaft, Counter-Clockwise Rotation, Ball Bearing, 6 Poles
- Capacitor 5 uF at 440 VAC
