| Discharge Line Size | : | 1.1 in |
| Phase | : | 3 ph |
| Refrigerant Type | : | R22 |
| Suction Line Size | : | 1.6 in |
| Tonnage | : | 15.00 ton |
| Voltage Rating | : | 0.9 V |

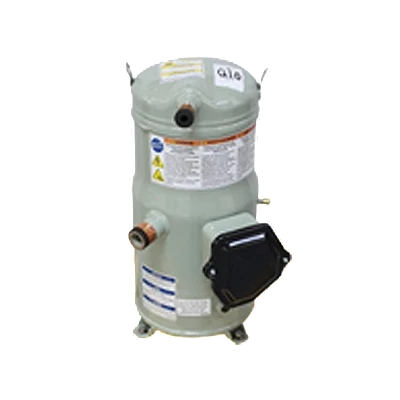

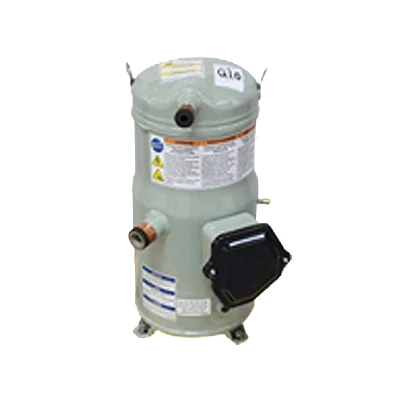

TRANE® Compressor, 185400 Btu/hr, 15 ton Tonnage, Brazed, Stub Tube, Sweat Connection, 1-5/8 in Suction Line, 1-1/8 in Discharge Line, 400/460 VAC, 27/27.6 RLA, 174/178 LRA, 30 A Inductive, 15 hp, 50/60 Hz, 3 ph Phase, R22 Refrigerant, 3450 rpm, Mineral Compressor Oil, Spacer Solid Mounting, Cast-Iron, 300 psig Low Side, 500 psig High Side Test, 200 psig Differential
