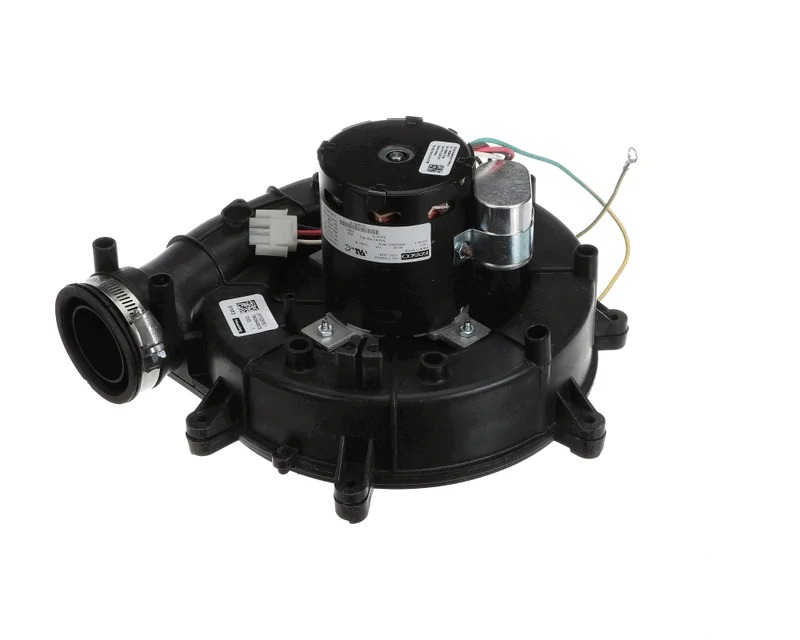

BLOWER; INDUCER, 2 STAGE, 115V, 60 HZ, 3300/2345 RPM, 5 MFD CPT AT 370 VAC, INCLUDES GASKET & SCREWS
BLOWER; INDUCER, 2 STAGE, 115V, 60 HZ, 3300/2345 RPM, 5 MFD CPT AT 370 VAC, INCLUDES GASKET & SCREWS
Manufacturer: Trane International Inc
Brand: TRANE®
Part #: 385677
MPN: BLW01401
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
| Enclosure Type | : | Open |
| Frame Size | : | 3.3 in. Dia. |
| Frequency Rating | : | 60 Hz |
| HP (Fraction) | : | High 1/16HP (63W); Low 1/20 HP (37W) AT 230V 60 Hz |
| Insulation Class | : | B |
| Motor Type | : | Permanent Split Capacitor |
| Mounting Type | : | Horizontal |
| New Long Description-500 | : | ASSEMBLY, INDUCER, DUAL STAGE INDUCER BLOWER, 115VAC, 1.75A, 60HZ ELECTRICAL RATING, 3300/2345RPM SPEED FEATURES, INCLUDES GASKET, SCREW |
| New Short Description- 150 | : | ASSEMBLY,INDUCER,DUAL STAGE INDUCER BLOWER,115VAC,1.75A,60HZ ELEC,3300/2345RPM SPEED FEATURES,INCL GASKET,SCREW |
| Number of Phase | : | 1 |
| Number of Speeds | : | 2 |
| Rotation | : | CW |
| Shaft Diameter (In) | : | 0.3125 |
| Speed (RPM) | : | 3,300 |
| Type | : | AC |
| Voltage (VAC) | : | 120 |
