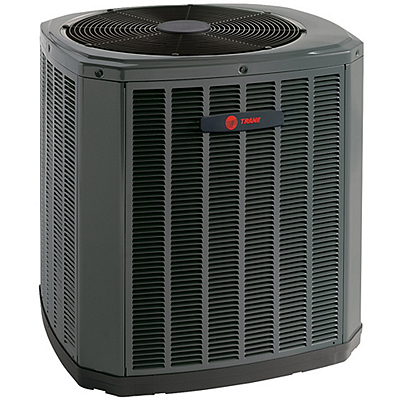

Trane 5TTA3048A4000A,Choice, 4T, 13 SEER2, Single Stage Light Commercial Air Conditioner
Trane 5TTA3048A4000A,Choice, 4T, 13 SEER2, Single Stage Light Commercial Air Conditioner
Manufacturer: Trane International Inc
Brand: TRANE®
Part #: 390514
MPN: 5TTA3048A4000A
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
| BTU Range | : | 48,000 |
| BTU Rating | : | 48,000 Btu/hr |
| Br. Cir. Prot. Rating. - Max (Amps) | : | 8.6 |
| Charging Specification Subcooling | : | 10 deg F |
| Crated Dimensions (H X W X D) | : | 42.5 x 35 x 38 |
| Factory Charged | : | Yes |
| Line Size - Liquid (in) | : | 5/16 in |
| Line Size - Suction (In) | : | 7/8 in |
| MCA | : | 8.6 |
| Max Amps | : | 40.0 |
| Max Breaker Size, Without Electric Heater (Amps) | : | 15.0 amps |
| Max Fuse | : | 15 amps |
| Model | : | 5TTA3 |
| Motor Power Rating | : | 460 V/3Phase/60 Hz |
| Number of Outdoor Fan Used | : | 1.0 |
| Number of Stages | : | Single Stage |
| Outdoor Coil-FPI | : | 24 |
| Outdoor Coil-Face Area sq-ft | : | 24.93 |
| Outdoor Coil-Rows | : | 1.0 |
| Outdoor Coil-Tube Size (In) | : | 3/8 |
| Outdoor Coil-Type | : | Spine Fin |
| Outdoor Fan - CFM | : | 5221 |
| Outdoor Fan - Diameter In | : | 27.5 |
| Outdoor Fan - Drive | : | Direct |
| Outdoor Fan - HP | : | 1/5 |
| Outdoor Fan - Number of Speeds | : | 1 |
| Outdoor Fan - Speed | : | 825.0 |
| Outdoor Fan - Type | : | Propeller |
| Outdoor Unit: Compressor LRA | : | 6.4 - 50.0 |
| Outdoor Unit: Compressor Type | : | Climatuff Scroll |
| Outdoor Unit: Fan Motor FLA | : | 0.6 |
| Phase | : | 3.0 ph |
| Power Supply | : | 460 V/3Phase/60 Hz |
| Refrigerant Charge lbs | : | 4 lbs - 15 oz |
| Refrigerant Type | : | R-454B |
| SEER2 Range | : | 14.3 |
| SEER | : | 13.0 |
| Series | : | Choice |
| Sound Level | : | 71 dBA |
| Stages | : | 1.0 |
| System Control Type | : | 24 V voltage |
| Tonnage | : | 4.0 Ton |
| Voltage | : | 460 V |
Trane 5TTA3048A4000A,Choice, 4T, 13 SEER2, 48,000 BTU, 460V, R454B, Single Stage Light Commercial Air Conditioner
- 13 Single-Stage Air Conditioner outdoor products using R-454B refrigerant
- Unit casing is constructed of heavy gauge, galvanized steel and painted with a weather-resistant powder paint finish. The corner panels are prepainted. All panels are subjected to our 1,000 hour salt spray test.
- Refrigeration system controls include condenser fan, compressor contactor and low and high pressure switches. A factory supplied, field installed liquid line drier is standard.
- The compressor features internal over temperature and pressure protection. Other features include: Centrifugal oil pump and low vibration and noise.
- The outdoor coil provides low airflow resistance and efficient heat transfer. The coil is protected on all four sides by louvered panels.
- New TXV and refrigeration designs that are optimized for maximum performance using the new refrigerant
