| Additional Information | : | 11 in Dia x 8 in W Direct Drive Centrifugal Fan, TXV Flow Control |
| Amperage Rating | : | 6 A |
| BTU Rating | : | 60,000 Btu/hr |
| Blower type | : | Constant Torque ECM |
| CFM Rating | : | 2,000 cfm |
| Coil Rating | : | 6.88 sq-ft Face Area |
| Configuration | : | Downflow, Horizontal Left/Right, Multi-Position |
| Connection Size | : | 3/4 in |
| Connection Type | : | NPT |
| Dimensions | : | 57-3/8 in H x 23-1/2 in W x 21-1/8 in D |
| Finish | : | Painted |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 3/4 hp |
| Liquid Line Size | : | 3/8 in |
| Material | : | Metal |
| Metering Device | : | TXV |
| Model | : | 5TEM4 |
| Motor Type | : | ECM |
| Number of Speeds | : | 8 |
| Number of Stages | : | Single |
| Phase | : | 1 ph |
| Position | : | Multi Position |
| Product Family Series | : | Choice |
| Refrigerant Control | : | TXV |
| Refrigerant Type | : | R-454B |
| Series | : | Choice |
| Stage | : | 1 |
| Suction Line Size | : | 7/8 in |
| Tonnage | : | 5.0 Ton |
| Voltage Rating | : | 208/230 V |

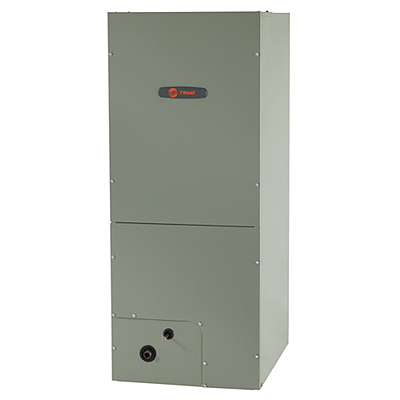

The 5TEM4 series air handler is designed for installation in a closet, utility room, alcove, basement, crawlspace or attic. These versatile units are applicable to air conditioning and heat pump applications. Several models are available to meet the specific requirements of the outdoor equipment. Field installed electric resistance heaters are available.
Trane 5TEM4D07AC51SA,Choice, 3.5-5.0T, 60,000 BTU, 208/230V, R454B, ECM Motor, TXV Metering, Multi Position, Single Stage Air Handler
- Low Global Warming Potential (GWP) outdoor units that utilize R-454B refrigerant
- New TXVs designed for compatibility with R-454B refrigerant
- A new Refrigerant Detection System (RDS), including a Mitigation Control Board (MCB) and refrigerant leak sensor
- Multi-Position UP/Down Flow, Horizontal Left /Right
- Painted metal cabinet with captured foil face insulation
- ALL Aluminum Coil
- Electric Heaters with polarized plug connections (sold as accessory)
- Horizontal Drain pan
