| Additional Information | : | 11 in Dia x 10 in W Blower, Direct Drive, EEV Flow Control |
| Amperage Rating | : | 4 A |
| BTU Rating | : | 24,000 Btu/hr |
| Blower type | : | Variable Speed ECM |
| CFM Rating | : | 800 cfm |
| Configuration | : | Downflow, Horizontal Left/Right, Multi-Position |
| Connection Size | : | 3/4 in |
| Connection Type | : | NPT |
| Dimensions | : | 55-3/4 in H x 21-1/4 in W x 21-3/4 in D |
| Filter Size | : | 20 x 20 x 1 in |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 15 A |
| Liquid Line Size | : | 3/8 in |
| Metering Device | : | EEV |
| Model | : | 5TAMX |
| Motor Type | : | ECM |
| Number of Stages | : | Variable |
| Phase | : | 1 ph |
| Position | : | Multi Position |
| Product Family Series | : | Premier |
| Refrigerant Control | : | EEV |
| Refrigerant Type | : | R-454B |
| Rotational Speed | : | 1050 rpm |
| Series | : | Premier |
| Stage | : | Variable Speed |
| Suction Line Size | : | 3/4 in |
| Tonnage | : | 2.0 Ton |
| Voltage Rating | : | 208/230 V |

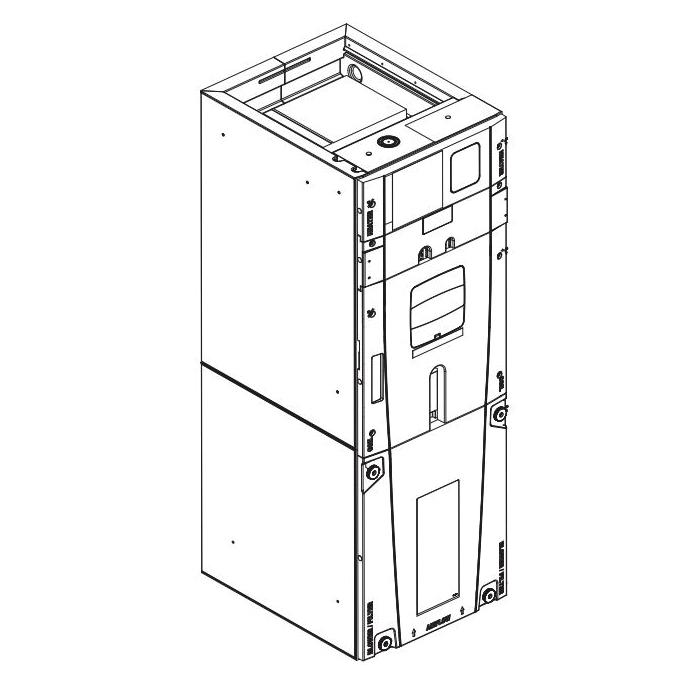

Trane 5TAMXC03AV31DA, Premier, 1.5-2.5T, 18,000 - 30,000 BTU, 208/230V, R454B, EEV Metering, ECM Motor, Multi Position, Variable Speed Air Handler
- Low Global Warming Potential (GWP) outdoor units that utilize R-454B refrigerant
- Electronic Expansion Valve (EEV) with low ambient and low superheat compressor protection
- Vortica® Blower with Integrated Slide Deck for Easy Removal
- Multi-Position UP/Down Flow, Horizontal Left /Right
- Aluminum coil with integrated slide deck for easy removal and polarized plug connections on coil EEV
- Variable speed ECM motor
- Slide in electric heaters with polarized plug connections (sold as accessory)
- Link™ Communicating or 24V Control
