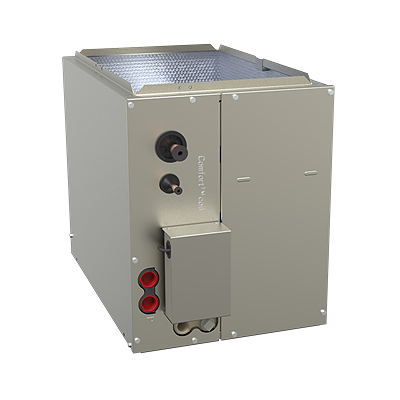

TRANE® 5PXCB003AS3HAA 1.5-3.0 Ton Cased Downflow/Upflow Evaporator Coil, 17.5 in W, TXV, R-454B
TRANE® 5PXCB003AS3HAA 1.5-3.0 Ton Cased Downflow/Upflow Evaporator Coil, 17.5 in W, TXV, R-454B
Manufacturer: Trane International Inc
Brand: TRANE®
Part #: 390460
MPN: 5PXCB003AS3HAA
Customer Part #:
Min. Order Qty: 1
Login for Availability
| Air Flow Direction | : | Downflow~Upflow |
| BTU Rating | : | 18,000 Btu/hr~24,000 Btu/hr~30,000 Btu/hr~36,000 Btu/hr |
| Coil Casing | : | Cased |
| Coil Material | : | Aluminum |
| Depth | : | 21.5 in |
| Height | : | 17.5 in |
| Liquid Line Size | : | 3/8 in |
| Model Number | : | 5PXC |
| Number of Rows | : | 3 |
| Packaged Depth | : | 27.66 in |
| Packaged Width | : | 22.0 in |
| Refrigerant Type | : | R-454B |
| Refrigeration Control Type | : | TXV |
| Tonnage | : | 1.5 Ton~2.0 Ton~2.5 Ton~3.0 Ton |
| Width | : | 17.5 in |
The TRANE® 5PXCB003AS3HAA is a 1.5 to 3.0 Ton cased downflow/upflow evaporator coil. It is rated for 18,000 to 36,000 Btu/hr of capacity. Features include TXV metering. The unit uses R-454B refrigerant. Dimensions: 17.5 in H x 17.5 in W x 21.5 in D.
