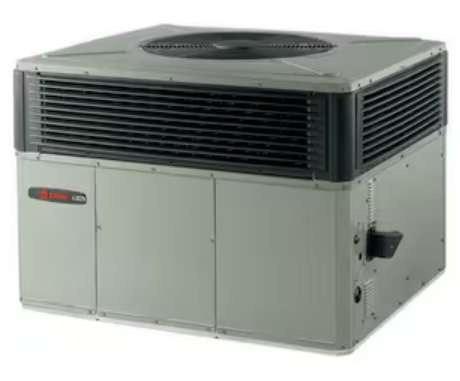

Trane XR14C 4YCC4060E1090A 5T 14 SEER Single Stage Gas/Electric Package Unit
Trane XR14C 4YCC4060E1090A 5T 14 SEER Single Stage Gas/Electric Package Unit
Manufacturer: Trane International Inc
Brand: TRANE®
Part #: 390448
MPN: 4YCC4060E1090A
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
| AFUE | : | 81 % |
| CFM Rating | : | 2,000 cfm |
| Cooling Capacity | : | 60,000 BTU |
| Efficiency Rating | : | 14.0 |
| Energy Star Rated | : | N |
| Flow Control | : | EEV |
| Frequency Rating | : | 60 Hz |
| Heatring Capacity | : | 90,000 BTU |
| Input BTU Rating | : | 60,000 Btu/hr |
| Max Fuse | : | 60 amps |
| Model | : | 4YCC4 |
| Motor Type | : | ECM |
| Noise Level | : | 73 dba |
| Number of Stages | : | Single |
| Phase | : | 1 ph |
| Refrigerant Type | : | R-410A |
| Series | : | XR14c |
| Tonnage | : | 5.0 ton |
| Voltage Rating | : | 208/230 V |
Trane XR14C - 4YCC4060E1090A, 5T, 14 SEER, 60,000 / 90,000 BTU, 81% AFUE, 208/230V, Single Stage Convertible Gas/Electric Package Unit
- The Spine Fin™ condenser coil
- Indoor fan- Direct-drive, forwardcurved, centrifugal wheel in a Composite Vortica® Blower housing
- Condenser Fan — Direct-drive, draw through propeller type.
- Casings- All panels shall be heavy gauge steel, gasketed and insulated
- The Climatuff® compressor features internal over temperature and pressure protector, total dipped hermetic motor
- Evaporator Coil — Internally enhanced 3/8-inch OD seamless copper tubing mechanically bonded to aluminum fins
