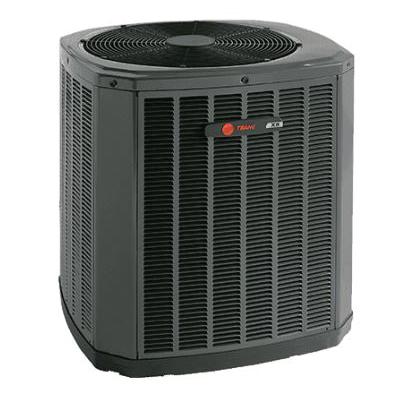

TRANE® XR16 Series 4TWR6060H1 4TWR6060H1000A Split-System Heat Pump, 208/230 V, 32 A, 1/3 hp, 1 ph Phase, Steel
TRANE® XR16 Series 4TWR6060H1 4TWR6060H1000A Split-System Heat Pump, 208/230 V, 32 A, 1/3 hp, 1 ph Phase, Steel
| Amperage Rating | : | 32 A |
| BTU Cooling Rating | : | 60,000 Btu/hr |
| CFM Rating | : | 4992 cfm |
| Coil Rating | : | 29.15 sq-ft Face Area, 24 FPI |
| Color | : | Tarpaulin Gray |
| Compressor Stages | : | Single Stage |
| Compressor Type | : | Scroll |
| Connection Type | : | Brazed |
| Dimensions | : | 51 in H x 35.1 in W x 38.7 in D |
| Domestic/Import | : | Domestic |
| Drive Type | : | Propeller Direct |
| Finish | : | Galvanized/Powder-Coated |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 50 A |
| HP Rating | : | 1/3 hp |
| HSPF2 Range | : | 9.5 |
| Liquid Line (OD) | : | 3/8 in |
| Material | : | Steel |
| Model | : | 4TWR6 |
| Number of Stages | : | Single |
| Phase | : | 1.0 ph |
| Refrigerant Type | : | R-410A |
| Rotational Speed | : | 850 rpm |
| SEER Rating | : | 16 |
| SEER2 Range | : | 9.5 |
| Series | : | XR16 |
| Sound Level | : | 72 dBA |
| Suction Line Size | : | 7/8 in |
| Temperature Rating | : | 115 deg F |
| Tonnage | : | 5 |
| Tonnage | : | 5.0 Ton |
| Volts | : | 208/230 V |
The single-stage XR16 heat pump offers up to 17 SEER/9.6 HSPF, available in 1.5 to 5 ton models, making it an energy efficient choice for home comfort. This unit's Spine Fin® coil and a Climatuff® compressor can handle outdoor climate conditions and prevent interior temperature swings.
TRANE® Split-System Heat Pump, XR16 Series, Model: 4TWR6060H1, 208/230 V, 32 A, 1/3 hp, 60 Hz, 1 ph Phase, 850 rpm Rotational Speed, 55000 Btu/hr Cooling, 60000 Btu/hr Heating, 4992 cfm, 16 SEER, 9.5 HSPF, Brazed Connection, Scroll Compressor, R-410A Refrigerant, 3/8 in Liquid Line, 7/8 in Suction Line, 50 A Fuse Rating, 29.15 sq-ft Face Area, 24 FPI Coil, Propeller Direct Drive, Tonnage: 5 ton, 72 dB Sound Level, 1 Stages, Steel, Finish: Galvanized/Powder-Coated, Tarpaulin Gray, 115 deg F, 51 in H x 35.1 in W x 38.7 in D, Domestic/Import: Domestic
