| BTU Cooling Rating | : | 36,000 Btu/hr |
| Compressor Stages | : | Two Stage |
| Compressor Type | : | Climatuff™ |
| Dimensions | : | 45 in H x 37 in W x 34 in D |
| Finish | : | Galvanized/Powder Painted |
| HSPF2 Range | : | 7.5 |
| Liquid Line (OD) | : | 3/8 in |
| Material | : | Steel |
| Max Fuse | : | 35 amps |
| Min SEER | : | 16.0 |
| Model | : | 4TWR6 |
| Number of Stages | : | Two |
| Phase | : | 1.0 ph |
| Refrigerant Type | : | R-410A |
| SEER Rating | : | 16 |
| SEER2 Range | : | 7.5 |
| Series | : | XR16 |
| Sound Level | : | 72 dBA |
| Tonnage | : | 3 |
| Tonnage | : | 3.0 Ton |
| Volts | : | 208/230 V |
Homeowners can count on this two-stage heat pump to bring reliable heating and cooling to their living spaces. The XR16 heat pump has two-speeds and two-fan stages, giving homeowners the ability to tailor their system exactly to their current temperature needs and change settings as frequently as necessary. Plus, at all settings, the XR16 heat pump has a SEER2 rating of up to 16.2 and an HSPF2 rating of up to 8.1, meaning this heat pump is reliably efficient.

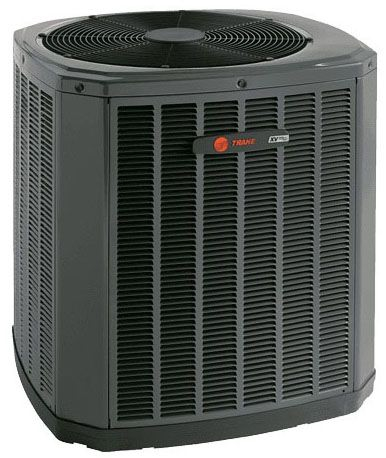

Trane XR16 4TWR6036N1000A, 3T ,16 SEER, 36,000 BTU, 7.5 HSPF, 208/230V, Single Stage Heat Pump
- Unit casing is constructed of heavy gauge, galvanized steel and painted with a weather-resistant powder paint finish on all louvered panels and the fan top panel.
- Refrigeration system controls include condenser fan, compressor contactor and high pressure switch.
- The compressor features internal over temperature, pressure protection and total dipped hermetic motor.
- The outdoor coil provides low airflow resistance and efficient heat transfer. The coil is protected on all four sides by louvered panels.
- The Outdoor Units are fully charged from the factory for up to 15 feet of piping. T
