| BTU Cooling Rating | : | 24,000 Btu/hr |
| Compressor Stages | : | Single Stage |
| Compressor Type | : | Climatuff™ |
| Dimensions | : | 33 in H x 33 in W x 30 in D |
| Finish | : | Galvanized/Powder Painted |
| HSPF2 Range | : | 7.5 |
| Liquid Line (OD) | : | 3/8 in |
| Material | : | Steel |
| Max Fuse | : | 25 amps |
| Min SEER | : | 14.0 |
| Model | : | 4TWR4 |
| Number of Stages | : | Single |
| Phase | : | 1.0 ph |
| Refrigerant Type | : | R-410A |
| SEER Rating | : | 14.8 |
| SEER2 Range | : | 7.5 |
| Series | : | XR14 |
| Sound Level | : | 71 dBA |
| Tonnage | : | 2 |
| Tonnage | : | 2.0 Ton |
| Volts | : | 208/230 V |
The XR14 heat pump is TRANE® best value heat pump because it combines great prices with even better energy efficiency ratings. In the summer, you can count on this heat pump to cool your home reliably with a SEER2 rating of up to 14.8. When the system switches to heating mode in the winter efficiency isn't compromised, as the XR14 heat pump possesses an HSPF2 rating of up to 7.8. Both of these ratings make the system energy star qualified, plus it's quiet, durable and a great value, too.

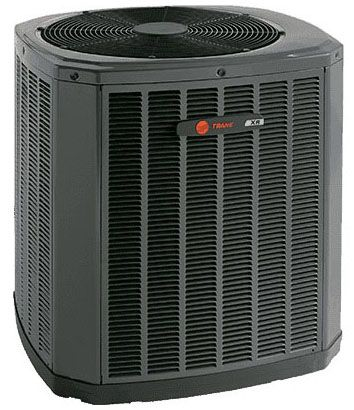

Trane XR14 4TWR4024N1000A, 2T, 14 SEER, 24,000 BTU, 7.5 HSPF, 208/230V, Single Stage Heat Pump
- Unit casing is constructed of heavy gauge, galvanized steel and painted with a weather-resistant powder paint finish on all louvered panels and the fan top panel.
- Refrigeration system controls include condenser fan, compressor contactor and high pressure switch.
- The compressor features internal over temperature, pressure protection and total dipped hermetic motor.
- The outdoor coil provides low airflow resistance and efficient heat transfer. The coil is protected on all four sides by louvered panels.
- The Outdoor Units are fully charged from the factory for up to 15 feet of piping. T
