| BTU Rating | : | 48,000 Btu/hr |
| Compressor Type | : | CLIMATUFF® Scroll |
| Dimensions | : | 51.435 in H x 37.25 in W x 34.25 in D |
| Face Area | : | 30.79 sq-ft |
| Finish | : | G60 Galvanized/Powder-Painted |
| Frequency Rating | : | 60 Hz |
| Liquid Line Size | : | 3/8 in |
| Material | : | Steel |
| Max Amps | : | 40.0 |
| Max Fuse | : | 45 amps |
| Model | : | 4TTX |
| Nominal Capacity | : | 4.0 tons |
| Number of Stages | : | Two Stage |
| Phase | : | 1.0 ph |
| Refrigerant Type | : | R-410A |
| SEER2 Range | : | 17 |
| Series | : | XL17 |
| Sound Level | : | 73 dBA |
| Suction Line Size | : | 7/8 in |
| Tonnage | : | 4.0 Ton |
| Voltage | : | 208/230 V |

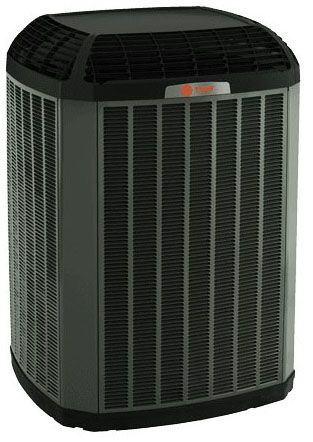

Trane XL17 - 4TTX7048E1000A, 4T, 17 SEER, 48,000 BTU, 208/230V, R410A, Two Stage Air Conditioner
- Internal compressor high/low pressure & temperature protection
- Glossy corrosion resistant finish tarpaulin gray cabinet with anthracite gray top
- Low sound with advanced PSC fan motor
- Climatuff 2-stage scroll compressor
- All aluminum spine fin coil
- Duratuff weather proof and rust proof base
- Quick-sess cabinet, service access and refrigerant connections with full coil protection
