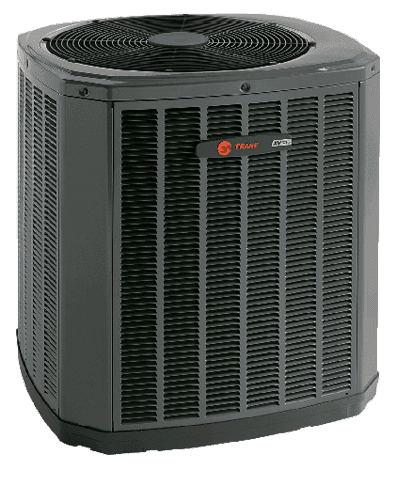

Trane 4TTV7X60A1000A XV17 R-410A Variable Speed Cooling, 208-230/1/60, 60K BTUH Nom Cap
Trane 4TTV7X60A1000A XV17 R-410A Variable Speed Cooling, 208-230/1/60, 60K BTUH Nom Cap
Manufacturer: Trane International Inc
Brand: TRANE®
Part #: 390349
MPN: 4TTV7X60A1000A
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
| AHRI Model Number | : | 4TTV7X60A1 |
| Additional Information | : | Tonnage: 5|Voltage: 208/230 V |
| Airflow CFM | : | 4757 |
| BTU Rating | : | 60,000 Btu/hr |
| Blower Diameter | : | 27.5 in |
| Charging Specification Subcooling | : | 10 deg F |
| Coil Face Area (Sq-Ft) | : | 30.8 |
| Coil Rows | : | 1.0 |
| Coil Type | : | Spine Fin |
| Compressor Insulation/Sound Blanket | : | Yes |
| Compressor LRA | : | 12 |
| Compressor RLA | : | 27.5 |
| Compressor Sump Heater Factory Installed | : | Yes |
| Compressor Type | : | Scroll |
| Elec Hertz | : | 60 Hz |
| Elec Phases | : | 1 ph |
| Elec Volts | : | 208/230 V |
| FPI | : | 24 |
| Fan Drive | : | Direct |
| Fan Motor FLA | : | 2.3 |
| Frequency (Hz) | : | 60 Hz |
| Full Load Amperage (FLA) | : | 2.3 |
| Full Octave Sound Power[dB] | : | 79.75 at 63 Hz, 66.7 at 125 Hz, 66 at 250 Hz, 64.45 at 500 Hz, 65.15 at 1000 Hz, 54.7 at 2000 Hz, 50.65 at 4000 Hz, 46.05 at 8000 Hz |
| Line Size - Liquid (in) | : | 3/8 |
| Line Size - Suction (In) | : | 7/8 |
| MCA | : | 46.1 |
| Max Amps | : | 50.0 |
| Max Fuse | : | 50 A |
| Max SEER2 | : | 17 |
| Min SEER2 | : | 17.0 |
| Model Number | : | 4TTV7 |
| Motor (RPM) | : | 200 to 1200 |
| Motor HP | : | 1-1/2 |
| Motor Power Rating | : | 200/230 V/1 Phase/60 Hz |
| Motor Speed | : | 200 to 1200 RPM |
| Nominal Capacity BTU Rating | : | 60,000 |
| Number of Compressor | : | 1 |
| Number of Fans | : | 1.0 |
| Number of Stages | : | Variable Speed |
| Outdoor Coil-Tube Size (In) | : | 3/8 |
| Phase | : | 1.0 ph |
| Power Supply | : | 208/230 V/1 Phase/60 Hz |
| Product Type | : | Split System Cooling |
| Refrigerant Charge lbs | : | 13.0 |
| Refrigerant Type | : | R-410A |
| SEER2 Range | : | 16.5 |
| Sound Level | : | 68.5 dBA |
| Sound Rating (dB) | : | 68.5 dBA |
| Stages | : | Variable |
| Standards | : | AHRI, UL, CUS |
| Start Kit Model Number (Field-Supplied) | : | No |
| Tonnage | : | 5.0 Ton |
| Voltage | : | 208/230 V |
