| BTU Rating | : | 36,000 Btu/hr |
| Compressor Type | : | CLIMATUFF® |
| Dimensions | : | 45 in H x 37 in W x 34 in D |
| EER Rating | : | 12.2 |
| Finish | : | Galvanized |
| Liquid Line Size | : | 3/8 in |
| Material | : | Steel |
| Max Amps | : | 30.0 |
| Model | : | 4TTR |
| Nominal Capacity | : | 3.0 tons |
| Number of Stages | : | Two Stage |
| Phase | : | 1.0 ph |
| Refrigerant Type | : | R-410A |
| SEER2 Range | : | 16 |
| Series | : | XR16 |
| Sound Level | : | 71 dBA |
| Tonnage | : | 3.0 Ton |
| Voltage | : | 208/230 V |

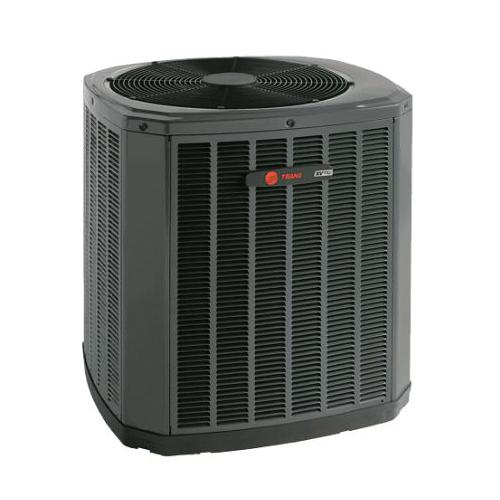

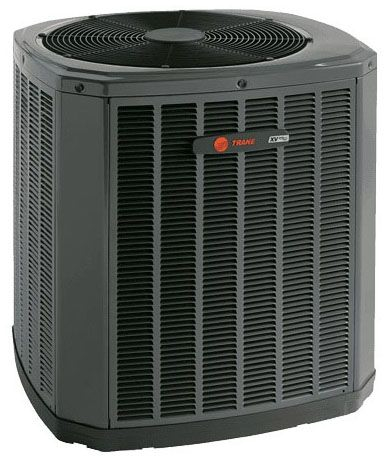

Trane XR16 - 4TTR6036N1000A, 3T, 16SEER, 36,000 BTU, 208/230V, R410A, Two Stage Air Conditioner
- Unit casing is constructed of heavy gauge, galvanized steel and painted with a weather-resistant powder paint finish.
- Refrigeration system controls include condenser fan, compressor contactor and low and high pressure switches. A
- The compressor features internal over temperature and pressure protection. Other features include: Centrifugal oil pump and low vibration and noise
- The outdoor coil provides low airflow resistance and efficient heat transfer. The coil is protected on all four sides by louvered panels
- This unit is designed to operate at outdoor ambient temperatures as high as 115°F. Cooling capacities are matched with a wide selection of air handlers and furnace coils that are AHRI certified.
