| BTU Rating | : | 18,000 Btu/hr |
| Compressor Type | : | CLIMATUFF® Scroll |
| Dimensions | : | 28-3/4 in H x 32-5/8 in W x 29-3/4 in D |
| Face Area | : | 16.25 sq-ft |
| Finish | : | Galvanized/Powder-Coated |
| Frequency Rating | : | 60 Hz |
| Liquid Line Size | : | 3/8 in |
| Material | : | Steel |
| Max Amps | : | 20.0 |
| Model | : | 4TTR |
| Number of Stages | : | Single Stage |
| Phase | : | 1.0 ph |
| Refrigerant Type | : | R-410A |
| SEER2 Range | : | 15 |
| Series | : | XR15 |
| Sound Level | : | 73 dBA |
| Suction Line Size | : | 3/4 in |
| Tonnage | : | 1.5 Ton |
| Voltage | : | 208/230 V |

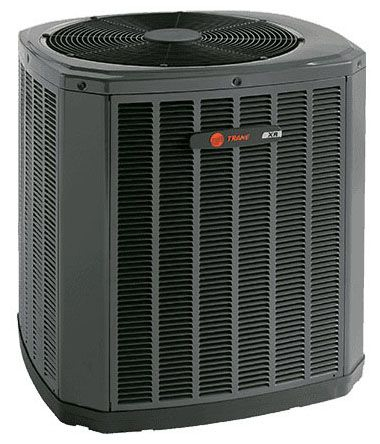

Trane XR15 - 4TTR5018N1000A, 1.5T, 15 SEER, 18,000 BTU, 208/20V, R410A, Single Stage Air Conditioner
- Unit casing is constructed of heavy gauge, galvanized steel and painted with a weather-resistant powder paint finish.
- Refrigeration system controls include condenser fan, compressor contactor and low and high pressure switches. A
- The compressor features internal over temperature and pressure protection. Other features include: Centrifugal oil pump and low vibration and noise
- The outdoor coil provides low airflow resistance and efficient heat transfer. The coil is protected on all four sides by louvered panels
- This unit is designed to operate at outdoor ambient temperatures as high as 115°F. Cooling capacities are matched with a wide selection of air handlers and furnace coils that are AHRI certified.
