| AHRI Model Number | : | 4TTR4060N1 |
| Additional Information | : | Refrigerant Charge lbs: 9|SEER: 14|SEER2: 13.8|Sound Rating (dB): 72|Split System Connection: Brazed|Stage 2 Capacity: 24,000|Stages: 1|Standards: C UL US LISTED|Start Kit Model Number (Field-Supplied): No|Table: SC-5-A|Tier: XR14|Tonnage: 5|Uncrated Dimensions (HxWxD): 45.13 x 37.25 x 34.25 in|Voltage: 208/230 V |
| Airflow CFM | : | 5230.0 |
| BTU Rating | : | 60,000 Btu/hr |
| Blower Diameter | : | 27.5 in |
| Blower Motor Type | : | Direct Drive |
| Charging Specification Subcooling | : | 10 deg F |
| Coil Face Area (Sq-Ft) | : | 30.8 |
| Coil Rows | : | 1.0 |
| Coil Type | : | Spine Fin |
| Compressor Insulation/Sound Blanket | : | No |
| Compressor LRA | : | 140.6 |
| Compressor RLA | : | 26.3 |
| Compressor Sump Heater Factory Installed | : | No |
| Compressor Type | : | Scroll |
| EER | : | 12.2 |
| Elec Hertz | : | 60 Hz |
| Elec Phases | : | 1 ph |
| Elec Volts | : | 208/230 V |
| FPI | : | 24.0 |
| Fan Drive | : | Direct |
| Fan Motor FLA | : | 0.97 |
| Fan Type | : | Propeller |
| For Use With | : | Start Component Use Baykskt263 |
| Frequency (Hz) | : | 60 Hz |
| Full Load Amperage (FLA) | : | 0.97 |
| Full Octave Sound Power[dB] | : | 81 at 63 Hz, 75 at 125 Hz, 71 at 250 Hz, 70 at 500 Hz, 68 at 1000 Hz, 63 at 2000 Hz, 58 at 4000 Hz, 53 at 8000 Hz |
| Insulation Material | : | Non-insulated |
| Line Size - Liquid (in) | : | 3/8 |
| Line Size - Suction (In) | : | 1-1/8 |
| MCA | : | 34 |
| Max Amps | : | 60.0 |
| Max SEER2 | : | 14.8 |
| Max SEER | : | 15.0 |
| Min SEER2 | : | 13.8 |
| Model | : | 4TTR |
| Motor (RPM) | : | 850.0 |
| Motor HP | : | 1/5 |
| Motor Power Rating | : | 200/230 V/1 Phase/60 Hz |
| Motor Speed | : | 850 rpm |
| Nominal Capacity BTU Rating | : | 60,000 |
| Nominal Capacity | : | 5.0 tons |
| Number of Compressor | : | 1.0 |
| Number of Fans | : | 1 |
| Number of Stages | : | Single Stage |
| Outdoor Coil-Tube Size (In) | : | 3/8 |
| Phase | : | 1.0 ph |
| Power Supply | : | 208/230 V/1 Phase/60 Hz |
| Product Type | : | Split System Cooling |
| Refrigerant Type | : | R-410A |
| SEER2 Range | : | 14 |
| Series | : | XR14 |
| Sound Level | : | 72 dBA |
| Tonnage | : | 5.0 Ton |
| Voltage | : | 208/230 V |

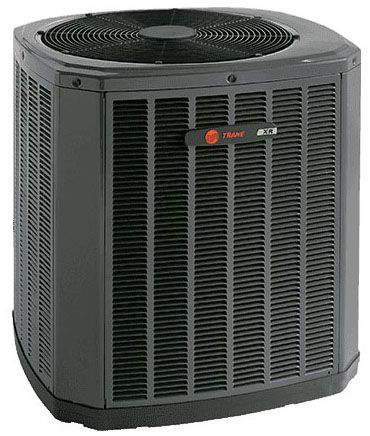

Trane XR14 - 4TTR4060N1000B, 5T, 14 SEER, 60,000 BTU, 208/230V, R410A, Single Stage Air Conditioner
- Unit casing is constructed of heavy gauge, galvanized steel and painted with a weather-resistant powder paint finish.
- Refrigeration system controls include condenser fan, compressor contactor and low and high pressure switches. A
- The compressor features internal over temperature and pressure protection. Other features include: Centrifugal oil pump and low vibration and noise
- The outdoor coil provides low airflow resistance and efficient heat transfer. The coil is protected on all four sides by louvered panels
- This unit is designed to operate at outdoor ambient temperatures as high as 115°F. Cooling capacities are matched with a wide selection of air handlers and furnace coils that are AHRI certified.
