| BTU Rating | : | 42,000 Btu/hr |
| Compressor Type | : | CLIMATUFF® |
| Dimensions | : | 37 in H x 34 in W x 37 in D |
| Finish | : | Galvanized |
| Liquid Line Size | : | 3/8 in |
| Material | : | Steel |
| Max Amps | : | 25.0 |
| Max Fuse | : | 35 amps |
| Model | : | 4TTR |
| Number of Stages | : | Single Stage |
| Phase | : | 1.0 ph |
| Refrigerant Type | : | R-410A |
| SEER2 Range | : | 14 |
| Series | : | XR14 |
| Sound Level | : | 72 dBA |
| Tonnage | : | 3.5 Ton |
| Voltage | : | 208/230 V |
The XR14 air conditioner, also known as TRANE® best value air conditioner, is a great investment for homeowners. The XR14 is energy STAR qualified with a SEER2 rating of up to 14.8, meaning this system meets the strict energy-efficiency standards set by the federal government and can cool your home reliably. On top of that, this single stage air conditioner is quiet and durable, giving buyers the best of all HVAC worlds. Talk to your local HVAC dealer today to learn more about all the xr14 air conditioner has to offer.

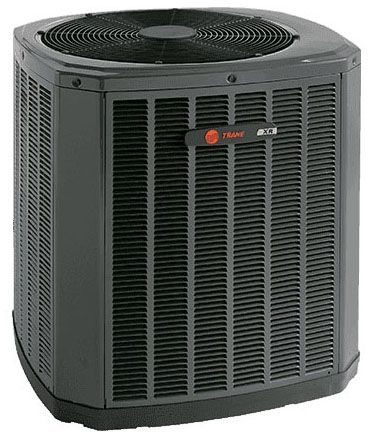

Trane XR14 - 4TTR4042N1000A, 3.5T, 14 SEER, 42,000 BTU, 208/230V, R410A, Single Stage Air Conditioner
- Unit casing is constructed of heavy gauge, galvanized steel and painted with a weather-resistant powder paint finish.
- Refrigeration system controls include condenser fan, compressor contactor and low and high pressure switches. A
- The compressor features internal over temperature and pressure protection. Other features include: Centrifugal oil pump and low vibration and noise
- The outdoor coil provides low airflow resistance and efficient heat transfer. The coil is protected on all four sides by louvered panels
- This unit is designed to operate at outdoor ambient temperatures as high as 115°F. Cooling capacities are matched with a wide selection of air handlers and furnace coils that are AHRI certified.
