| BTU Rating | : | 36,000 Btu/hr |
| CFM Rating | : | 1,200 cfm |
| Coil Type | : | Cased-A Coil |
| Configuration | : | Dedicated Upflow, Convertible to Horizontal Left |
| Enclosure Type | : | Cased |
| Material | : | Aluminum |
| Metering Device | : | Non-Bleed TXV |
| Model Number | : | 4PXCU |
| Refrigerant Type | : | R-410A |
| Series | : | 4PXC |
| Tonnage | : | 3.0 Ton |
| Width | : | 17.5 in |

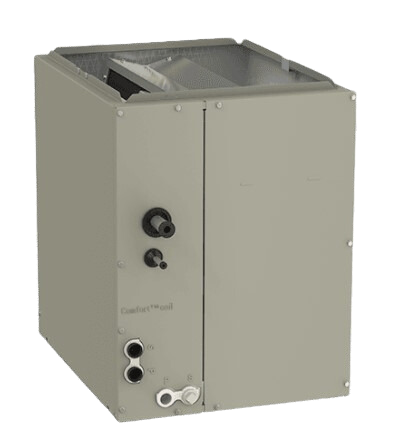

Trane - 4PXCBU36BS3HAC, 1.5-4T, R410A, 36,000 BTU, Multi Position with Kit, Heat Pump Cased A-Coil with TXV
- The dedicated Upflow and Downflow coils are designed for cooling and heat pump applications. The coil uses 3/8" seamless aluminum tubing mechanically bonded to aluminum plate fin.
- Refrigerant for the PXC is controlled with a factory installed Non-Bleed TXV refrigerant control. Refrigerant connections are brazed fittings.
- The coil cabinet has a removable front and interior access panel for evaporator coil entering air surface cleaning.
- Upflow coils can be converted to horzontal left and downflow coils can be converted to horizontal right with optional kit purchased separately
- coils are A.H.R.I. certified with Trane and American Standard's matching condensing units.
