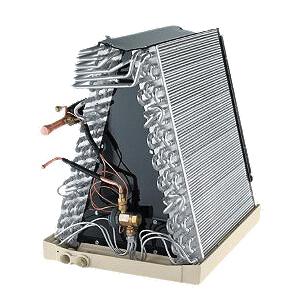

TRANE® Comfort™ 4PXA Series 4PXACU48BS3HAA Heat Pump/Cooling Indoor Coil, Evaporator, Plate Fin Coil, 48000 Btu
TRANE® Comfort™ 4PXA Series 4PXACU48BS3HAA Heat Pump/Cooling Indoor Coil, Evaporator, Plate Fin Coil, 48000 Btu
| Additional Information | : | 3/8 in Tube, Non-Bleed TXV Control, 3/4 in NPT Drain |
| BTU Rating | : | 48,000 Btu/hr |
| CFM Rating | : | 1,600 cfm |
| Coil Rating | : | 14 FPI |
| Coil Type | : | Uncased-A Coil |
| Configuration | : | Upflow |
| Connection Size | : | 7/8 x 3/8 in |
| Connection Type | : | Brazed |
| Dimensions | : | 30.65 in H x 24 in W x 26.5 in D |
| Enclosure Type | : | Uncased |
| Face Area | : | 6 sq-ft |
| Material | : | Aluminum |
| Metering Device | : | Non-Bleed TXV |
| Nominal Capacity | : | 2.0-5.0 ton |
| Number of Rows | : | 3 |
| Refrigerant Type | : | R-410A |
| Series | : | 4PXA |
| Tonnage | : | 4.0 Ton |
| Width | : | 21.0 in |
The uncased, 1.5 to 5 ton 4PXA coil is designed for upflow installations. Also known as an evaporator coil or an indoor coil, this piece is the unsung hero of your heating or cooling system. Our all-aluminum coils are designed to work with your outdoor condensing unit or furnace. They are matched in size, efficiency and capacity to ensure optimal performance of your home comfort system. The coil serves as a heat exchanger working with your heating system in the winter and your cooling system in the summer featuring a new, enhanced fin design for greater heat transfer.
TRANE® Comfort™ Heat Pump/Cooling Indoor Coil, Series: 4PXA Series, 2 to 5 ton Nominal Capacity, 48000 Btu, A-Coil, Uncased Upflow, 340 to 1915 cfm, R-410A Refrigerant, 14 FPI Coil, Evaporator, Plate Fin Coil, 7/8 x 3/8 in Connection, Brazed Connection, 3 Rows, 6 sq-ft Face Area, Aluminum, 30.65 in H x 24 in W x 26.5 in D, Additional Information: 3/8 in Tube, Non-Bleed TXV Control, 3/4 in NPT Drain
