Taco Comfort Solutions® SF-075T Ball Valve and Freedom Swivel Flange, 3/4 in, NPT, Brass, 150 psi
Taco Comfort Solutions® SF-075T Ball Valve and Freedom Swivel Flange, 3/4 in, NPT, Brass, 150 psi
| Body Material | : | Brass |
| Connection Type | : | NPT |
| Dimensions | : | 2-1/4 in L |
| Handle Material | : | Steel/Vinyl |
| Nominal Size | : | 3/4 in |
| Operator Type | : | Lever Handle |
| Pressure Rating | : | 150 psi |
| Seal Material | : | PTFE |
| Seat Material | : | PTFE |
| Stem Material | : | Brass |
| Temperature Rating | : | 240 deg F |

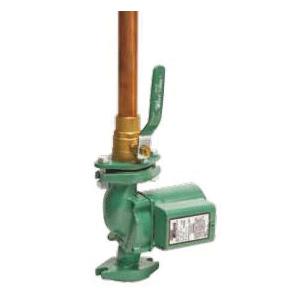

Taco new shut-off swivel flange combines a full port, ball valve and companion flange to isolate system circulators for easy removal and service, without draining the system. Simplify your next 00 circulator installation while saving material and labor costs. Solid brass uni-body construction, available in 1/2 to 1-1/2 in NPT or sweat connections. The swivel flange provides easier installation and positioning of the pump and lever handle in the most convenient location.
Taco Comfort Solutions® Ball Valve and Freedom Swivel Flange, 3/4 in Nominal, NPT Connection, 150 psi, Lever Handle Operator, Brass Body, PTFE Seat, Brass Stem, PTFE Seal, Steel/Vinyl Handle, 240 deg F, 2-1/4 in L
- Is a combination full port shut-off ball valve and swivel companion flange
- Easy 1/4 turn open/close operation
- Positive shut-off, leak-free design
- Swivel flange allows 360 deg rotation
- High-quality teflon seats
- Full port ball valve for unrestricted flow
- The simple quarter-turn, lever handle operation allows for easy isolation, removal and service of circulators without draining the system
- Each flange set includes bolts and nuts
- Epoxy powder-coated steel flange
- For Taco circulators
