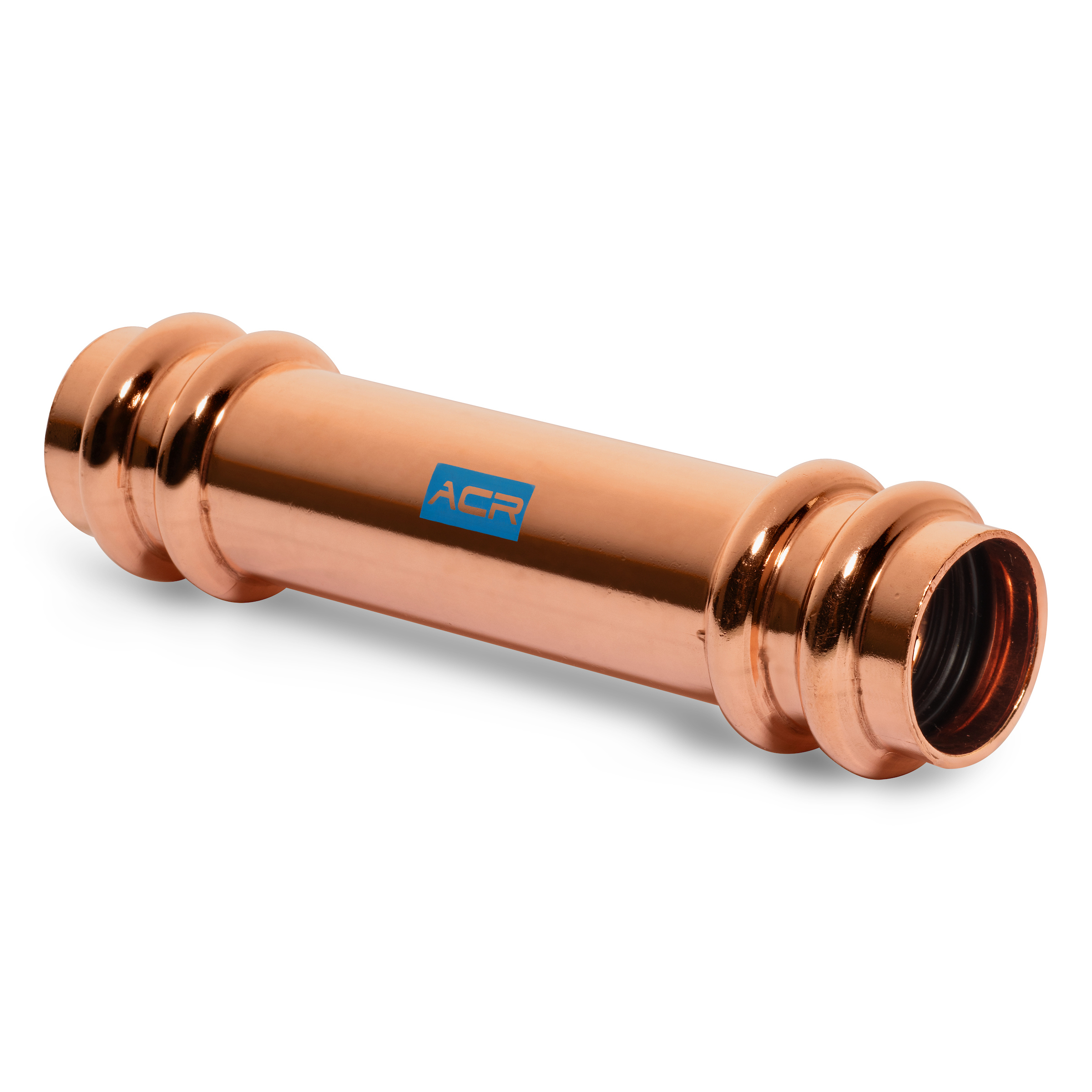

Streamline Streamline ACR Press RP01948 Extended No-Stop Coupling, Press Connection, 3/8" Connection Size, ACR Press Connection, Copper, 700 PSI (Maximum Operating Pressure), -40-250 °F (Continuous Operating), For Use With ACR Copper Tube, Type L Copper Tube, Type K Copper Tube, Hard Copper Tube, Soft Copper Tube, Air Conditioning, Heat Pump, VRF Systems, VRV Systems, Light Commercial Refrigeration, Non-Potable Water, Compressed Air, Technical Gases, Nitrogen, Oxygen, Argon, Carbon Dioxide, Hydrogen, Ethylene Glycol, Inert Gases, R-125 Refrigerant, R-134a Refrigerant, R-32 Refrigerant, R-404A Refrigerant, R-407A Refrigerant, R-407C Refrigerant, R-407F Refrigerant, R-407H Refrigerant, R-410A Refrigerant, R-417A Refrigerant, R-421A Refrigerant, R-422B Refrigerant, R-422D Refrigerant, R-427A Refrigerant, R-438A Refrigerant, R-444A Refrigerant, R-447A Refrigerant, R-447B Refrigerant, R-448A Refrigerant, R-449A Refrigerant, R-450A Refrigerant, R-452A Refrigerant, R-452B Refrigerant, R-452C Refrigerant, R-454A Refrigerant, R-454B Refrigerant, R-454C Refrigerant, R-457A Refrigerant, R-459A Refrigerant, R-507A Refrigerant, R-513A Refrigerant, R-513B Refrigerant, R-718 Refrigerant, R-1234ze Refrigerant, R-1234yf Refrigerant, R-290 Refrigerant, R-600A Refrigerant, Mineral Oil, POE Oil, PVE Oil, PAO Oil, PAG Oil, AB Oil
Streamline Streamline ACR Press RP01948 Extended No-Stop Coupling, Press Connection, 3/8" Connection Size, ACR Press Connection, Copper, 700 PSI (Maximum Operating Pressure), -40-250 °F (Continuous Operating), For Use With ACR Copper Tube, Type L Copper Tube, Type K Copper Tube, Hard Copper Tube, Soft Copper Tube, Air Conditioning, Heat Pump, VRF Systems, VRV Systems, Light Commercial Refrigeration, Non-Potable Water, Compressed Air, Technical Gases, Nitrogen, Oxygen, Argon, Carbon Dioxide, Hydrogen, Ethylene Glycol, Inert Gases, R-125 Refrigerant, R-134a Refrigerant, R-32 Refrigerant, R-404A Refrigerant, R-407A Refrigerant, R-407C Refrigerant, R-407F Refrigerant, R-407H Refrigerant, R-410A Refrigerant, R-417A Refrigerant, R-421A Refrigerant, R-422B Refrigerant, R-422D Refrigerant, R-427A Refrigerant, R-438A Refrigerant, R-444A Refrigerant, R-447A Refrigerant, R-447B Refrigerant, R-448A Refrigerant, R-449A Refrigerant, R-450A Refrigerant, R-452A Refrigerant, R-452B Refrigerant, R-452C Refrigerant, R-454A Refrigerant, R-454B Refrigerant, R-454C Refrigerant, R-457A Refrigerant, R-459A Refrigerant, R-507A Refrigerant, R-513A Refrigerant, R-513B Refrigerant, R-718 Refrigerant, R-1234ze Refrigerant, R-1234yf Refrigerant, R-290 Refrigerant, R-600A Refrigerant, Mineral Oil, POE Oil, PVE Oil, PAO Oil, PAG Oil, AB Oil
| Connection Size 1 | : | 3/8 " |
| Connection Size 2 | : | 3/8 " |
| Connection Type 1 | : | ACR Press |
| Connection Type 2 | : | ACR Press |
| Connection Type | : | Press |
| Dimension Standards | : | ASME B16.22, ASME B16.51 |
| Dimensions | : | 4.13" L x 0.63" H x 0.63" W |
| Fitting Type | : | Extended No-Stop Coupling |
| For Use With | : | ACR Copper Tube, Type L Copper Tube, Type K Copper Tube, Hard Copper Tube, Soft Copper Tube, Air Conditioning, Heat Pump, VRF Systems, VRV Systems, Light Commercial Refrigeration, Non-Potable Water, Compressed Air, Technical Gases, Nitrogen, Oxygen, Argon, Carbon Dioxide, Hydrogen, Ethylene Glycol, Inert Gases, R-125 Refrigerant, R-134a Refrigerant, R-32 Refrigerant, R-404A Refrigerant, R-407A Refrigerant, R-407C Refrigerant, R-407F Refrigerant, R-407H Refrigerant, R-410A Refrigerant, R-417A Refrigerant, R-421A Refrigerant, R-422B Refrigerant, R-422D Refrigerant, R-427A Refrigerant, R-438A Refrigerant, R-444A Refrigerant, R-447A Refrigerant, R-447B Refrigerant, R-448A Refrigerant, R-449A Refrigerant, R-450A Refrigerant, R-452A Refrigerant, R-452B Refrigerant, R-452C Refrigerant, R-454A Refrigerant, R-454B Refrigerant, R-454C Refrigerant, R-457A Refrigerant, R-459A Refrigerant, R-507A Refrigerant, R-513A Refrigerant, R-513B Refrigerant, R-718 Refrigerant, R-1234ze Refrigerant, R-1234yf Refrigerant, R-290 Refrigerant, R-600A Refrigerant, Mineral Oil, POE Oil, PVE Oil, PAO Oil, PAG Oil, AB Oil |
| Material Construction | : | C12200 Copper (Body), HNBR (Sealing Rings) |
| Material | : | Copper |
| Pressure Rating | : | 700 PSI (Maximum Operating Pressure) |
| Series | : | Streamline ACR Press |
| Temperature Rating | : | -40-250 °F (Continuous Operating) |
Streamline® is the best known, most trusted name in the industry—with a nearly 100-year history of providing the best-in-class products you need to work more efficiently and productively. The ACR Press System is the latest example of the industry-leading innovation and commitment to customer needs that make Streamline® the standard for excellence.
Streamline Extended No-Stop Coupling, Model: Streamline ACR Press, Press Connection, 3/8" Connection Size, ACR Press Connection, Copper, 700 PSI (Maximum Operating Pressure), -40-250 °F (Continuous Operating), For Use With ACR Copper Tube, Type L Copper Tube, Type K Copper Tube, Hard Copper Tube, Soft Copper Tube, Air Conditioning, Heat Pump, VRF Systems, VRV Systems, Light Commercial Refrigeration, Non-Potable Water, Compressed Air, Technical Gases, Nitrogen, Oxygen, Argon, Carbon Dioxide, Hydrogen, Ethylene Glycol, Inert Gases, R-125 Refrigerant, R-134a Refrigerant, R-32 Refrigerant, R-404A Refrigerant, R-407A Refrigerant, R-407C Refrigerant, R-407F Refrigerant, R-407H Refrigerant, R-410A Refrigerant, R-417A Refrigerant, R-421A Refrigerant, R-422B Refrigerant, R-422D Refrigerant, R-427A Refrigerant, R-438A Refrigerant, R-444A Refrigerant, R-447A Refrigerant, R-447B Refrigerant, R-448A Refrigerant, R-449A Refrigerant, R-450A Refrigerant, R-452A Refrigerant, R-452B Refrigerant, R-452C Refrigerant, R-454A Refrigerant, R-454B Refrigerant, R-454C Refrigerant, R-457A Refrigerant, R-459A Refrigerant, R-507A Refrigerant, R-513A Refrigerant, R-513B Refrigerant, R-718 Refrigerant, R-1234ze Refrigerant, R-1234yf Refrigerant, R-290 Refrigerant, R-600A Refrigerant, Mineral Oil, POE Oil, PVE Oil, PAO Oil, PAG Oil, AB Oil, ASME B16.22, ASME B16.51 Dimension Standards, 4.13" L x 0.63" H x 0.63" W Dimensions, C12200 Copper (Body), HNBR (Sealing Rings)
- Constructed from durable C12200 copper with engineered HNBR sealing rings.
- Features industry-leading Two Ring Advanced Press (T.R.A.P.) Technology with DualSealâ„¢ Ring Design for superior sealing.
- Rated for a maximum operating pressure of 700 PSI and continuous operating temperatures from -40°F to 250°F.
- Approved for use with Type ACR, L, and K hard or soft copper tubing.
- Compatible with R-410A and a wide range of other common refrigerants and oils.
- Designed for use with leading full-size press tools and proprietary Streamline® ACR Press Jaws from Milwaukee® Tool.
- UL Listed and meets ASME B16.22 and B16.51 standards.
- Backed by a 10-year limited warranty against defects in material and workmanship.
