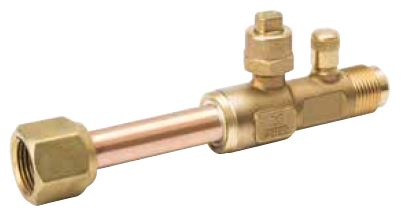

Streamline CYCLEMASTER Multi Split A 18946 Ball Valve, 3/8" Nominal Size, Unibody Female, Male SAE Flare, Flare Port Type, Male x Female Flare, Refrigerant (CFC, HCFC, HFC, HFO), Oils Media, 789.7 PSI, -40-300 °F
Streamline CYCLEMASTER Multi Split A 18946 Ball Valve, 3/8" Nominal Size, Unibody Female, Male SAE Flare, Flare Port Type, Male x Female Flare, Refrigerant (CFC, HCFC, HFC, HFO), Oils Media, 789.7 PSI, -40-300 °F
| Body Material | : | Brass |
| Connection Type | : | Male x Female Flare |
| Disc Material | : | Chrome Plated |
| Domestic/Import | : | Domestic |
| End Type | : | Unibody Female, Male SAE Flare |
| Flow Rate | : | 4 Cv |
| Inlet to Outlet Length | : | 5-43/50 " |
| Media | : | Refrigerant (CFC, HCFC, HFC, HFO), Oils |
| Model | : | A 18946 |
| Nominal Size | : | 3/8 " |
| Number of Ports/Ways | : | 2 |
| Port Type | : | Flare |
| Pressure Rating | : | 789.7 PSI |
| Seal Material | : | MCM |
| Series | : | CYCLEMASTER Multi Split |
| Softgoods Material | : | MCM Seals / Dual O-Ring Seals |
| Temperature Rating | : | -40-300 °F |
The Streamline CYCLEMASTER® multi-split ball valve is designed for reliable flow control in refrigeration systems, particularly multi-split A/C and heat pump units. It features a full port, unibody brass construction for durability and minimal leak potential, along with flare connections (3/8" Male Flare x Female Flare) that allow for easier installation and service.The environmentally friendly, chromium-plated ball reduces wear and extends seal life. This valve utilizes exclusive MCMâ„¢ seals for industry-leading longevity and low leak rates, ensuring dependable performance in demanding applications. It operates effectively across a wide temperature range (-40°F to 300°F) and is rated for pressures up to 775 psig.
Streamline Ball Valve, Model: CYCLEMASTER Multi Split, 3/8" Nominal Size, Unibody Female, Male SAE Flare, Flare Port Type, Male x Female Flare, Refrigerant (CFC, HCFC, HFC, HFO), Oils Media, 789.7 PSI, -40-300 °F, 2-Way, Brass, 4 Cv, MCM, MCM Seals / Dual O-Ring Seals, Chrome Plated, 5-43/50" Inlet To Outlet Length, Domestic
- Engineered for multi-split air conditioning and heat pump systems.
- Features 3/8" Male Flare x Female Flare connections for straightforward installation and servicing.
- Full port, unibody brass design ensures maximum flow and reduces potential leak points.
- Employs a rupture-proof encapsulated stem and exclusive MCMâ„¢ seals for long-term reliability.
- Handles operating pressures up to 775 psig and temperatures ranging from -40°F to 300°F.
- Suitable for use with CFC, HCFC, HFC, and HFO refrigerants and associated oils.
- UL/cUL Listed for safety and compliance.
