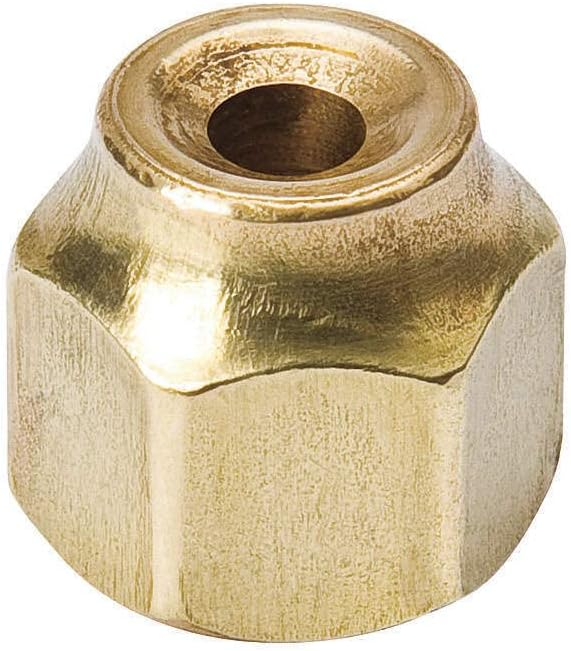

Streamline NS4-10 A 05157 Flare Nut, 5/8" Connection Size 1, 45° Flare Connection Type 1, Short Forged Flare Nut, 700 PSI, Forged Brass, UL Listed (SA9003), SAE J513, MS-35867 Thru MS-35873, MS-35919, MS-35926, MS-16993, 1-1/16" Hex Size
Streamline NS4-10 A 05157 Flare Nut, 5/8" Connection Size 1, 45° Flare Connection Type 1, Short Forged Flare Nut, 700 PSI, Forged Brass, UL Listed (SA9003), SAE J513, MS-35867 Thru MS-35873, MS-35919, MS-35926, MS-16993, 1-1/16" Hex Size
| Color | : | Brass |
| Connection Size 1 | : | 5/8 " |
| Connection Type 1 | : | 45° Flare |
| Connection Type | : | 45° Flare |
| Dimension Standards | : | UL Listed (SA9003), SAE J513, MS-35867 Thru MS-35873, MS-35919, MS-35926, MS-16993 |
| Fitting Type | : | Short Forged Flare Nut |
| For Use With | : | Copper Tube, CFC Refrigerants, HCFC Refrigerants, HFC Refrigerants |
| Hex Size | : | 1-1/16 " |
| Material Construction | : | Forged Brass |
| Material | : | Forged Brass |
| Pressure Rating | : | 700 PSI |
| Series | : | NS4-10 |
| Tube OD | : | 5/8 " |
This Streamline® 5/8" short forged flare nut is constructed from durable forged brass, reducing the risk of leaks caused by porosity. It is precisely machined for secure, leak-proof connections and rated for a maximum working pressure of 700 PSI. The nut conforms to SAE J513 refrigeration fitting standards and relevant military specifications, ensuring reliable performance in various HVAC/R applications.
Streamline Flare Nut, Model: NS4-10, 5/8" Connection Size 1, 45° Flare Connection Type 1, Short Forged Flare Nut, 700 PSI, Forged Brass, UL Listed (SA9003), SAE J513, MS-35867 Thru MS-35873, MS-35919, MS-35926, MS-16993, 1-1/16" Hex Size, For Use With Copper Tube, CFC Refrigerants, HCFC Refrigerants, HFC Refrigerants, Brass
- Constructed from forged brass for durability and leak prevention.
- Rated for a maximum working pressure of 700 PSI.
- Precision machined to ensure tight, leak-proof flare connections.
- Features a smooth interior finish for unrestricted flow and reduced pressure drop.
- UL Listed (File No. SA9003) and meets SAE J513 standards.
- Compatible with 5/8" OD copper tubing and CFC, HCFC, HFC refrigerants.
- Made in the USA.
