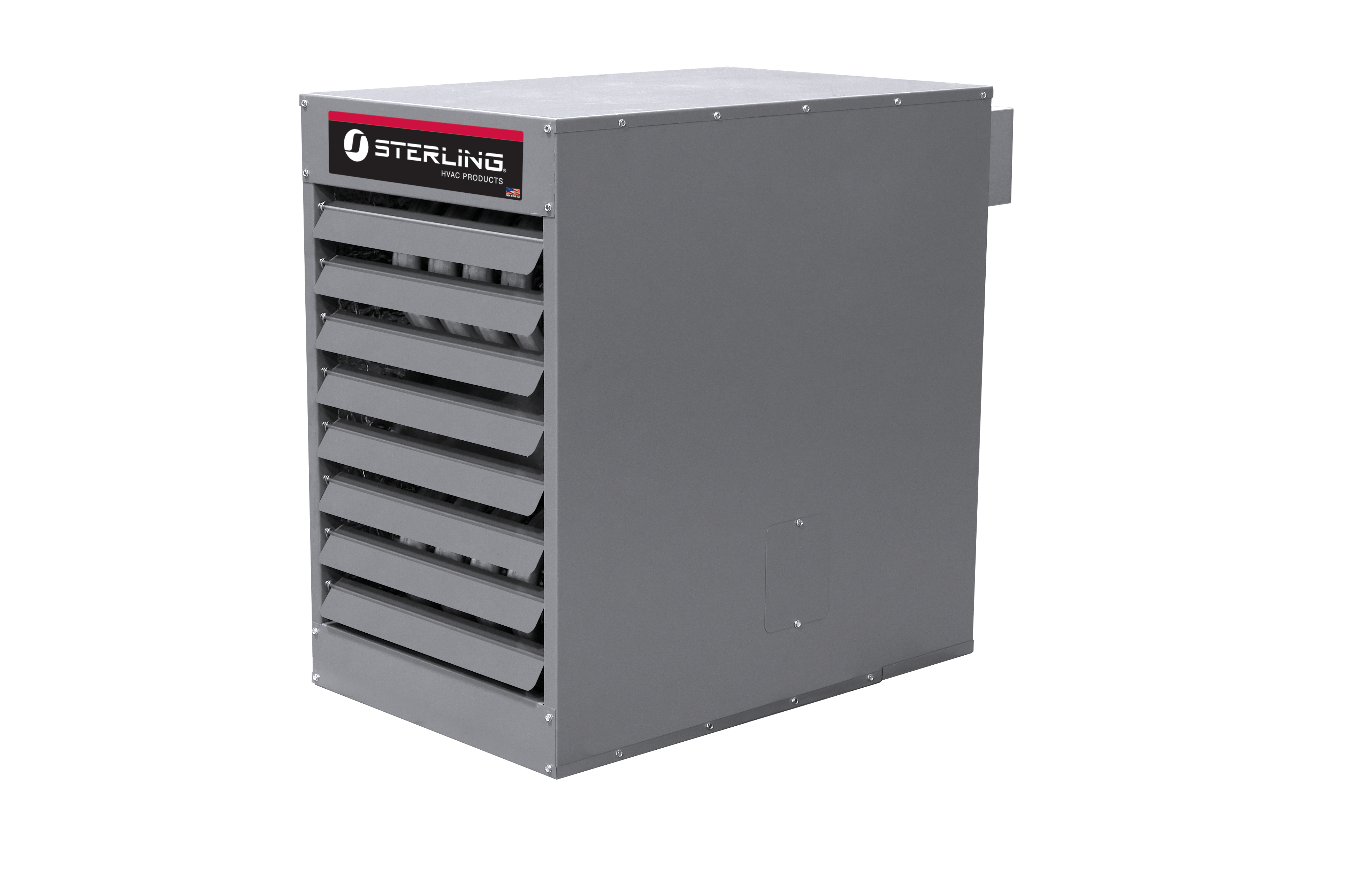

Sterling HVAC XF Series XF175A1NS1110 Propeller Unit Heater, 175,000 BTU/hr, Natural Gas, 115 V, 250 W (Motor), NPT, 1/2" (Gas Inlet) Connection Size, 1 Phase
Sterling HVAC XF Series XF175A1NS1110 Propeller Unit Heater, 175,000 BTU/hr, Natural Gas, 115 V, 250 W (Motor), NPT, 1/2" (Gas Inlet) Connection Size, 1 Phase
| AFUE Rating | : | 83 % |
| Amperage Rating | : | 8.0 A (FLA), 9.5 A (MCA) |
| BTU Rating | : | 175,000 BTU/hr |
| CFM Rating | : | 2,850 CFM |
| Connection Size | : | 1/2" (Gas Inlet) |
| Connection Type | : | NPT |
| Dimensions | : | 33-3/4" H x 37-1/4" W x 43-1/2" D |
| Domestic/Import | : | Domestic |
| Drive Type | : | Propeller |
| Efficiency | : | 83% (Thermal) |
| Finish | : | Baked Enamel |
| Frequency Rating | : | 60 Hz |
| Fuel Type | : | Natural Gas |
| HP Rating | : | 1/3 HP |
| Ignition Type | : | Direct Spark |
| Material | : | Steel (Cabinetry), Aluminized Steel (Heat Exchanger) |
| Model | : | XF175A1NS1110 |
| Motor Type | : | PSC, ODP |
| Mounting Type | : | Suspended Mount |
| Number of Fans | : | 1 |
| Number of Stages | : | 1 |
| Phase | : | 1 |
| Power Rating | : | 250 W (Motor) |
| Rotational Speed | : | 1,050 RPM |
| Temperature Rating | : | 104 °F (Maximum) |
| Vent Size | : | 5 " |
| Voltage Rating | : | 115 V |
The Sterling XF series propeller-style tubular gas-fired unit heaters offer a highly efficient and extremely durable alternative to traditional clam shell designs. These units combine the latest tubular heat exchanger and in-shot burner technology, delivering the quality and reliability expected from Sterling, with 83% thermal (combustion) efficiency certified by ETL.Notably, the XF unit heater is designed for convertible venting, allowing installation in either standard or separated combustion configurations without modification. For separated combustion, used in environments with dust, corrosive conditions, high humidity, or negative pressure, combustion air piping connects to rear inlet collars, enclosing the burners, spark ignitor, and flue system.
Sterling HVAC Propeller Unit Heater, Model: XF Series, 175,000 BTU/hr, Natural Gas, 115 V, 250 W (Motor), NPT, 1/2" (Gas Inlet) Connection Size, 1 Phase, 83% (Thermal) Efficiency, Direct Spark, 5" Vent Size, Suspended Mount, 2,850 CFM, 1 Fan(s), PSC, ODP, 1/3 HP, 1,050 RPM, Propeller, Steel (Cabinetry), Aluminized Steel (Heat Exchanger), 33-3/4" H x 37-1/4" W x 43-1/2" D Dimensions, Baked Enamel Finish, Domestic, 60 Hz, 104 °F (Maximum) Temperature Rating, 8.0 A (FLA), 9.5 A (MCA), 1
- Achieves 83% thermal efficiency for cost-effective heating.
- Features a durable 20-gauge aluminized steel tubular heat exchanger design.
- Installs easily in either standard or separated combustion configurations without unit modification.
- Equipped with a reliable direct spark ignition system for fast heat delivery.
- Includes a 10-year warranty covering the heat exchanger, flue collector, and burners.
- Allows flexible installation with ETL certification for vertical or horizontal Category I and III venting.
