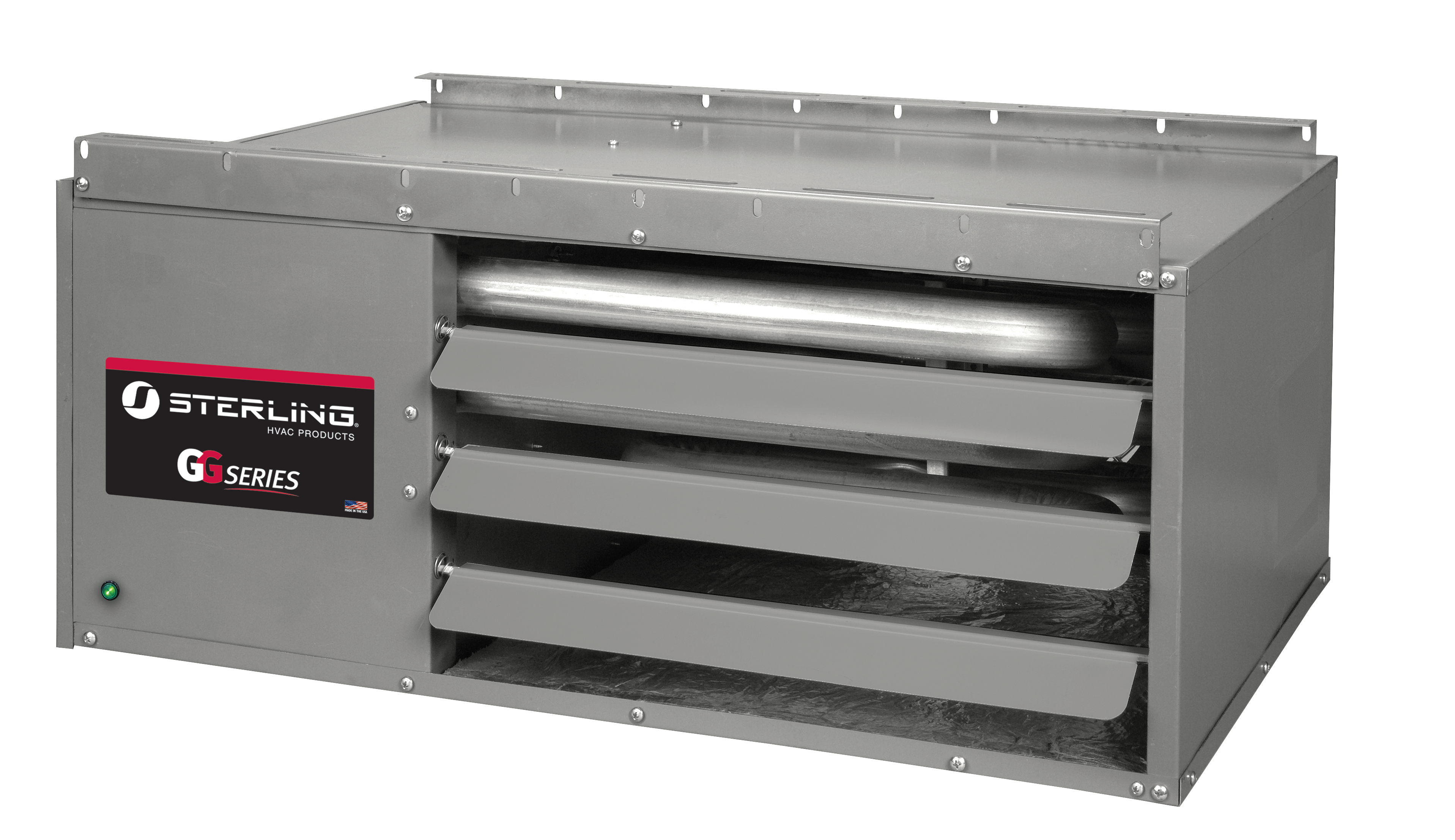

Sterling HVAC GG Series Low Profile Unit Heater, 105,000 BTU/hr (Input), 86,100 BTU/hr (Output), Natural Gas, 115/120 V, 75 W (Motor), NPT, 1/2" Connection Size, 1 Phase
Sterling HVAC GG Series Low Profile Unit Heater, 105,000 BTU/hr (Input), 86,100 BTU/hr (Output), Natural Gas, 115/120 V, 75 W (Motor), NPT, 1/2" Connection Size, 1 Phase
| Amperage Rating | : | 6.4 A |
| BTU Rating | : | 105,000 BTU/hr (Input), 86,100 BTU/hr (Output) |
| CFM Rating | : | 1,300 CFM |
| Connection Size | : | 1/2 " |
| Connection Type | : | NPT |
| Dimensions | : | 23-9/16" H x 30" W x 26-3/8" D |
| Domestic/Import | : | Domestic |
| Efficiency | : | 82% (Thermal) |
| Fan Size | : | 16" Diam |
| Finish | : | Baked Enamel |
| Frequency Rating | : | 60 Hz |
| Fuel Type | : | Natural Gas |
| HP Rating | : | 1/10 HP |
| Ignition Type | : | Direct Spark |
| Material | : | 20 Gauge Aluminized Steel (Heat Exchanger), 321 Stainless Steel (Burner Box), 20 Gauge Steel (Jacket Panels) |
| Model | : | GG105A1NSA11 |
| Motor Type | : | ODP, SP |
| Mounting Type | : | Ceiling Mount, Wall Mount, Horizontal |
| Number of Fans | : | 1 |
| Number of Stages | : | 1 |
| Phase | : | 1 |
| Power Rating | : | 75 W (Motor) |
| Rotational Speed | : | 1,050 RPM |
| Vent Size | : | 4" (Unit Connection), 5" (Separated Combustion Option) |
| Voltage Rating | : | 115/120 V |
Take back the garage for year-round use. GG Series gas-fired, low-profile garage unit heaters are both residential and commercial outbuilding certified (non-occupied spaces only) in seven configurations to suit every area. Quiet, thermostat-controlled and easily installed–they stay out of the way and let you keep working comfortably. Units are ready for standard or separated combustion all in one unit.Optional combustion air inlet kits available for concentric venting. All GG Series units are covered by a limited 10-year heat exchanger warranty and are ETL certified for residential garage installations. Units come standard with LP gas conversion kits, and everything needed for applications in dusty or damp environments.
Sterling HVAC Low Profile Unit Heater, Model: GG Series, 105,000 BTU/hr (Input), 86,100 BTU/hr (Output), Natural Gas, 115/120 V, 75 W (Motor), NPT, 1/2" Connection Size, 1 Phase, 82% (Thermal) Efficiency, Direct Spark, 4" (Unit Connection), 5" (Separated Combustion Option) Vent Size, Ceiling Mount, Wall Mount, Horizontal, 1,300 CFM, 16" Diam Fan Size, 1 Fan(s), ODP, SP, 1/10 HP, 1,050 RPM, 20 Gauge Aluminized Steel (Heat Exchanger), 321 Stainless Steel (Burner Box), 20 Gauge Steel (Jacket Panels), 23-9/16" H x 30" W x 26-3/8" D Dimensions, Baked Enamel Finish, Domestic, 60 Hz, 6.4 A, 1
- Delivers 82% thermal efficiency for cost-effective heating.
- Certified for residential garage installations as well as commercial/industrial use (ANSI Z83.8).
- Supports standard power venting or field conversion to separated combustion for versatile installation.
- Features reliable direct spark ignition for quick and consistent heat delivery.
- Constructed with a durable 20-gauge aluminized steel tubular heat exchanger and a 321 stainless steel burner box.
- Includes an LP conversion kit standard for easy field switching from natural gas.
- Backed by a 10-year limited warranty on the heat exchanger.
