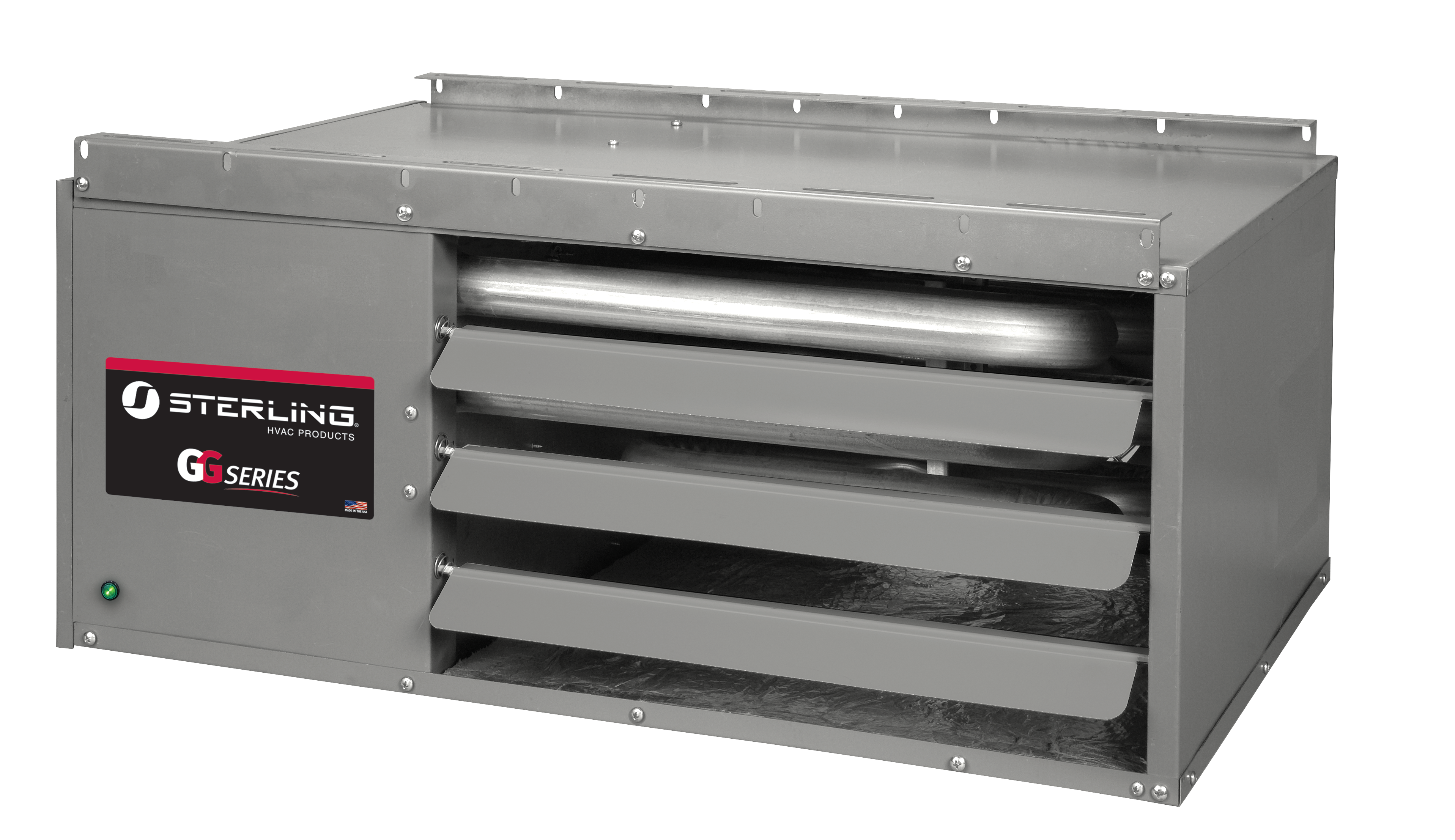

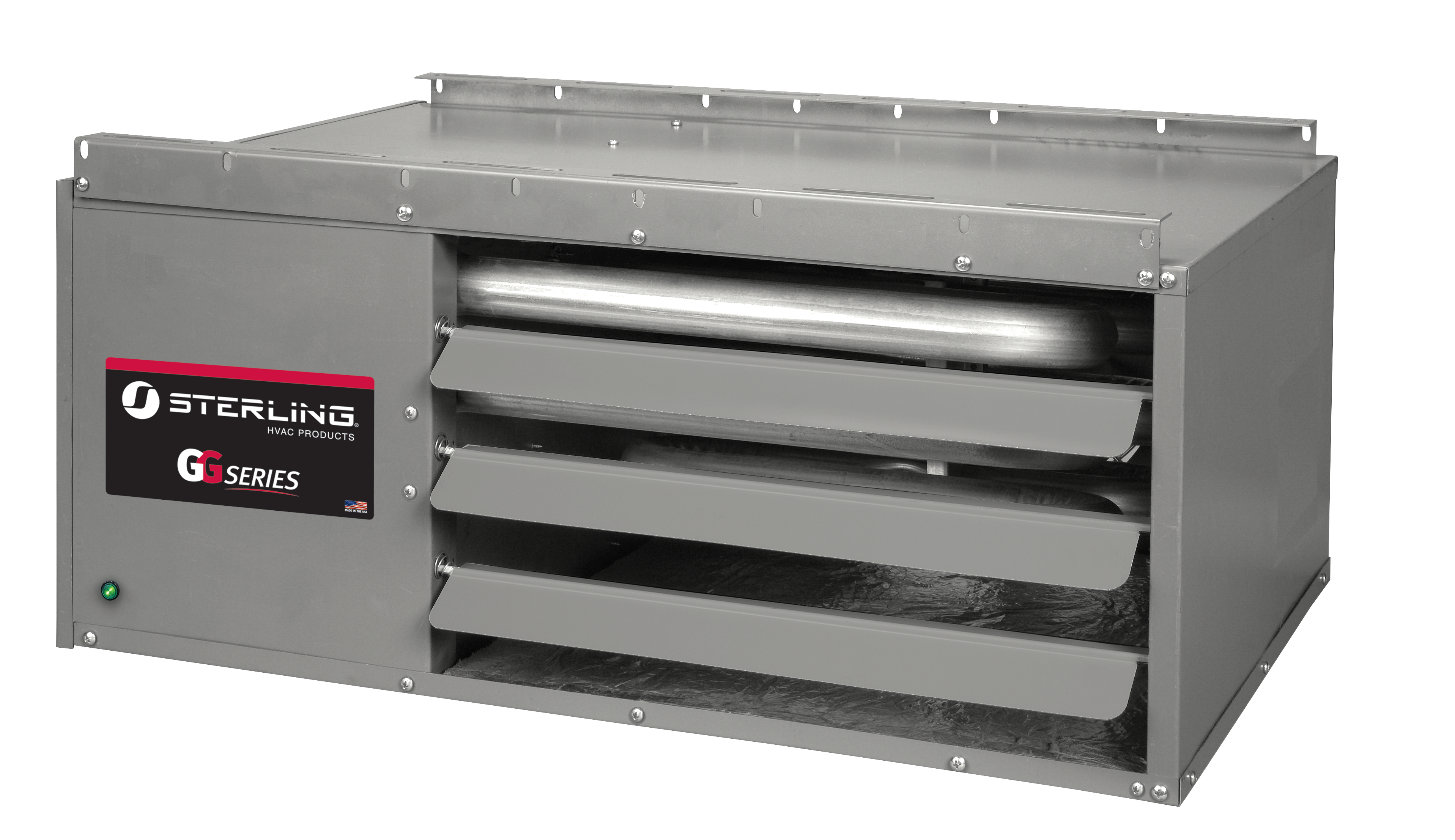

Sterling HVAC GG Series GG075A1NSA11 Low Profile Unit Heater, 75,000 BTU/hr (Input), 61,500 BTU/hr (Output), Natural Gas, 115/120 V, 60 W (Motor), NPT, 1/2" Connection Size, 1 Phase
Sterling HVAC GG Series GG075A1NSA11 Low Profile Unit Heater, 75,000 BTU/hr (Input), 61,500 BTU/hr (Output), Natural Gas, 115/120 V, 60 W (Motor), NPT, 1/2" Connection Size, 1 Phase
| Amperage Rating | : | 4.1 A |
| BTU Rating | : | 75,000 BTU/hr (Input), 61,500 BTU/hr (Output) |
| CFM Rating | : | 920 CFM |
| Connection Size | : | 1/2 " |
| Connection Type | : | NPT |
| Dimensions | : | 16-13/16" H x 30" W x 26-3/16" D |
| Domestic/Import | : | Domestic |
| Efficiency | : | 82% (Thermal) |
| Fan Size | : | 14" Diam |
| Finish | : | Baked Enamel |
| Frequency Rating | : | 60 Hz |
| Fuel Type | : | Natural Gas |
| HP Rating | : | 1/12 HP |
| Ignition Type | : | Direct Spark |
| Material | : | 20 Gauge Aluminized Steel (Heat Exchanger), 321 Stainless Steel (Burner Box), 20 Gauge Steel (Jacket Panels) |
| Model | : | GG075A1NSA11 |
| Motor Type | : | ODP, SP |
| Mounting Type | : | Ceiling Mount, Wall Mount, Horizontal |
| Number of Fans | : | 1 |
| Number of Stages | : | 1 |
| Phase | : | 1 |
| Power Rating | : | 60 W (Motor) |
| Rotational Speed | : | 1,050 RPM |
| Vent Size | : | 4 " |
| Voltage Rating | : | 115/120 V |
Take back the garage for year-round use. GG Series gas-fired, low-profile garage unit heaters are both residential and commercial outbuilding certified (non-occupied spaces only) in seven configurations to suit every area. Quiet, thermostat-controlled and easily installed–they stay out of the way and let you keep working comfortably. Units are ready for standard or separate combustion all in one unitUnits are ready for standard or separated combustion all in one unit. Optional combustion air inlet kits available for concentric venting.All GG Series units are covered by a limited 10-year heat exchanger warranty and are ETL certified for residential garage installations. Units come standard with LP gas conversion kits, and everything needed for applications in dusty or damp environments.
Sterling HVAC Low Profile Unit Heater, Model: GG Series, 75,000 BTU/hr (Input), 61,500 BTU/hr (Output), Natural Gas, 115/120 V, 60 W (Motor), NPT, 1/2" Connection Size, 1 Phase, 82% (Thermal) Efficiency, Direct Spark, 4" Vent Size, Ceiling Mount, Wall Mount, Horizontal, 920 CFM, 14" Diam Fan Size, 1 Fan(s), ODP, SP, 1/12 HP, 1,050 RPM, 20 Gauge Aluminized Steel (Heat Exchanger), 321 Stainless Steel (Burner Box), 20 Gauge Steel (Jacket Panels), 16-13/16" H x 30" W x 26-3/16" D Dimensions, Baked Enamel Finish, Domestic, 60 Hz, 4.1 A, 1
- Delivers 75,000 BTU input and 61,500 BTU output with 82% thermal efficiency.
- Features a durable 20-gauge aluminized steel tubular heat exchanger and 321 stainless steel burner box.
- Equipped with direct spark ignition and a redundant single-stage gas valve for reliable operation.
- Includes an LP gas conversion kit for fuel flexibility.
- Field convertible for separated combustion applications (requires accessory kit).
- Certified for residential garage/utility and commercial/industrial use.
- Backed by a 10-year limited warranty on the heat exchanger.
