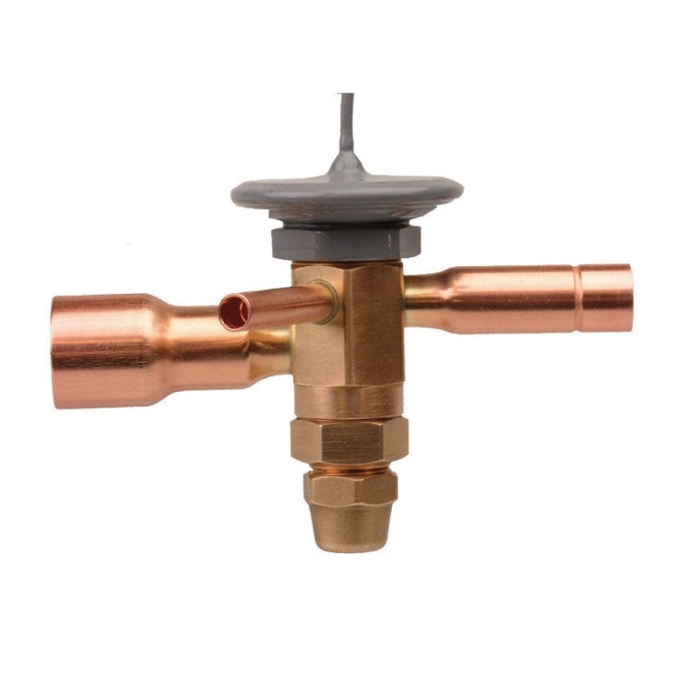

Sporlan® 169153 Thermostatic Expansion Valve, R-402A, R-404A, R-507A, R-452A Refrigerant, 1/8 in Inlet, ODF Inlet
Sporlan® 169153 Thermostatic Expansion Valve, R-402A, R-404A, R-507A, R-452A Refrigerant, 1/8 in Inlet, ODF Inlet
Manufacturer: PARKER HANNIFIN CORP
Brand: Sporlan®
Part #: 385597
MPN: 169153
Customer Part #:
Min. Order Qty: 1
Login for Availability
| Body Material | : | Brass/Stainless Steel |
| Capillary Length | : | 30 in |
| Compatible Unit Tonnage | : | 1/4 ton |
| Function Type | : | Expansion Valve |
| Height | : | 3.94 in |
| Inlet Connection Size | : | 1/8 in |
| Inlet Connection Type | : | ODF |
| Maximum Working Pressure | : | 30 to 170 psig |
| Operating Temperature Rating | : | 170 deg F |
| Outlet Connection Size | : | 3/8 in |
| Outlet Connection Type | : | ODF |
| Refrigerant Type | : | R-402A, R-404A, R-507A, R-452A |
Sporlan® Thermostatic Expansion Valve, R-402A, R-404A, R-507A, R-452A Refrigerant, Compatible Unit Tonnage 1/4 ton, 1/8 in Inlet, ODF Inlet, 3/8 in Outlet, ODF Outlet, Brass/Stainless Steel Body, 30 in L Capillary, 30 to 170 psig Max Working Pressure, 170 deg F, 3.94 in H, Expansion Valve
