Duravent 170FF 01152416CW Stamped Face Filter Grille, 24" L x 16" W Duct Size, Flush Mount, 40°, Fixed Deflection Type, Steel, White, White Enamel, 1/2" Grille Spacing
Duravent 170FF 01152416CW Stamped Face Filter Grille, 24" L x 16" W Duct Size, Flush Mount, 40°, Fixed Deflection Type, Steel, White, White Enamel, 1/2" Grille Spacing
| Base Size | : | 23-15/16" L x 15-15/16" W |
| CFM Rating | : | 692 CFM (At 400 FPM Face Velocity) |
| Color | : | White |
| Deflection Type | : | 40°, Fixed |
| Domestic/Import | : | Domestic |
| Duct Size | : | 24" L x 16" W |
| Finish | : | White Enamel |
| Grille Spacing | : | 1/2 " |
| Height | : | 1-5/8 " |
| Length | : | 24 " |
| Material | : | Steel |
| Mounting Type | : | Flush Mount |
| Pitch | : | 1/2", 40 degrees |
| Series | : | 170FF |
| Size | : | 1-5/8" H x 24" L x 16" W |
| Width | : | 16 " |

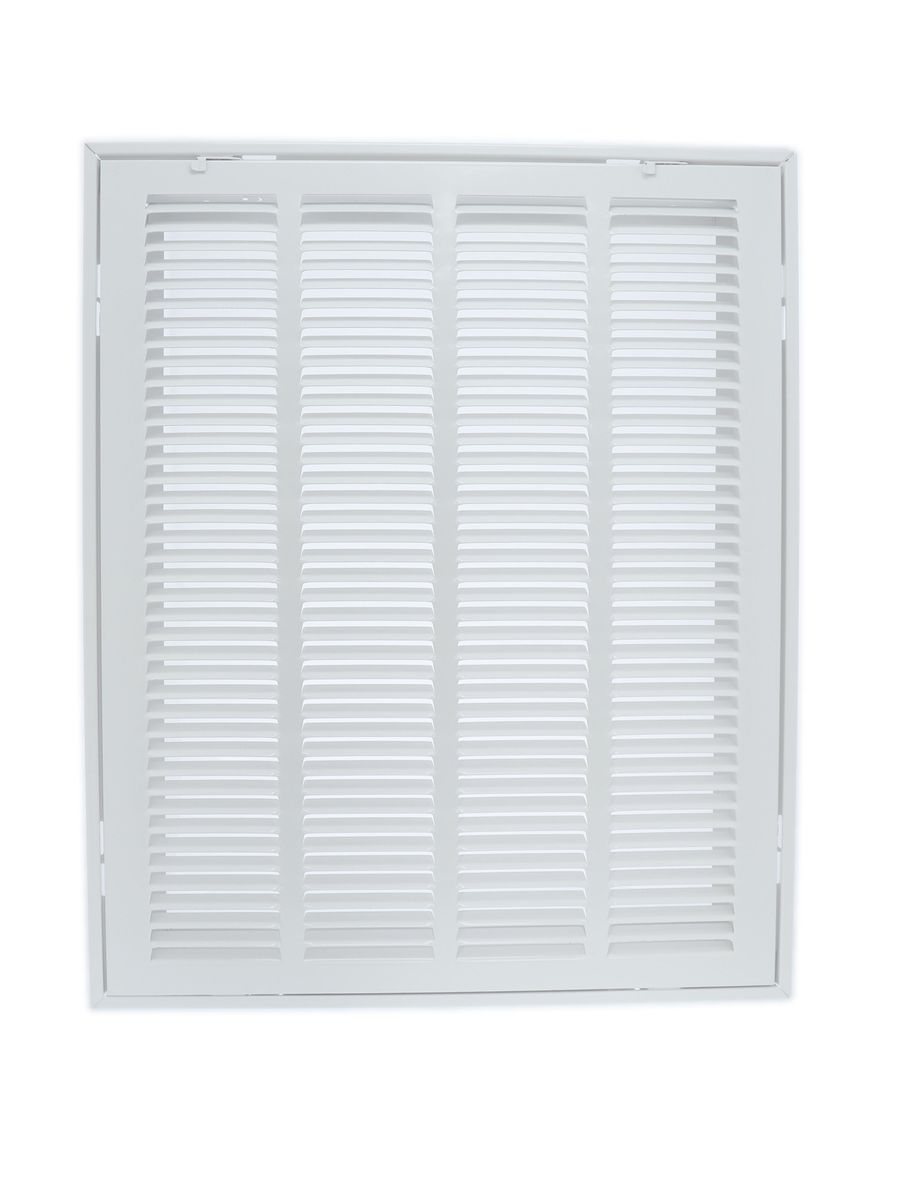

This AirMate 170FF filter grille features a durable stamped steel face with 1/2-inch lanced fins set at a 40-degree deflection. Designed for easy installation, it includes a wide margin and provides a flush mount appearance. The hinged face is removable, allowing convenient access for filter changes. This grille accepts a standard 24" x 16" x 1" filter (not included).
Duravent Stamped Face Filter Grille, Model: 170FF, 24" L x 16" W Duct Size, Flush Mount, 40°, Fixed Deflection Type, Steel, White, White Enamel, 1/2" Grille Spacing, 1/2", 40 Degrees Pitch, 692 CFM (At 400 FPM Face Velocity), 1-5/8" Height, Domestic
- Durable steel construction with a white enamel finish.
- Stamped face design with 1/2" fin spacing at a 40° fixed deflection.
- Wide margin simplifies the installation process.
- Hinged, removable face allows for easy access to the filter.
- Mounts flush with the frame for a clean, professional appearance.
- Accommodates a standard 1" thick filter (24" x 16").
- Manufactured in the USA.
