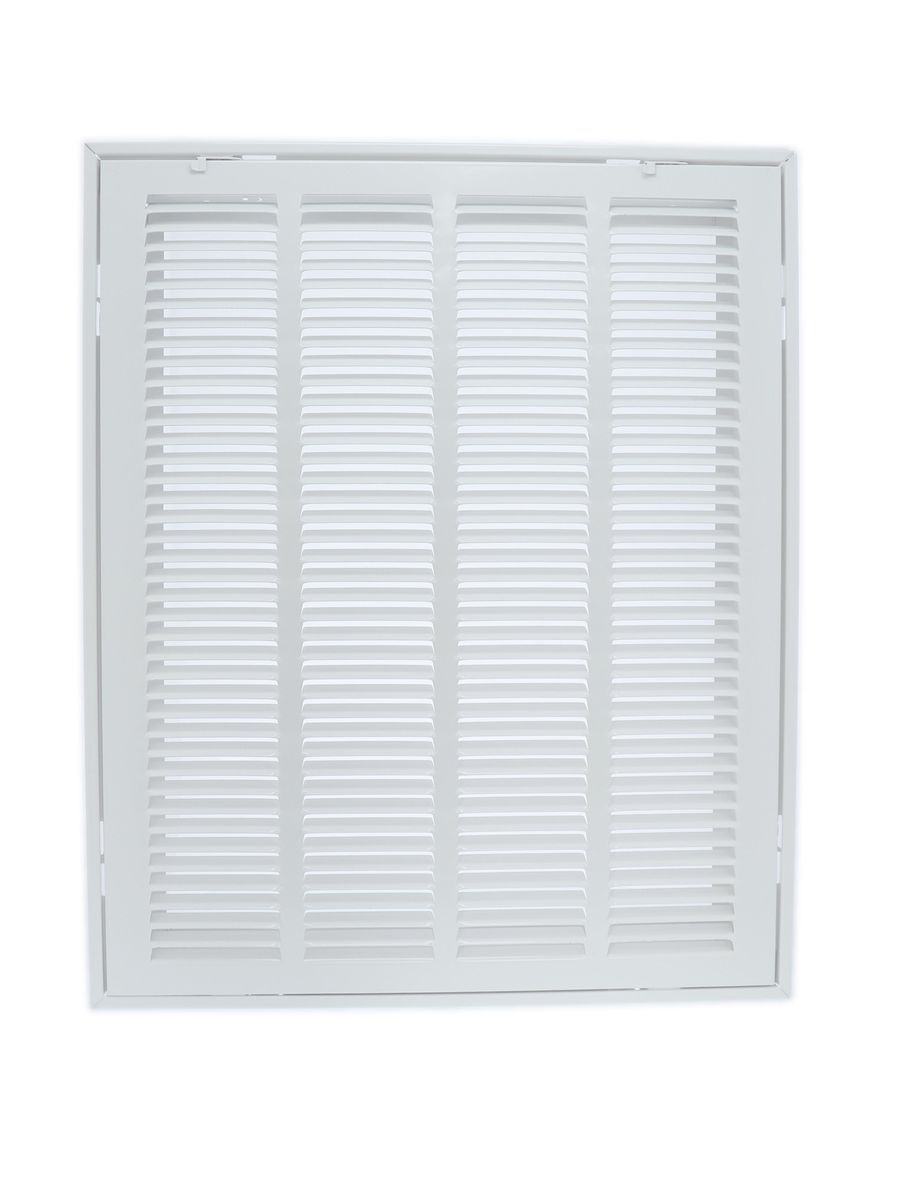

Duravent 170FF 01151212CW Filter Grille, 12" L x 12" W Duct Size, Flush Mount, 40°, Fixed Deflection Type, Steel, White, 1/2" Grille Spacing, 1-5/8" H x 12" L x 12" W Size
Duravent 170FF 01151212CW Filter Grille, 12" L x 12" W Duct Size, Flush Mount, 40°, Fixed Deflection Type, Steel, White, 1/2" Grille Spacing, 1-5/8" H x 12" L x 12" W Size
| Base Size | : | 11-15/16" L x 11-15/16" W |
| CFM Rating | : | 263 CFM (At 400 FPM Face Velocity) |
| Color | : | White |
| Deflection Type | : | 40°, Fixed |
| Domestic/Import | : | Domestic |
| Duct Size | : | 12" L x 12" W |
| Finish | : | White Enamel |
| Grille Spacing | : | 1/2 " |
| Height | : | 1-5/8 " |
| Length | : | 12 " |
| Material | : | Steel |
| Mounting Type | : | Flush Mount |
| Pitch | : | 1/2", 40 degrees |
| Series | : | 170FF |
| Size | : | 1-5/8" H x 12" L x 12" W |
| Width | : | 12 " |
The 170FF Series Filter Grille features durable all-steel construction with a bright white enamel finish. Its flush, removable face has concealed latches and hinges, allowing for versatile installation options and easy access for cleaning. This grille is designed to effectively conceal standard 1-inch thick disposable filters (sold separately) and includes adjustable retainers to hold the filter securely.
Duravent Filter Grille, Model: 170FF, 12" L x 12" W Duct Size, Flush Mount, 40°, Fixed Deflection Type, Steel, White, 1/2" Grille Spacing, 1-5/8" H x 12" L x 12" W Size, 11-15/16" L x 11-15/16" W Base Size, 263 CFM (At 400 FPM Face Velocity), Domestic
- Durable all-steel construction ensures longevity.
- Bright white enamel finish provides a clean aesthetic.
- Flush, removable face with concealed latches simplifies filter changes and cleaning.
- Accommodates standard 1" thick disposable air filters (not included).
- Equipped with adjustable filter retainers for secure filter placement.
- Features 1/2" fin spacing set at a 40-degree deflection angle.
- Made in the USA.
