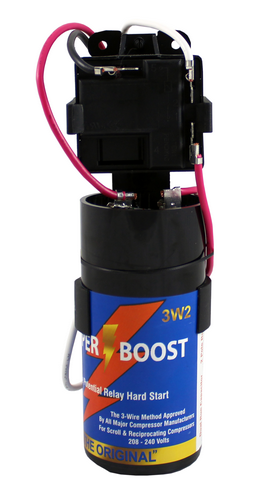

Supco 3 Series 3W2 Hard Start Kit, 208/240 VAC (Operating), 330 VAC (Capacitor), 3-Wire, 35 A (Relay Contacts), EZ Snap Bracket Mounting Type, UL Recognized, NATE Recognized, Plastic, 50 Hz, 60 Hz
Supco 3 Series 3W2 Hard Start Kit, 208/240 VAC (Operating), 330 VAC (Capacitor), 3-Wire, 35 A (Relay Contacts), EZ Snap Bracket Mounting Type, UL Recognized, NATE Recognized, Plastic, 50 Hz, 60 Hz
Manufacturer: Marcone
Brand: Sealed Unit Parts Co Inc
Part #: 382902
MPN: 3W2
Customer Part #:
Min. Order Qty: 1
Login for Availability
| Amperage Rating | : | 35 A (Relay Contacts) |
| Connection Type | : | 3-Wire |
| Frequency Rating | : | 50 Hz, 60 Hz |
| Material | : | Plastic |
| Mounting Type | : | EZ Snap Bracket |
| Product Type | : | COMPRESSOR REPAIR |
| Series | : | 3 Series |
| Specifications | : | UL Recognized, NATE Recognized |
| Suitable For Use With | : | 3.5 - 4.5 HP Single Phase Compressors (Scroll, Reciprocating); Air Conditioners; Refrigeration Units |
| Voltage Rating | : | 208/240 VAC (Operating), 330 VAC (Capacitor) |
The 3 Series Hard Starts provide the service professional with an OEM option when the application calls for a hard start. Combining a potential relay and start capacitor, the 3 Series provides a true 3-wire solution.This kit is designed for use with 3.5 to 4.5 horsepower single-phase air conditioning or refrigeration units, including scroll and reciprocating compressors, especially in hard starting or low voltage situations.
Supco Hard Start Kit, Model: 3 Series, 208/240 VAC (Operating), 330 VAC (Capacitor), 3-Wire, 35 A (Relay Contacts), EZ Snap Bracket Mounting Type, UL Recognized, NATE Recognized, Plastic, 50 Hz, 60 Hz
- Provides a true 3-wire solution combining a potential relay and start capacitor.
- Designed for 3.5 to 4.5 HP single-phase compressors (scroll and reciprocating).
- Features voltage sensing and instant restart capabilities.
- Includes an EZ Snap bracket for quick and easy installation.
- Relay contacts rated for 35 Amps.
- UL Recognized and NATE Recognized (Course #1867-0002).
- Backed by a 2-year warranty.
