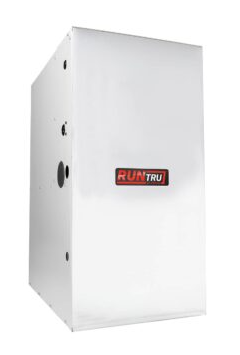

RunTru A952V080BU4SAD 4T 96 AFUE Condensing Two Stage Gas Furnance
RunTru A952V080BU4SAD 4T 96 AFUE Condensing Two Stage Gas Furnance
Manufacturer: Trane International Inc
Brand: RUNTRU® By Trane
Part #: 384912
MPN: A952V080BU4SAD
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
| AFUE Rating | : | 96 % |
| AHRI Model Number | : | A952V080BU4S*** |
| Airflow Capacity | : | 4.0 Ton |
| Ampacity | : | 10.8/12.8 |
| Blower (Dia x W) (In) | : | 11 x 8 |
| Blower Drive | : | Direct |
| Blower FLA | : | 8/9.6 |
| Blower Fan Power | : | 120/1/60 |
| Blower Fan RPM | : | Variable |
| Blower Fan Speeds | : | Variable |
| Blower Type | : | X13 Constant Torque Motor |
| Burner Type | : | Inshot |
| Combustion Fan FLA | : | 0.66 |
| Combustion Fan Inducer Orifice | : | 0.96 |
| Combustion Fan Type | : | PSC |
| Combustion Fan-RPM | : | 3,300/2,600 |
| Communicating | : | No |
| Condensing | : | Yes |
| Configuration | : | Upflow, Horizontal |
| Dimensions | : | 34 x 17.5 x 28.75 |
| Drill Size LP Gas (Qty - Drill Size) | : | 4 - 56 |
| Drill Size Nat Gas (Qty - Drill Size) | : | 4 - 45 |
| ElecVolts | : | 120 |
| Energy Star Compliant | : | Yes |
| Equipment Application | : | Heating |
| Filter Height (In) | : | 16 |
| Filter Hi Vel. (No.-Size-Thk.) | : | 1 - 16 x 25 - 1 |
| Filter Size (In) | : | 16 x 25 |
| Filter Type Recommended | : | High Velocity |
| Filter Width In | : | 25 |
| Flue Size | : | 2 Round |
| Frequency Rating | : | 60 Hz |
| Fuel Type | : | Natural Gas |
| Fuse Rating | : | 15 A |
| Input BTU Rating | : | 80,000 Btu/hr |
| Model Number | : | A952 |
| Motor Type | : | ECM |
| Number of Stages | : | Two |
| Phase | : | 1 ph |
| Series | : | A952V |
| Specifications1 | : | Full Load Amperage (FLA):: 0.66|Gas Valve Type:: Redundant - 2-Stage|Heat Exchanger Guage (Fired):: 20|Heat Exchanger Type - Fired:: 409 Stainless Steel|Heat Exchanger Type - Unfired:: 29-4C Stainless Steel|HeatingCapacityStage1:: 52,000|HeatingCapacityStage2:: 80,000|Ignition Type:: Silicon Nitride Igniter|Line Size Gas:: 1/2|Max Amp Rating:: 10.8/12.8|Max Fuse:: 15 |
| Specifications2 | : | MOCP:: 15|Motor Type:: Variable|Nominal Efficiency:: 95% Condensing|Number of Burners:: 4|Number of Fan Motors:: 1|Number of Phase:: 1|Output BTUH:: Stage 1 = 50,500; Stage 2 = 77,700|Pilot Safety Device:: 120V Silicon Nitride Igniter|Power Supply:: 120/1/60|Series:: A952V|Stages:: 95% Condensing|Temperature Rise (Min-Max) F:: Stage 1 = 25 - 55; Stage 2 = 30 - 60|Tonnage:: 6.667 |
| Tonnage | : | 4.0 Ton |
| Voltage Rating | : | 115/120 V |
| Width | : | 17.5 in |
RunTru - A952V080BU4SAD, 4T, 96% AFUE, 80,000 BTU, 115V, ECM Variable Speed Motor, Upflow / Horizontal, Direct/Non-Direct Vent, Condensing Two Stage Gas Furnance
- Up to 96% AFUE
- 34” cabinet height on all models
- Stainless steel primary and secondary heat exchangers
- multiport inshot burners
- an integrated system control that continuously monitors for the presence of flame
- The integrated control system display shows self diagnostic information to help troubleshoot if needed and a rain shield protects the control unit from condensate
- Variable Speed (ECM) Motor
