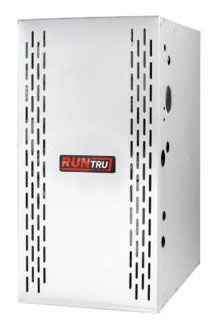

RunTru A801X080BM4SCA 4T 80 AFUE Non- Condensing Single Stage Gas Furnance
RunTru A801X080BM4SCA 4T 80 AFUE Non- Condensing Single Stage Gas Furnance
Manufacturer: Trane International Inc
Brand: RUNTRU® By Trane
Part #: 384878
MPN: A801X080BM4SCA
Customer Part #:
Min. Order Qty: 1
Login for Availability
| AFUE Rating | : | 80 % |
| AHRI Model Number | : | A801X080BM4S*** |
| Airflow Capacity | : | 4.0 Ton |
| Ampacity | : | 12 |
| Blower (Dia x W) (In) | : | 11 x 8 |
| Blower Drive | : | Direct |
| Blower FLA | : | 9.2 |
| Blower Fan Power | : | 120/1/60 |
| Blower Fan RPM | : | 1,050 |
| Blower Fan Speeds | : | 9 |
| Blower Type | : | CTM |
| Combustion Fan FLA | : | 0.29 |
| Combustion Fan Inducer Orifice | : | 1.75 |
| Combustion Fan Type | : | PSC |
| Combustion Fan-RPM | : | 3,300 |
| Communicating | : | No |
| Configuration | : | Multi - Position |
| Dimensions | : | 34 x 17.5 x 28.75 |
| Drill Size LP Gas (Qty - Drill Size) | : | 4 - 56 |
| Drill Size Nat Gas (Qty - Drill Size) | : | 4 - 45 |
| ElecVolts | : | 120 |
| Energy Star Compliant | : | Yes |
| Equipment Application | : | Heating |
| Filter Height (In) | : | 25 |
| Filter Hi Vel. (No.-Size-Thk.) | : | 1 - 16 x 25 - 1 |
| Filter Size (In) | : | 16 x 25 |
| Filter Type Recommended | : | High Velocity |
| Filter Width In | : | 16 |
| Flue Size | : | 4 Round |
| Frequency Rating | : | 60 Hz |
| Fuel Type | : | Natural Gas |
| Fuse Rating | : | 15 A |
| Input BTU Rating | : | 80,000 Btu/hr |
| Model Number | : | A801 |
| Motor Type | : | ECM |
| Number of Stages | : | Single |
| Phase | : | 1 ph |
| Series | : | A801X |
| Specifications1 | : | Gas Valve Type:: Redundant - 1-Stage|Heat Exchanger - Type:: Aluminized Steel|Heat Exchanger Guage (Fired):: 20 - 19|HeatingCapacityStage1:: 80,000|Ignition Type:: Silicon Nitride Igniter|Line Size Gas:: 1/2|Max Amp Rating:: 12|Max Fuse:: 15|MOCP:: 15|Motor Type:: ECM|Nominal Efficiency:: 80% Non - Condensing |
| Specifications2 | : | Nominal Input BTUH:: 80,000|Number of Burners:: 4|Number of Fan Motors:: 1|Number of Phase:: 1|Output BTUH:: 65,100|Pilot Safety Device:: 120V Silicon Nitride Igniter|Power Supply:: 120/1/60|Series:: A801X|Stages:: 80% Non - Condensing|Temperature Rise (Min-Max) F:: 30 - 60|Tonnage:: 5.425|Type:: Standard |
| Tonnage | : | 4.0 Ton |
| Voltage Rating | : | 115/120 V |
| Width | : | 17.5 in |
RunTru - A801X080BM4SCA, 4T, 80% AFUE, 80,000 BTU, 120V, ECM Fan Motor, Multi-Position Non- Condensing Induced Draft Single Stage Gas Furnance
