| BTU Cooling Rating | : | 24,000 Btu/hr |
| Blower Diameter | : | 23 in |
| Blower Motor Type | : | PSC |
| Charging Specification Subcooling | : | 12 deg F |
| Compressor Insulation/Sound Blanket | : | No |
| Compressor LRA | : | 75.9 |
| Compressor RLA | : | 9.1 |
| Compressor Stages | : | Single Stage |
| Compressor Sump Heater Factory Installed | : | No |
| Compressor Type | : | Scroll |
| Elec Hertz | : | 60 Hz |
| Elec Phases | : | 1 ph |
| Elec Volts | : | 208/230 V |
| Fin Type | : | Aluminum |
| Frequency Rating | : | 60 Hz |
| Full Load Amperage (FLA) | : | 0.64 |
| Fuse Rating | : | 25 A |
| HSPF2 Range | : | 7.5 |
| Line Size - Liquid (in) | : | 5/16 |
| Line Size - Suction (In) | : | 3/4 |
| Liquid Line (OD) | : | 5/16 in |
| MCA | : | 13 |
| Max Fuse | : | 20 A |
| Motor Speed | : | 850 rpm |
| Number of Fans | : | 1 |
| Number of Stages | : | Single |
| Phase | : | 1.0 ph |
| Power Supply | : | 208/230 V/1 Phase/60 Hz |
| Refrigerant Control | : | TXV |
| Refrigerant Type | : | R-454B |
| Rows - Fins per Inch | : | 24 |
| SEER Rating | : | 14.3 |
| SEER2 Range | : | 7.5 |
| SEER | : | 15 |
| Series | : | A5HP4 |
| Sound Level | : | 75 dBA |
| Suction Line Size | : | 3/4 in |
| Tonnage | : | 2 |
| Tonnage | : | 2.0 Ton |
| Tube Size (In) | : | 3/8 |
| Volts | : | 208/230 V |

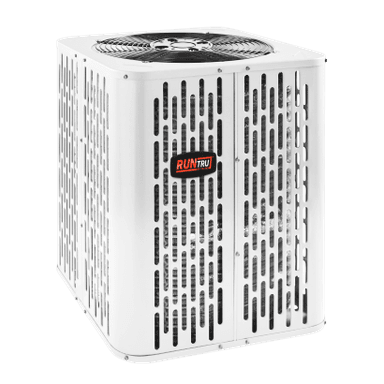

RUNTRU® By Trane A5HP4024A1000A, A5HP5, 2T, 14.3 SEER2, 24,000 BTU, 208/230V, 7.5 HSPF, R454B, Single Stage Heat Pump Single Stage Heat Pump
14.3 SEER2 heat pumps meet 2025 Low Global Warming Potential (Low GWP) regulatory criteria using R-454B refrigerantThe outdoor coil provides low airflow resistance and efficient heat transfer. The coil is protected on all four sides by louvered panels.Refrigeration system controls include condenser fan, compressor drive and low and high pressure switches.The compressor features external over temperature and pressure protection. Other features include: Centrifugal oil pump and low vibration and noise.
