| Additional Information | : | 11 in Dia x 8 in W Direct Drive Centrifugal Fan, TXV Flow Control |
| Amperage Rating | : | 6 A |
| BTU Rating | : | 48,000 Btu/hr |
| CFM Rating | : | 1,600 cfm |
| Coil Rating | : | 5.5 sq-ft Face Area |
| Configuration | : | Downflow, Horizontal Left/Right, Multi-Position |
| Connection Size | : | 3/4 in |
| Connection Type | : | NPT |
| Cooling Capacity | : | 48,000 |
| Dimensions | : | 51.27 in H x 18.75 in W x 21.08 in D |
| Finish | : | Painted |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 3/4 hp |
| Liquid Line Size | : | 3/8 in |
| Material | : | Metal |
| Metering Device | : | TXV |
| Model Number | : | A5AHC |
| Model | : | A5AHC |
| Motor Type | : | ECM |
| Nominal Capacity | : | 4.0 Ton |
| Number of Speeds | : | 8 |
| Number of Stages | : | Single |
| Phase | : | 1 ph |
| Position | : | Multi Position |
| Product Family Series | : | A5AHC |
| Refrigerant Control | : | TXV |
| Refrigerant Type | : | R-454B |
| Refrigerant | : | R454B |
| Series | : | A5AHC |
| Stage | : | 1 |
| Suction Line Size | : | 7/8 in |
| Tonnage | : | 3.0-4.0 Ton |
| Voltage Rating | : | 208/230 V |
| Voltage | : | 208/230 |
The A5AHC series air handler is designed for installation in a closet, utility room, alcove, basement, crawlspace or attic. These versatile units are applicable to air conditioning and heat pump applications. Several models are available to meet the specific requirements of the outdoor equipment. Field installed electric resistance heaters are available.

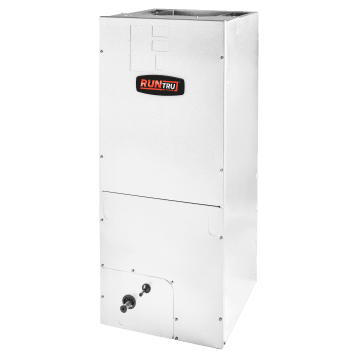

RunTru A5AHC006A1D30A, Priority, 3-4T, 48,000 BTU, 208/230V, R454B, TXV Metering, ECM Motor, Multi Position, Single Stage Air Handler
- Low Global Warming Potential (GWP) outdoor units that utilize R-454B refrigerant
- R-454B Thermal Expansion Valve
- Horizontal Drain Pan
- Multi-Position UP/Down Flow, Horizontal Left /Right
- Draw Through Design
- Variable speed ECM motor
- Slide in electric heaters with polarized plug connections (sold as accessory)
- Painted metal cabinet with captured foil face insulation
