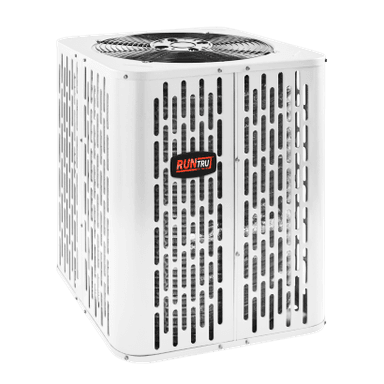

RunTru A5AC4036A1000A,A5AC4- 3T, 14 SEER2, Single Stage Air Conditioner
RunTru A5AC4036A1000A,A5AC4- 3T, 14 SEER2, Single Stage Air Conditioner
Manufacturer: Trane International Inc
Brand: RUNTRU® By Trane
Part #: 384818
MPN: A5AC4036A1000A
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
| BTU Rating | : | 36,000 Btu/hr |
| Dimensions | : | 32.6 in H x 29.8 in W x 29.8 in D |
| EER Rating | : | 11.7 |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 18.0 A |
| Max Amps | : | 18.0 |
| Model Number | : | A5AC4 |
| Model | : | A5AC4 |
| Noise Level | : | 71 dba |
| Number of Stages | : | Single Stage |
| Phase | : | 1.0 ph |
| Product Family Series | : | A5AC4 |
| Refrigerant Type | : | R-454B |
| SEER2 Range | : | 14.3 |
| Sound Level | : | 71 dBA |
| Suction Line Size | : | 3/4 in |
| Tonnage | : | 3.0 Ton |
| Voltage | : | 208/230 V |
Enjoy superior cooling with this environmentally-friendly AC, which offers energy-efficient, quiet operation at 71-73 dBA and is well-suited for any space.
RunTru A5AC4036A1000A,A5AC4- 3T, 14 SEER2, 36,000 BTU, 208/230V, R454B, Single Stage Air Conditioner
- 14 Single-Stage Air Conditioner outdoor products using R-454B refrigerant
- New TXV and refrigeration designs that are optimized for maximum performance using the new refrigerant.
- The compressor features internal over temperature and pressure protection. Other features include: Centrifugal oil pump and low vibration and noise.
- The outdoor coil provides low airflow resistance and efficient heat transfer. The coil is protected on all four sides by louvered panels.
- Unit casing is constructed of heavy gauge, galvanized steel and painted with a weather-resistant powder paint finish. The corner panels are prepainted. All panels are subjected to our 1,000 hour salt spray test.
- Refrigeration system controls include condenser fan, compressor contactor and low and high pressure switches. A factory supplied, field installed liquid line drier is standard.
