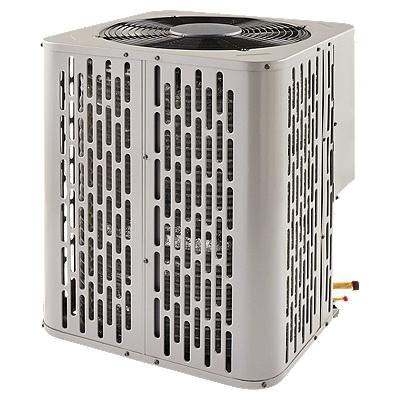

TRANE® A4AC5 Series A4AC5042D1000A Split System Air Conditioner, 208 - 230 V
TRANE® A4AC5 Series A4AC5042D1000A Split System Air Conditioner, 208 - 230 V
Manufacturer: Trane International Inc
Brand: RUNTRU® By Trane
Part #: 384770
MPN: A4AC5042D1000A
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
| BTU Rating | : | 42,000 Btu/hr |
| CFM Rating | : | 4513 cfm |
| Compressor Type | : | Scroll |
| Dimensions | : | 36.63 in H x 34.5 in W x 34.25 in D |
| Drive Type | : | Direct |
| Fins per Inch | : | 24 FPI |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 35 A |
| Max Amps | : | 35.0 |
| Number of Stages | : | Single Stage |
| Phase | : | 1.0 ph |
| Refrigerant Type | : | R-410A |
| Rotational Speed | : | 850 rpm |
| SEER Rating | : | 14.3, 16 |
| SEER2 Range | : | 14.3 |
| Series | : | A4AC5 Series |
| Sound Level | : | 71 dBA |
| Tonnage | : | 3.5 Ton |
| Voltage | : | 208/230 V |
TRANE® Split System Air Conditioner, Series: A4AC5 Series, 3.5 ton Nominal Capacity, 420000 Btu Cooling Capacity, 208 - 230 V, 850 rpm Rotational Speed, 60 Hz, 1 ph Phase, Scroll Compressor, 4513 cfm, 14.3, 16 SEER, 1 Stages, R-410A Refrigerant, 71 dB Sound Level, Direct Drive, 35 A Fuse Rating, 24 FPI Fins per Inch, 36.63 in H x 34.5 in W x 34.25 in D
