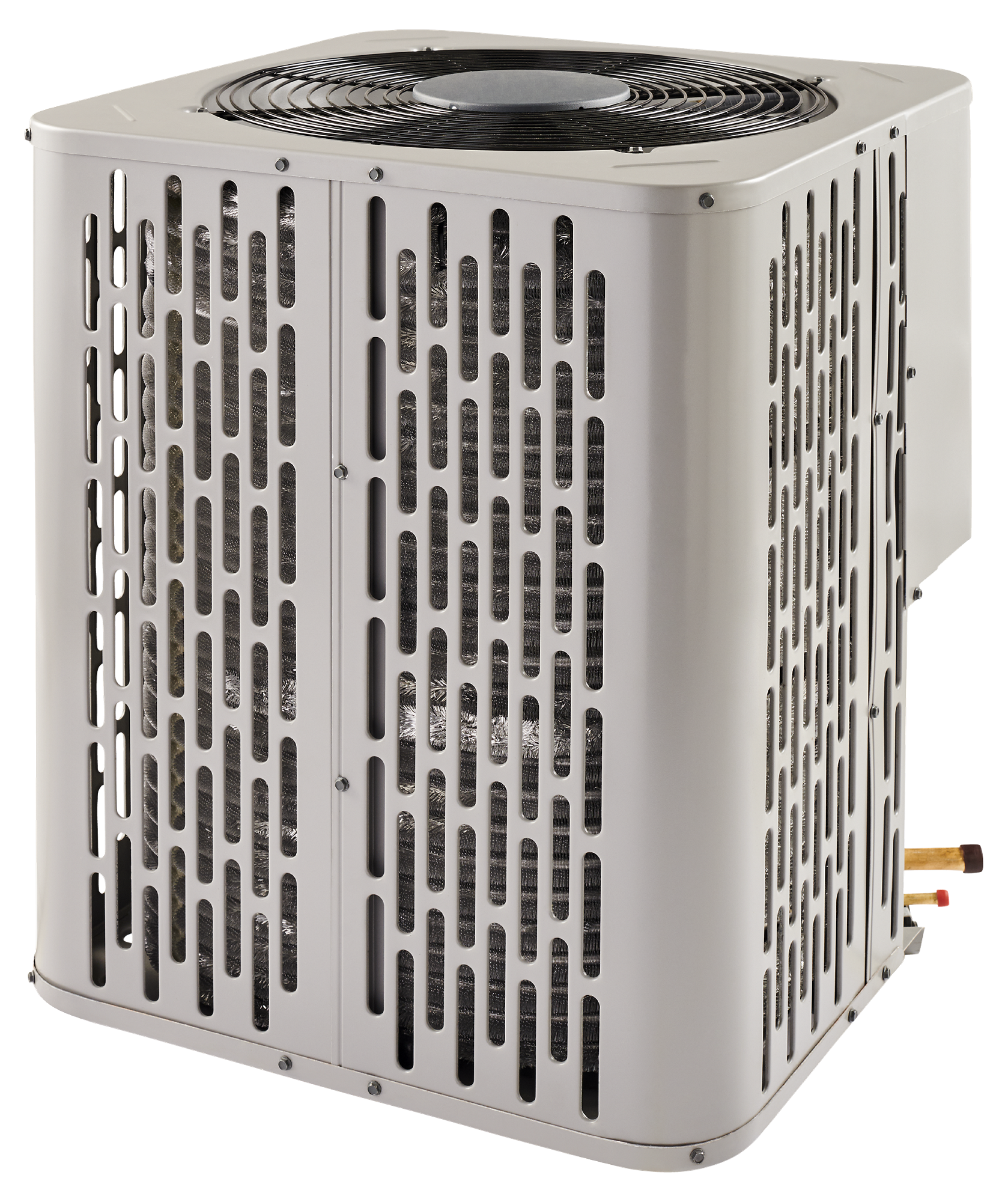

RunTru A4AC3024D1000C 13.4 SEER2 Split System Air Conditioner, 208-230/1/60, 24K BTUH Nom Cap
RunTru A4AC3024D1000C 13.4 SEER2 Split System Air Conditioner, 208-230/1/60, 24K BTUH Nom Cap
Manufacturer: Trane International Inc
Brand: RUNTRU® By Trane
Part #: 384751
MPN: A4AC3024D1000C
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
| AHRI Model Number | : | A4AC3024D1 |
| Additional Information | : | Stages: 1|Tonnage: 2|Uncrated Dimensions (HxWxD): 28.63 x 25.63 x 25.63 in|Voltage: 208/230 V |
| Airflow CFM | : | 2720 |
| BTU Rating | : | 24,000 Btu/hr |
| Blower Diameter | : | 18.9 in |
| Blower Fan Speeds | : | 1 |
| Blower Motor Type | : | Direct Drive |
| Charging Specification Subcooling | : | 10 deg F |
| Coil Face Area (Sq-Ft) | : | 13.44 |
| Coil Rows | : | 1.0 |
| Coil Type | : | Aluminum |
| Compressor Insulation/Sound Blanket | : | No |
| Compressor LRA | : | 62.9 |
| Compressor RLA | : | 10.9 |
| Compressor Sump Heater Factory Installed | : | No |
| Compressor Type | : | Scroll |
| Elec Phases | : | 1 ph |
| Elec Volts | : | 208/230 V |
| FPI | : | 24 |
| Fan Drive | : | Direct |
| Fan Motor FLA | : | 0.85 |
| Fan Type | : | Propeller |
| Frequency (Hz) | : | 60 Hz |
| Full Load Amperage (FLA) | : | 0.9 |
| Full Octave Sound Power[dB] | : | 74 at 63 Hz, 71 at 125 Hz, 65 at 250 Hz, 68 at 500 Hz, 67 at 1000 Hz, 63 at 2000 Hz, 56 at 4000 Hz, 50 at 8000 Hz |
| Insulation Material | : | Non-insulated |
| Line Size - Liquid (in) | : | 3/8 |
| Line Size - Suction (In) | : | 3/4 |
| MCA | : | 13.0 |
| Max Amps | : | 35.0 |
| Max Fuse | : | 25 A |
| Min SEER2 | : | 13.4 |
| Model Number | : | A4AC3 |
| Motor (RPM) | : | 1075 |
| Motor HP | : | 1/8 |
| Motor Power Rating | : | 200/230 V/1 Phase/60 Hz |
| Motor Speed | : | 1075 rpm |
| Nominal Capacity BTU Rating | : | 24,000 |
| Number of Compressor | : | 1 |
| Number of Stages | : | Single Stage |
| Outdoor Coil-Tube Size (In) | : | 3/8 |
| Phase | : | 1.0 ph |
| Power Supply | : | 208/230 V/1 Phase/60 Hz |
| Product Type | : | Air Conditioner |
| Refrigerant Charge lbs | : | 4.0 |
| Refrigerant Type | : | R-410A |
| SEER2 Range | : | 14.3 |
| SEER | : | 13.0 |
| Sound Level | : | 74 dBA |
| Sound Rating (dB) | : | 74.0 |
| Tonnage | : | 2.0 Ton |
| Voltage | : | 208/230 V |
