Resideo FocusPRO YTH6320R1023/U Wireless Programmable Thermostat Kit, 5-1-1 Day, 5-2 Day Programmability, 3 H / 2 C (Heat Pump), 2 H / 2 C (Conventional), Auto, Manual, Wall Mount (Horizontal), Wireless (Redlink), 24 VAC, Battery
Resideo FocusPRO YTH6320R1023/U Wireless Programmable Thermostat Kit, 5-1-1 Day, 5-2 Day Programmability, 3 H / 2 C (Heat Pump), 2 H / 2 C (Conventional), Auto, Manual, Wall Mount (Horizontal), Wireless (Redlink), 24 VAC, Battery
| Accuracy | : | ± 1 °F |
| Changeover | : | Auto, Manual |
| Color | : | White |
| Connection Type | : | Wireless (RedLINK) |
| Control Range | : | 40 °F-90 °F (Heat), 50 °F-99 °F (Cool) |
| Differential Temperature | : | 1-1.5 °F |
| Dimensions | : | 3.56" H x 5.81" W x 1.5" D |
| Display Type | : | LCD (Backlit) |
| Electrical Connection | : | Screw Terminals |
| Humidity Rating | : | 5-90% RH (Non-Condensing) |
| Model | : | YTH6320R1023/U |
| Mounting Type | : | Wall Mount (Horizontal) |
| Power Source | : | Battery |
| Programmability | : | 5-1-1 Day, 5-2 Day |
| Sensing Element | : | Thermistor |
| Series | : | FocusPRO |
| Stages | : | 3 H / 2 C (Heat Pump), 2 H / 2 C (Conventional) |
| Temperature Rating | : | 32-120 °F |
| Temperature Settings | : | 40°F - 90°F (Heat), 50°F - 99°F (Cool) |
| Terminal Designation | : | C, R. Rc, Rh, W-O/B, W2-Aux/E, Y, Y2, G, L, RAS, RAS (Equipment Interface Module) |
| Termination | : | Screw Terminals |
| Voltage Rating | : | 24 VAC |

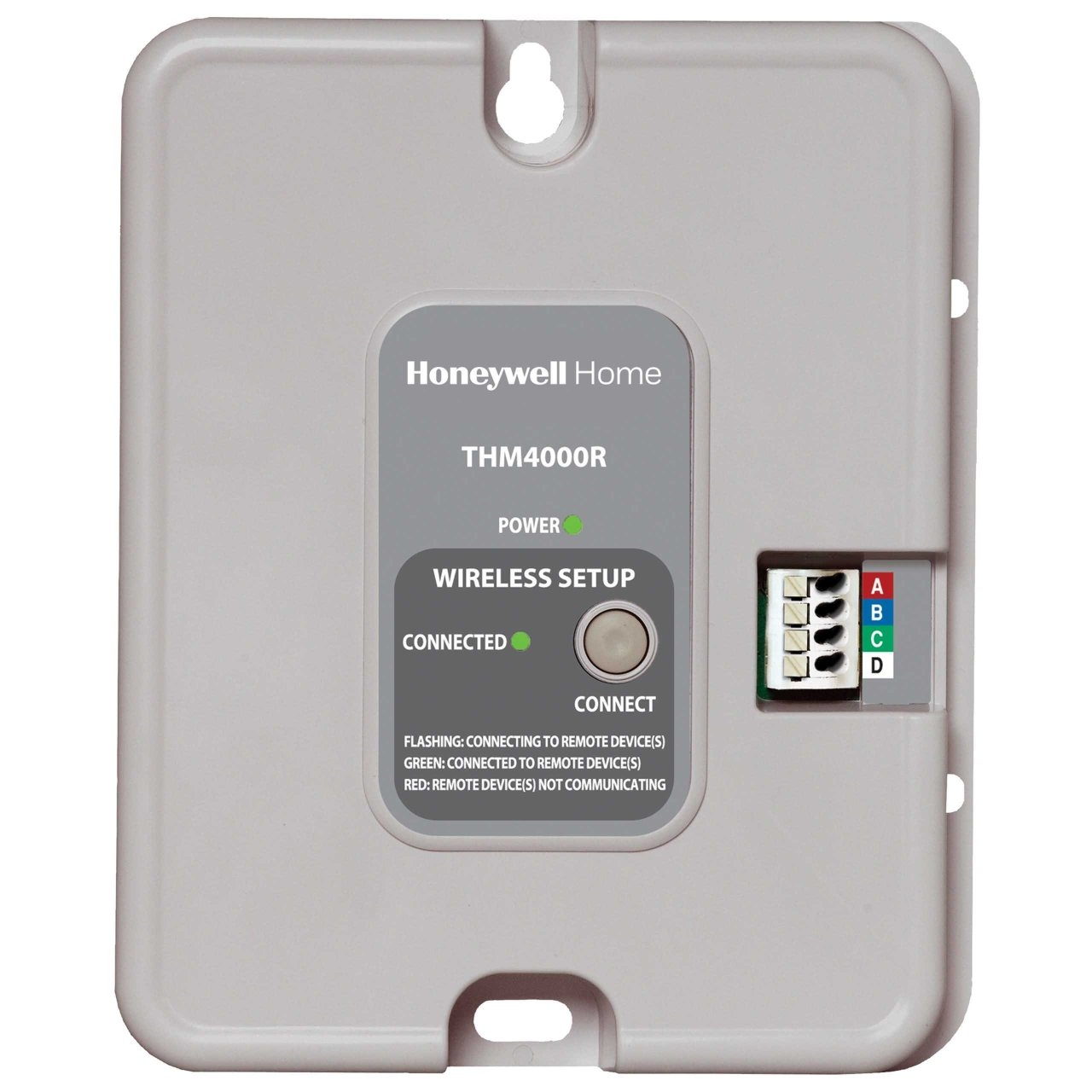

Simplify thermostat installation or upgrades without running new wires using this FocusPRO® Wireless Programmable Thermostat Kit. The included TH6320R1004 thermostat features a large backlit display and connects wirelessly using RedLINKâ„¢ technology to the included THM4000R1000 adapter, enabling connection to RedLINK® zone panels like the HZ322 or HZ432.This kit is ideal for relocating a thermostat, upgrading equipment, or adding zoning capabilities easily. Add an optional RedLINK® gateway for remote monitoring and control via the Total Connect Comfort (TCC) app.
Resideo Wireless Programmable Thermostat Kit, Model: FocusPRO, 5-1-1 Day, 5-2 Day Programmability, 3 H / 2 C (Heat Pump), 2 H / 2 C (Conventional), Auto, Manual, Wall Mount (Horizontal), Wireless (Redlink), 24 VAC, Battery, LCD (Backlit), 40°F - 90°F (Heat), 50°F - 99°F (Cool), Screw Terminals, C, R. Rc, Rh, W-O/B, W2-Aux/E, Y, Y2, G, L, RAS, RAS (Equipment Interface Module) Terminal Designation, 32-120 °F, ± 1 °F, 1-1.5 °F, Thermistor, 5-90% RH (Non-Condensing), White, 3.56" H x 5.81" W x 1.5" D Dimensions, Heat/Off/Cool/Auto/Em.heat (System), Auto/On (Fan)

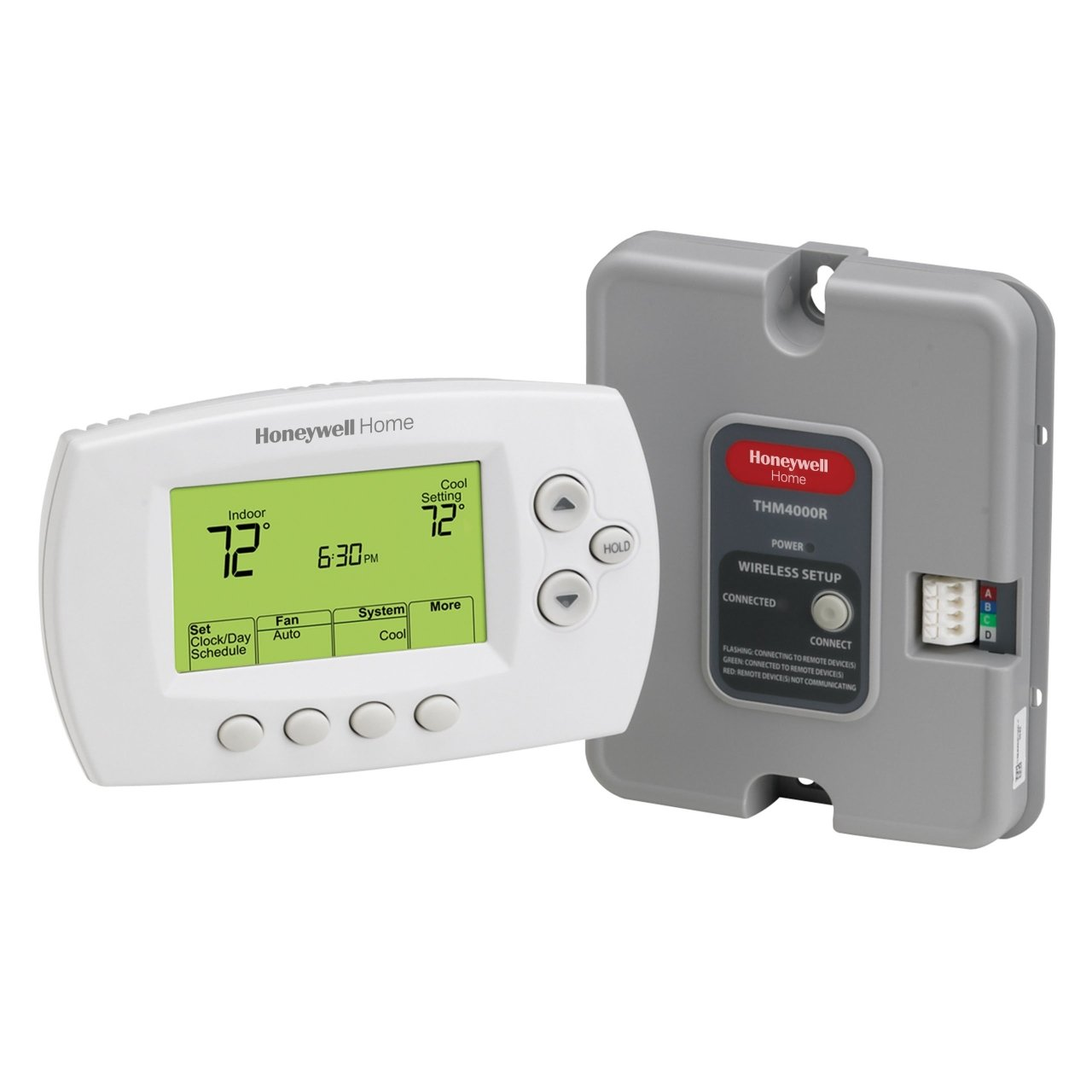

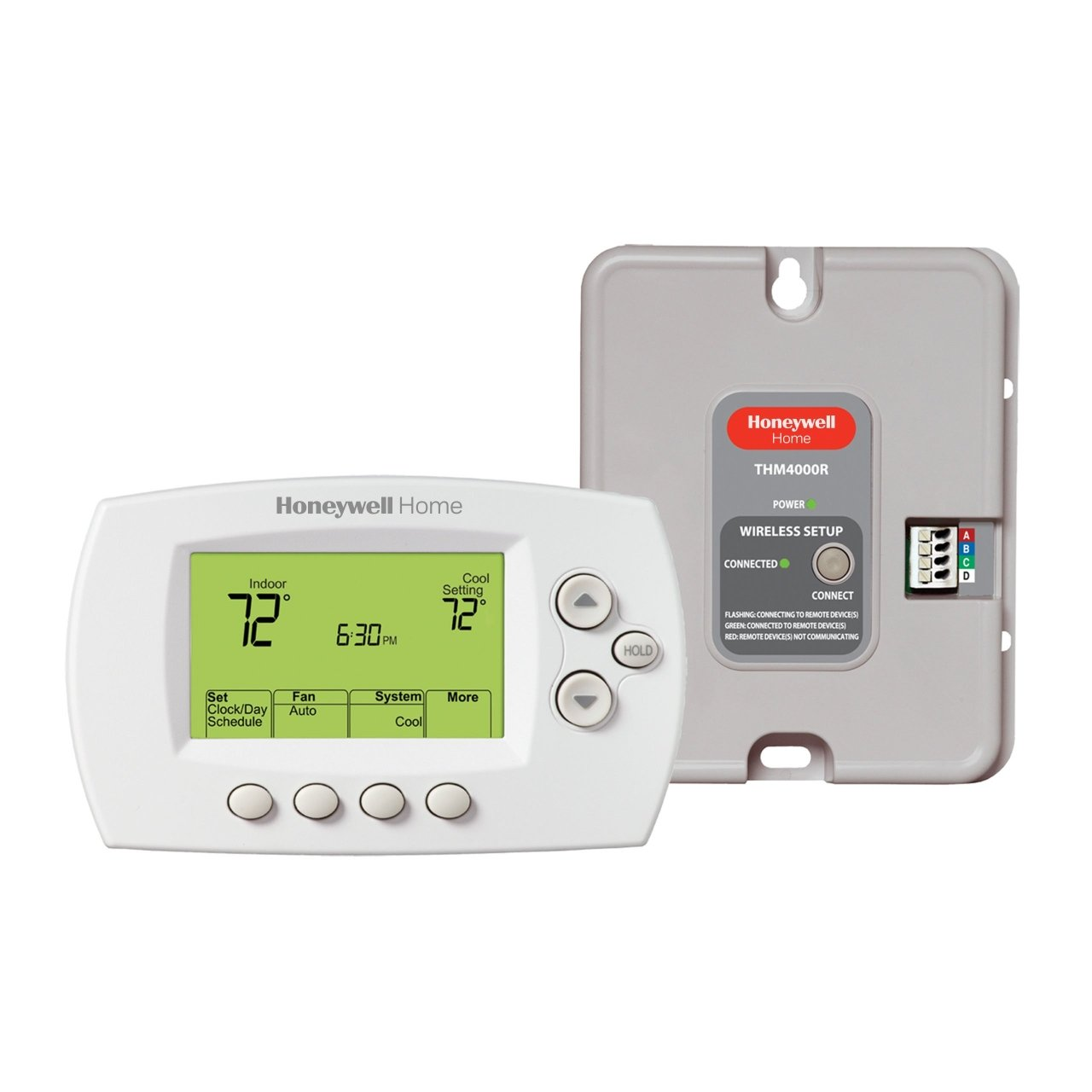

- Kit includes TH6320R1004 Wireless FocusPRO® Thermostat and THM4000R1000 Wireless Adapter.
- Simplifies thermostat relocation or system upgrades without running new wires.
- Employs dependable RedLINKâ„¢ wireless communication technology.
- Compatible With: Resideo HZ322 and HZ432 TrueZONE® Panels via the included wireless adapter.
- Controls up to 3H/2C heat pump or 2H/2C conventional systems, including dual fuel setups with optional sensor.
- Offers flexible 5-1-1 or 5-2 day programming options.
- Features a large backlit digital display for clear visibility.
- Backed by a 5-year limited warranty.
