Resideo FocusPRO YTH5320R1025 Wireless Zoning Adapter Kit, 3 H / 2 C (Heat Pump), 2 H / 2 C (Conventional), Screw Terminal, 24 VAC, Battery, Auto, Manual Changeover, LCD, 40-90 °F (Heat); 50-99 °F (Cool) Temperature Settings
Resideo FocusPRO YTH5320R1025 Wireless Zoning Adapter Kit, 3 H / 2 C (Heat Pump), 2 H / 2 C (Conventional), Screw Terminal, 24 VAC, Battery, Auto, Manual Changeover, LCD, 40-90 °F (Heat); 50-99 °F (Cool) Temperature Settings
| Amperage Rating | : | 1.0 A (Running) |
| Battery Type | : | AA Alkaline |
| Changeover | : | Auto, Manual |
| Color | : | White |
| Connection Type | : | Screw Terminal |
| Cool Current | : | 1.0 A |
| Dimensions | : | 3.56" H x 5.81" W x 1.5" D |
| Display Type | : | LCD |
| Fan Current | : | 1.0 A |
| Frequency Rating | : | 50 Hz, 60 Hz |
| Heat Current | : | 1.0 A |
| Humidity Rating | : | 5-90% RH (Non-Condensing) |
| Model | : | YTH5320R1025 |
| Mounting Type | : | Wall Mount (Horizontal) |
| Number of Fans | : | 1 |
| Power Source | : | Battery |
| Sensing Element | : | Thermistor |
| Stages | : | 3 H / 2 C (Heat Pump), 2 H / 2 C (Conventional) |
| Suitable For Use With | : | Conventional Systems (Up to 2 Heat/2 Cool); Heat Pump Systems (Up to 3 Heat/2 Cool, Including Dual Fuel) |
| Switch Position | : | Heat/Off/Cool/EM.HEAT (System), Auto/On (Fan) |
| Temperature Rating | : | 37-102 °F (Ambient Operating) |
| Temperature Settings | : | 40-90 °F (Heat); 50-99 °F (Cool) |
| Voltage Rating | : | 24 VAC |
Everything you need to relocate or upgrade with a non-programmable thermostat without running new wires. Kit options include wireless outdoor sensor, RedLINK Internet Gateway for remote access, or wireless adapters for working with TrueZONE panels.WIRELESS FOCUSPRO® THERMOSTAT: Same great features of the FocusPRO® thermostat - now wireless. Installs in minutes. Displays outdoor temperature and humidity. 1 year battery life. 2 month low battery warning. Dual Fuel enabled.EQUIPMENT INTERFACE MODULE (EIM): All HVAC equipment is wired to the module. Module receives communication from the wireless devices.RETURN AIR SENSOR: Works with the Equipment Interface Module to maintain safe indoor temperatures if power is lost at the wireless thermostat. Maintains 62 F for heating and 82 F for cooling.REDLINKâ„¢ WIRELESS TECHNOLOGY: Powered by RedLINKâ„¢ reliability. No interference with other wireless devices in the home.
Resideo Wireless Zoning Adapter Kit, Model: FocusPRO, 3 H / 2 C (Heat Pump), 2 H / 2 C (Conventional), Screw Terminal, 24 VAC, Battery, Auto, Manual Changeover, LCD, 40-90 °F (Heat); 50-99 °F (Cool) Temperature Settings, 37-102 °F (Ambient Operating), 1 Fan(s), Wall Mount (Horizontal), AA Alkaline Battery, Heat/Off/Cool/Em.heat (System), Auto/On (Fan), Thermistor, 3.56" H x 5.81" W x 1.5" D Dimensions, White, 5-90% RH (Non-Condensing), 1.0 A (Running), 50 Hz, 60 Hz

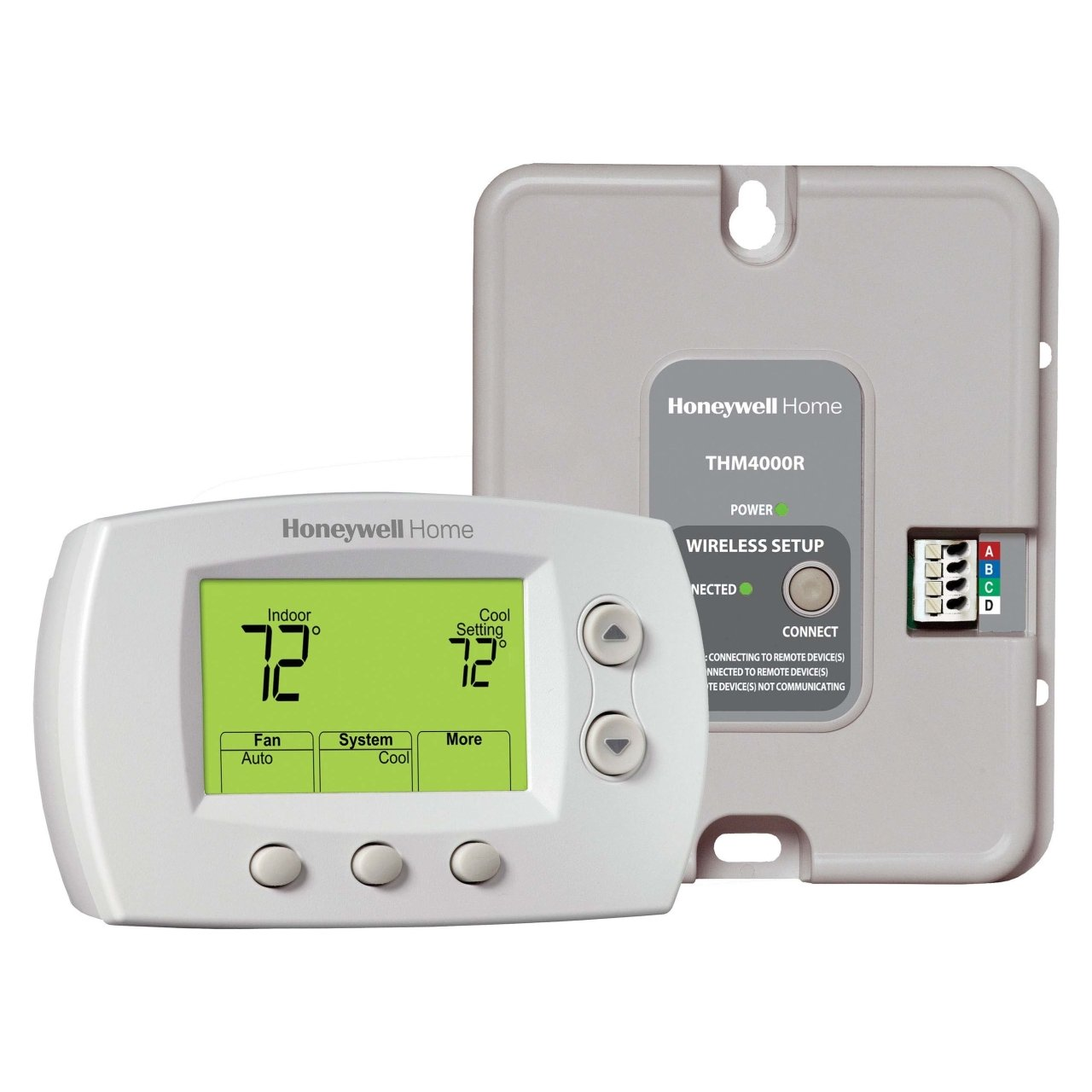

- Includes TH5320R1002 Wireless FocusPRO® Non-Programmable Thermostat and THM4000R1000 Wireless Adapter.
- Enables thermostat relocation or system upgrades without running new wires via reliable RedLINKâ„¢ wireless technology.
- Compatible with conventional systems (up to 2H/2C) and heat pump systems (up to 3H/2C, including dual fuel).
- Allows straightforward wireless zoning integration with Resideo HZ432 or HZ322 TrueZONEâ„¢ panels.
- Features an Equipment Interface Module (EIM) for easy wiring to HVAC equipment.
- Energy Star Certified.
- Covered by a 5-year warranty.
