Resideo FocusPRO YTH5320R1000 Wireless Non-Programmable Thermostat Kit, 3 H / 2 C (Heat Pump), 2 H / 2 C (Conventional), Screw Terminal, 18-30 VAC (Equipment Interface Module), Battery (Thermostat), Hardwired (Equipment Interface Module), Auto, Manual Changeover, LCD, 40-90 °F (Heat); 50-99 °F (Cool) Temperature Settings
Resideo FocusPRO YTH5320R1000 Wireless Non-Programmable Thermostat Kit, 3 H / 2 C (Heat Pump), 2 H / 2 C (Conventional), Screw Terminal, 18-30 VAC (Equipment Interface Module), Battery (Thermostat), Hardwired (Equipment Interface Module), Auto, Manual Changeover, LCD, 40-90 °F (Heat); 50-99 °F (Cool) Temperature Settings
Manufacturer: Resideo Technologies Inc
Brand: resideo
Part #: 392289
MPN: YTH5320R1000
Customer Part #:
Min. Order Qty: 1
Login for Availability
| Accuracy | : | ± 1 °F |
| Amperage Rating | : | 1.0 A (Heat); 1.0 A (Cool); 0.6 A (Fan) |
| Battery Type | : | AA Alkaline |
| Changeover | : | Auto, Manual |
| Color | : | White |
| Connection Type | : | Screw Terminal |
| Cool Current | : | 1.0 A (Running) |
| Dimensions | : | 3.44" H x 4.5" W x 1.5" D |
| Display Type | : | LCD |
| Fan Current | : | 0.6 A (Running) |
| Frequency Rating | : | 50 Hz, 60 Hz (Equipment Interface Module) |
| Heat Current | : | 1.0 A (Running) |
| Humidity Rating | : | 5-90% RH (Non-Condensing) |
| Model | : | YTH5320R1000 |
| Mounting Type | : | Wall Mount (Horizontal) |
| Number of Fans | : | 1 |
| Power Source | : | Battery (Thermostat), Hardwired (Equipment Interface Module) |
| Sensing Element | : | Thermistor |
| Stages | : | 3 H / 2 C (Heat Pump), 2 H / 2 C (Conventional) |
| Suitable For Use With | : | Gas, Oil, Electric, Heat Pump, Forced Warm Air, Hot Water, Steam, or Gravity Systems |
| Temperature Rating | : | 37-102 °F (Ambient Operating) |
| Temperature Settings | : | 40-90 °F (Heat); 50-99 °F (Cool) |
| Voltage Rating | : | 18-30 VAC (Equipment Interface Module) |
Everything you need to relocate or upgrade with a non-programmable thermostat without running new wires. Kit options include wireless outdoor sensor, RedLINK Internet Gateway for remote access, or wireless adapters for working with TrueZONE panels.WIRELESS FOCUSPRO® THERMOSTAT: Same great features of the FocusPRO® thermostat - now wireless. Installs in minutes. Displays outdoor temperature and humidity. 1 year battery life. 2 month low battery warning. Dual Fuel enabled.EQUIPMENT INTERFACE MODULE (EIM): All HVAC equipment is wired to the module. Module receives communication from the wireless devices.RETURN AIR SENSOR: Works with the Equipment Interface Module to maintain safe indoor temperatures if power is lost at the wireless thermostat. Maintains 62 F for heating and 82 F for cooling.REDLINKâ„¢ WIRELESS TECHNOLOGY: Powered by RedLINKâ„¢ reliability. No interference with other wireless devices in the home.
Resideo Wireless Non-Programmable Thermostat Kit, Model: FocusPRO, 3 H / 2 C (Heat Pump), 2 H / 2 C (Conventional), Screw Terminal, 18-30 VAC (Equipment Interface Module), Battery (Thermostat), Hardwired (Equipment Interface Module), Auto, Manual Changeover, LCD, 40-90 °F (Heat); 50-99 °F (Cool) Temperature Settings, 37-102 °F (Ambient Operating), 1 Fan(s), Wall Mount (Horizontal), ± 1 °F Accuracy, AA Alkaline Battery, Thermistor, 3.44" H x 4.5" W x 1.5" D Dimensions, White, 5-90% RH (Non-Condensing), 1.0 A (Heat); 1.0 A (Cool); 0.6 A (Fan), 50 Hz, 60 Hz (Equipment Interface Module)

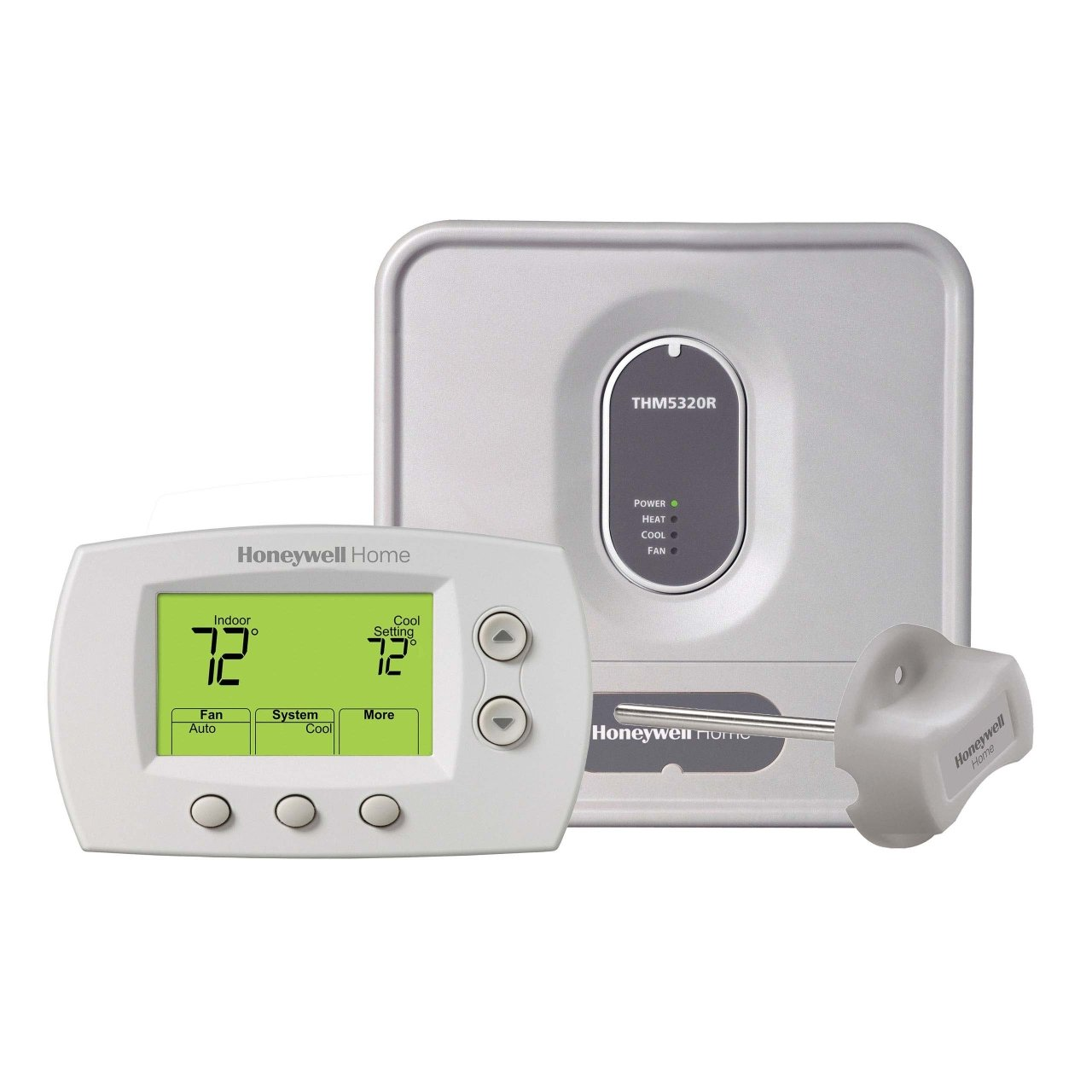

- Kit includes Wireless FocusPRO thermostat, Equipment Interface Module (EIM), and Return Air Sensor.
- Provides wireless installation to easily relocate a thermostat or upgrade equipment without running new wires.
- Compatible with up to 3H/2C heat pump or 2H/2C conventional systems.
- Controls dual fuel systems when used with an optional Wireless Outdoor Sensor.
- RedLINKâ„¢ enabled for reliable wireless communication and integration with other RedLINK accessories.
- Return Air Sensor provides backup temperature control (62°F heat/82°F cool) if thermostat batteries die.
- Features a large, clear backlit display and easy-access battery compartment.
- Covered by a 5-year manufacturer warranty.
