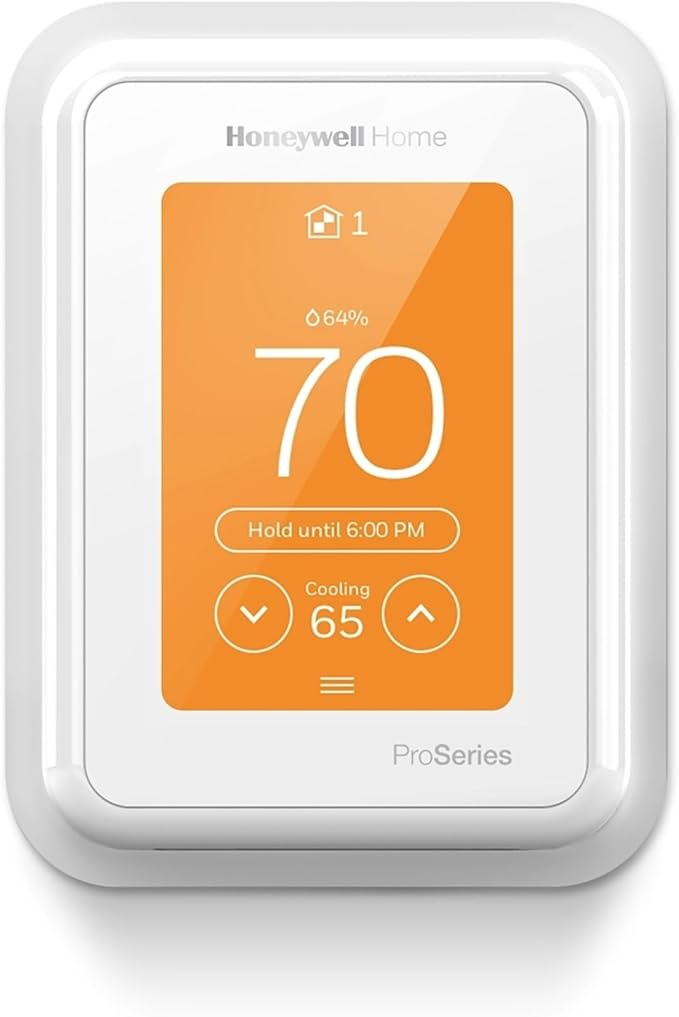

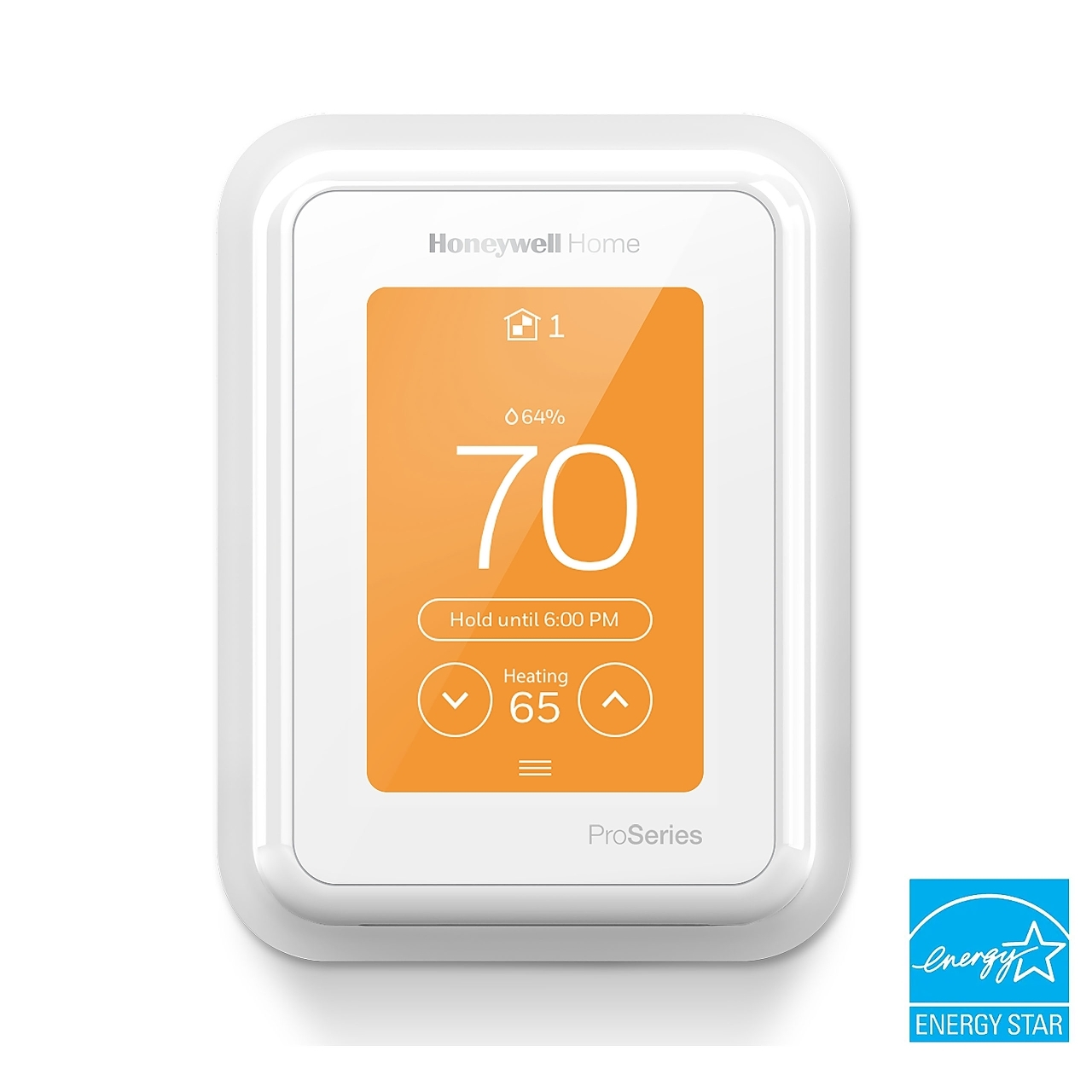

Resideo T10+ Pro THX321WF3003W/U Smart Thermostat, 20-30 VAC, 3 H / 2 C (Heat Pump), 2 H / 2 C (Conventional), 7 Day, 5-1-1 Day, 5-2 Day Or Non-Programmable, On, Auto, Circulating, Color Touchscreen, Thermistor Sensing Element, Wall Mount (UWP Mounting System)
Resideo T10+ Pro THX321WF3003W/U Smart Thermostat, 20-30 VAC, 3 H / 2 C (Heat Pump), 2 H / 2 C (Conventional), 7 Day, 5-1-1 Day, 5-2 Day Or Non-Programmable, On, Auto, Circulating, Color Touchscreen, Thermistor Sensing Element, Wall Mount (UWP Mounting System)
Manufacturer: Resideo Technologies Inc
Brand: resideo
Part #: 390164
MPN: THX321WF3003W-2
Customer Part #:
Min. Order Qty: 1
Login for Availability
| Accuracy | : | ± 1.5°F (Temperature), ± 5% RH (Humidity) deg F |
| Amperage Rating | : | 1.0 A (Heating W, Compressor Stage 1, Compressor Stage 2); 0.5 A (Fan G, Changeover O/B, Emergency Heat E) A |
| Color | : | White |
| Display Type | : | Color Touchscreen |
| Humidity Rating | : | 5-90% (Non-Condensing) % |
| Voltage Rating | : | 20-30 V |
Elevate your home's comfort with the T10+ Pro Smart Thermostat. Customize your comfort by adding REDLINK® Smart Room Sensors and creating a temperature schedule tailored to your lifestyle. Enjoy comfort and sustainability with this ENERGY STAR® certified smart home thermostat.Help eliminate the discomfort of rooms that are too cold or too hot and achieve consistent, balanced temperatures throughout your home with the T10+'s REDLINK® Smart Room Sensors. Position sensors to monitor the temperature and humidity of each room. Use the multi-room display on the smart thermostat's touchscreen or in the app to prioritize rooms based on occupancy or a personalized schedule. When managing multiple rooms, the T10+ Pro Smart Home Thermostat averages the temperature to ensure a balanced climate throughout your home.
Resideo Smart Thermostat, Model: T10+ Pro, 20-30 VAC, 3 H / 2 C (Heat Pump), 2 H / 2 C (Conventional), 7 Day, 5-1-1 Day, 5-2 Day Or Non-Programmable, On, Auto, Circulating, Color Touchscreen, Thermistor Sensing Element, Wall Mount (UWP Mounting System), 40-90 °F (Heating); 50-99 °F (Cooling), 5-90% (Non-Condensing) Humidity Rating, ± 1.5°F (Temperature), ± 5% RH (Humidity), White, 4.9" H x 3.7" W x 0.93" D Dimensions, 3 VA (Max), 1.0 A (Heating W, Compressor Stage 1, Compressor Stage 2); 0.5 A (Fan G, Changeover O/B, Emergency Heat E), 2,400,000,000 Hz (Wi-Fi, 802.11 B/G/N), 5,000,000,000 Hz (Wi-Fi, 802.11 B/G/N), 900,000,000 Hz (Redlink)
- Controls up to 3H/2C heat pump or 2H/2C conventional systems without an EIM.
- Features both Wi-Fi and RedLINK connectivity for remote access via the Resideo app and integration with RedLINK accessories.
- Allows room prioritization and temperature balancing when used with compatible RedLINK Smart Room Sensors (sold separately).
- Offers flexible programming options, including 7-day scheduling, 5-1-1, 5-2, and geofencing.
- Integrates with popular smart home platforms like Amazon Alexa, Google Assistant, Apple HomeKit, and Samsung SmartThings.
- ENERGY STAR Certified for energy savings.
- Features a color graphical LCD touchscreen display with configurable settings.
- Backed by a 5-year limited warranty.
