Resideo RedLINK THM04R3000/U Equipment Interface Module, Wall Mount, Stud Mount, Return Duct Mount, 1.59" L x 9.31" H x 4.81" W Dimensions, Gray, Wired (Screw Terminal), Wireless (Redlink), Relay, R, Rh, Rc, C, L, O/B, W1, W2-AUX 1, W3-AUX 2, Y1, Y2, G, U1, U1, U2, U2, U3, U3, S1, S1, S2, S2, S3, S3, S4, S4 Terminal Designation, Screw Terminals
Resideo RedLINK THM04R3000/U Equipment Interface Module, Wall Mount, Stud Mount, Return Duct Mount, 1.59" L x 9.31" H x 4.81" W Dimensions, Gray, Wired (Screw Terminal), Wireless (Redlink), Relay, R, Rh, Rc, C, L, O/B, W1, W2-AUX 1, W3-AUX 2, Y1, Y2, G, U1, U1, U2, U2, U3, U3, S1, S1, S2, S2, S3, S3, S4, S4 Terminal Designation, Screw Terminals
| Amperage Rating | : | 0.02-1.0 A (Cool Current Running); 0.02-1.0 A (Heat Current); 0.02-0.05 A (Fan Current) |
| Changeover | : | Auto, Manual |
| Color | : | Gray |
| Connection Type | : | Wired (Screw Terminal), Wireless (RedLINK) |
| Control Type | : | Relay |
| Dimensions | : | 1.59" L x 9.31" H x 4.81" W |
| End Connection | : | Screw Terminals |
| Frequency Rating | : | 50 Hz, 60 Hz |
| Heat Current | : | 0.02-1.0 A |
| Humidity Rating | : | 5-90% (RH, Non-Condensing) |
| Model | : | THM04R3000/U |
| Mounting Type | : | Wall Mount, Stud Mount, Return Duct Mount |
| Power Method | : | Hardwired |
| Series | : | RedLINK |
| Stages | : | 3 H / 2 C (Heat Pump), 2 H / 2 C (Conventional) |
| Temperature Rating | : | -40-165 °F (Operating) |
| Terminal Designation | : | R, Rh, Rc, C, L, O/B, W1, W2-AUX 1, W3-AUX 2, Y1, Y2, G, U1, U1, U2, U2, U3, U3, S1, S1, S2, S2, S3, S3, S4, S4 |

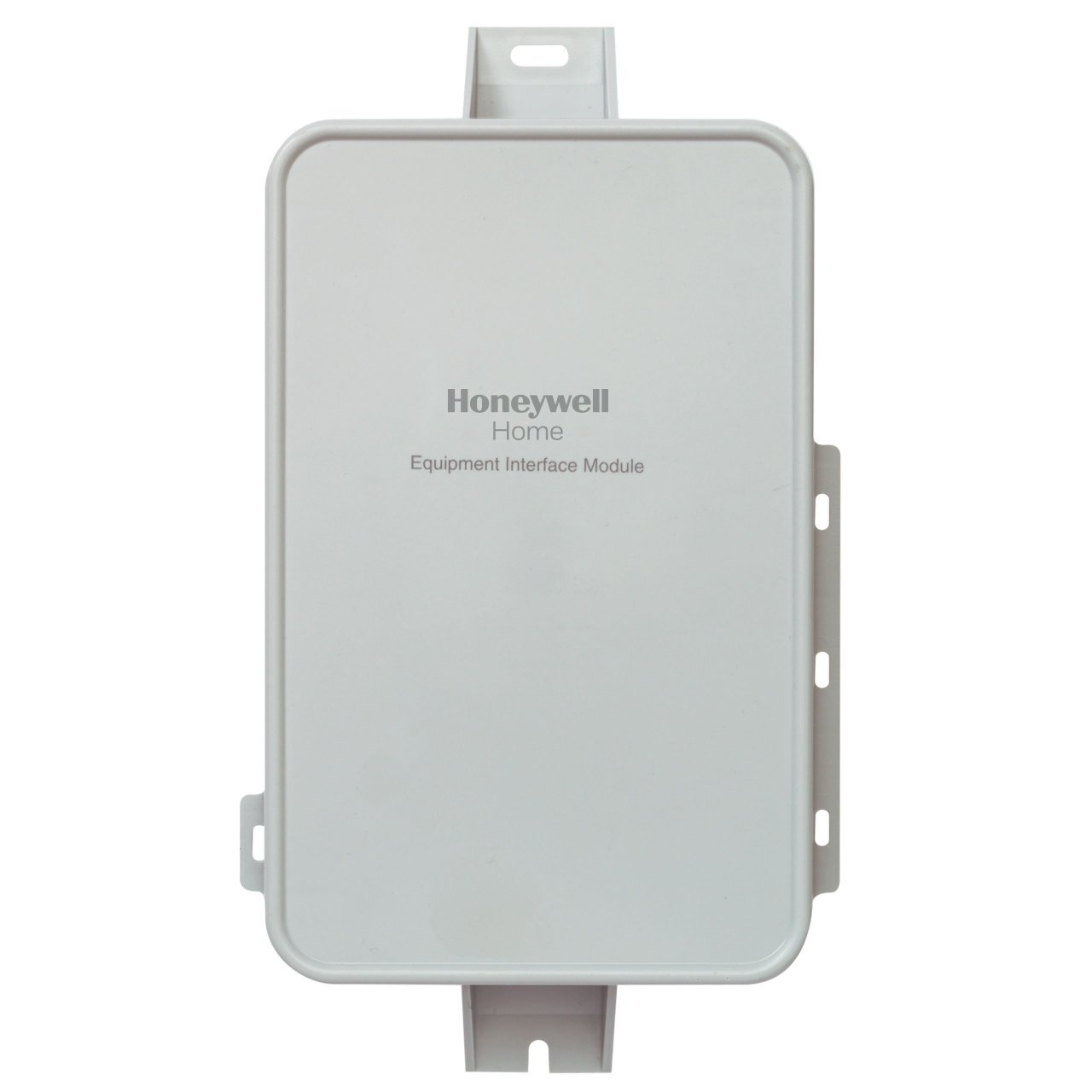

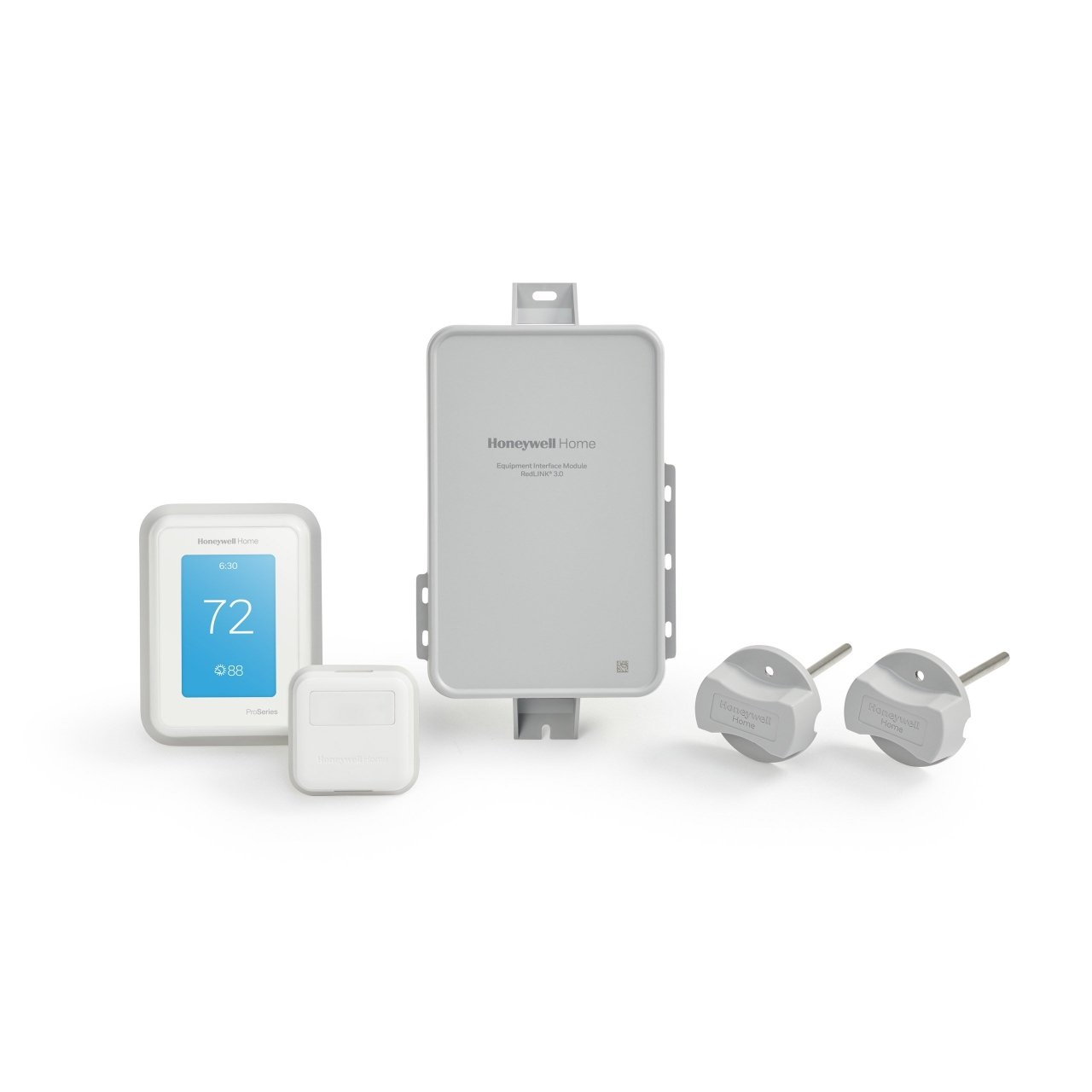

This Equipment Interface Module (EIM) uses RedLINK wireless technology to connect Honeywell Home T10+ Pro Smart Thermostats to HVAC equipment. It simplifies wiring for complex systems, supporting up to 3 Heat/2 Cool heat pump or 2 Heat/2 Cool conventional systems, including gas, oil, electric, steam/gravity, and dual fuel configurations.The module mounts easily to a wall, stud, or return duct and uses screw terminals for hardwired connections to the equipment. LEDs provide visual status updates for system operation and wireless connection.
Resideo Equipment Interface Module, Model: RedLINK, Wall Mount, Stud Mount, Return Duct Mount, 1.59" L x 9.31" H x 4.81" W Dimensions, Gray, Wired (Screw Terminal), Wireless (Redlink), Relay, R, Rh, Rc, C, L, O/B, W1, W2-AUX 1, W3-AUX 2, Y1, Y2, G, U1, U1, U2, U2, U3, U3, S1, S1, S2, S2, S3, S3, S4, S4 Terminal Designation, Screw Terminals, Hardwired, 20-30 VAC, 0.02-1.0 A (Cool Current Running); 0.02-1.0 A (Heat Current); 0.02-0.05 A (Fan Current) Amperage Rating, 50 Hz, 60 Hz, -40-165 °F (Operating), 5-90% (RH, Non-Condensing), 3 H / 2 C (Heat Pump), 2 H / 2 C (Conventional), Auto, Manual Changeover

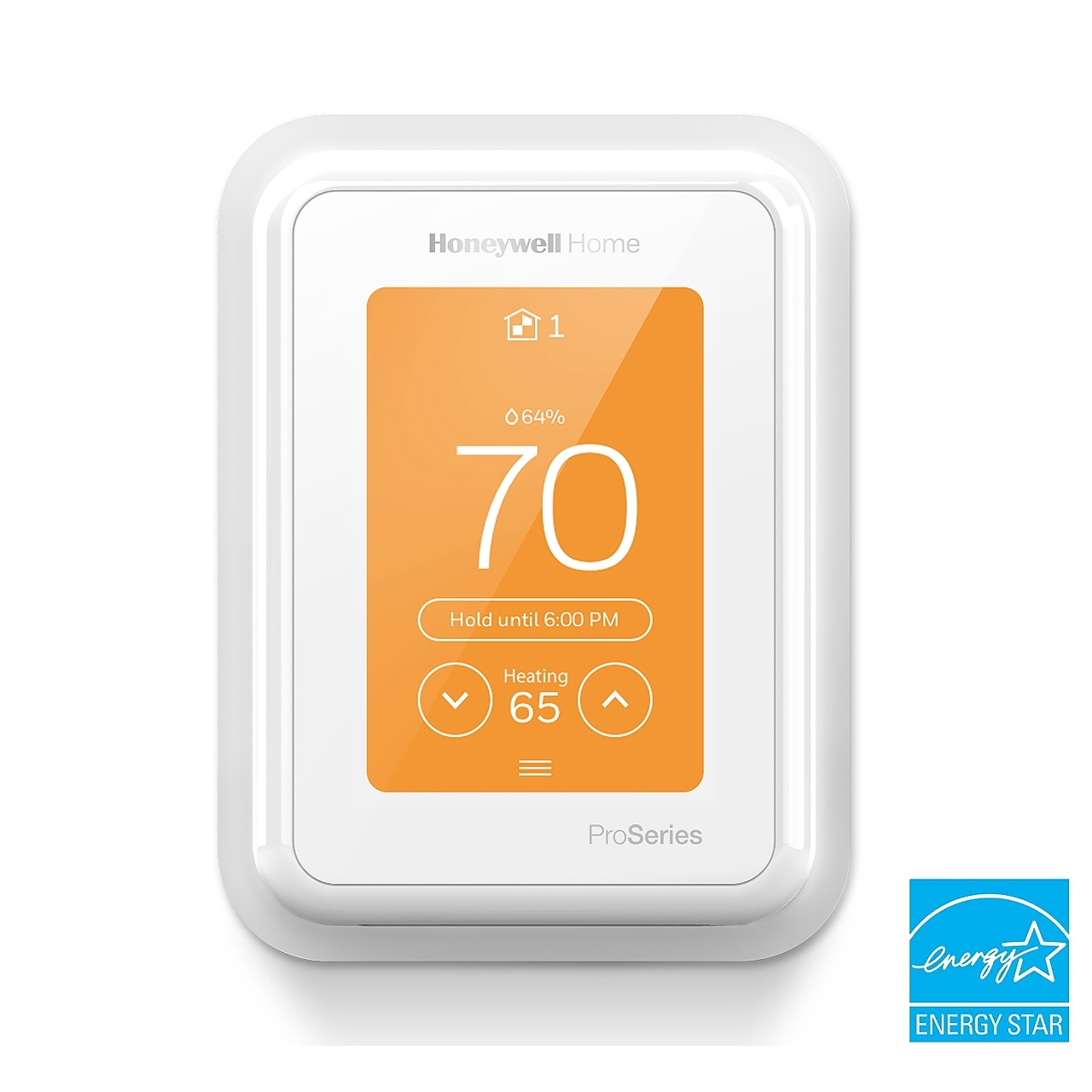

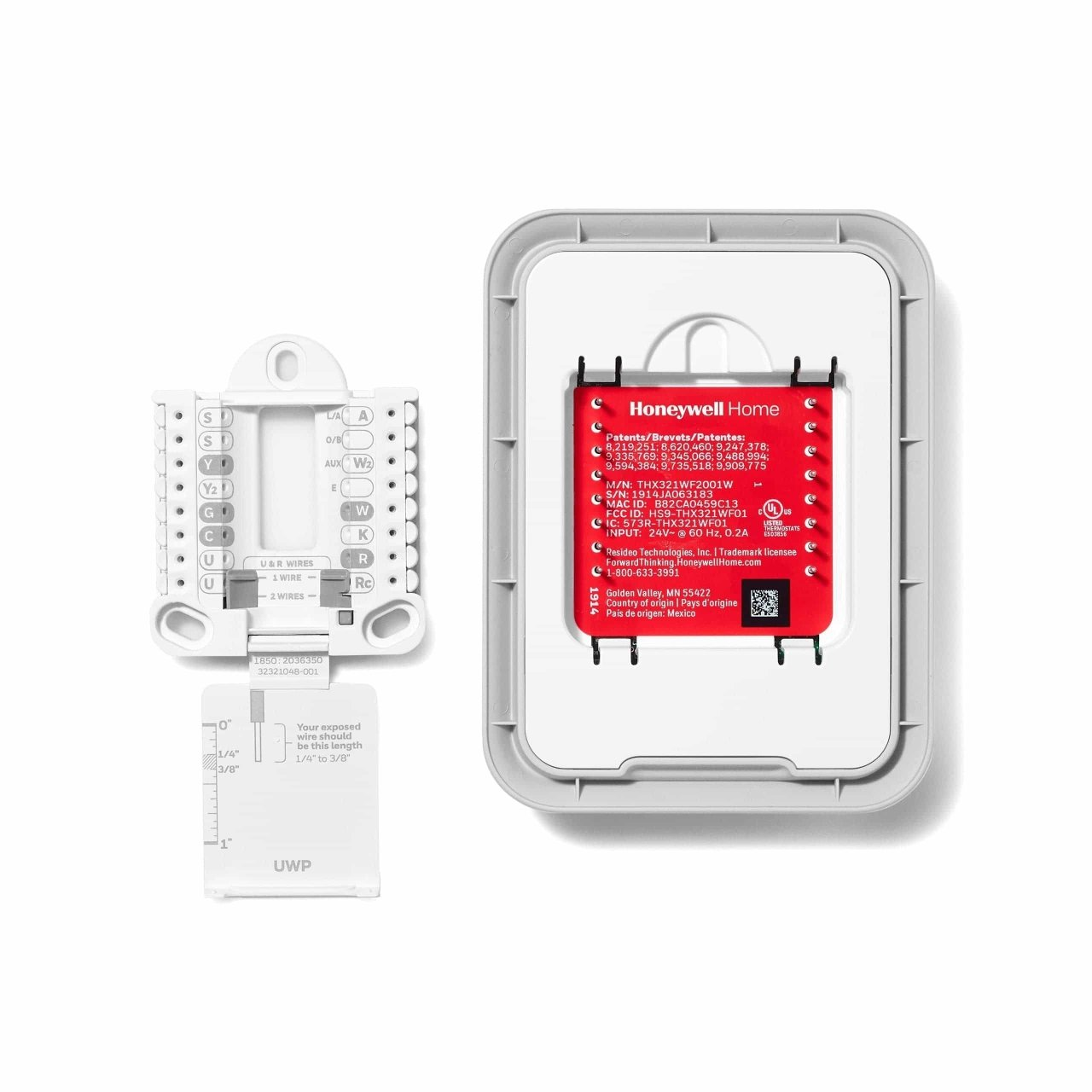

- Compatible exclusively with Honeywell Home T10+ Pro Smart Thermostats.
- Enables control of up to 3H/2C heat pump or 2H/2C conventional systems.
- Utilizes RedLINK wireless technology to simplify wiring between thermostat and equipment.
- Supports various 24 VAC systems, including gas, oil, electric, steam/gravity, and dual fuel.
- Allows the T10+ thermostat to control humidification, dehumidification, and ventilation accessories.
- Mounts conveniently on a wall, stud, or return duct.
- Features LEDs for quick visual confirmation of system and connection status.
