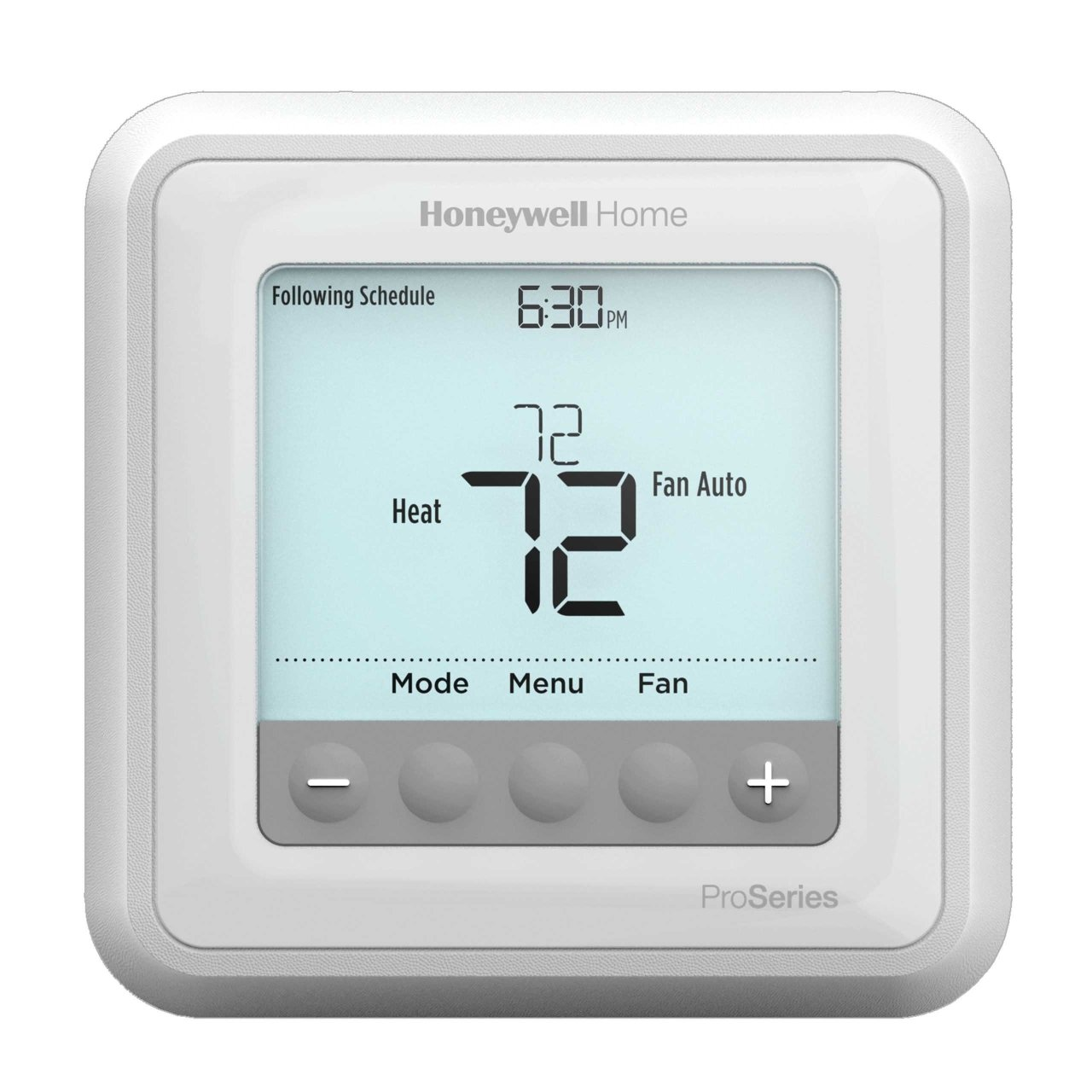

Resideo T6 Pro Programmable Thermostat, 7 Day, 5-1-1 Day, 5-2 Day Or Non-Programmable Programmability, 3 H / 2 C (Heat Pump), 2 H / 2 C (Conventional), Auto, Manual, Wall Mount (UWP Mount), Wired / Lead Wires, 20-30 VAC, Dual Powered
Resideo T6 Pro Programmable Thermostat, 7 Day, 5-1-1 Day, 5-2 Day Or Non-Programmable Programmability, 3 H / 2 C (Heat Pump), 2 H / 2 C (Conventional), Auto, Manual, Wall Mount (UWP Mount), Wired / Lead Wires, 20-30 VAC, Dual Powered
| Accuracy | : | ± 1 °F |
| Amperage Rating | : | 0.02-1.0 A |
| Battery Size | : | AA |
| Battery Type | : | AA Alkaline |
| Changeover | : | Auto, Manual |
| Color | : | White |
| Connection Type | : | Wired / Lead Wires |
| Contact Rating | : | 0.02-1.0 A (20-30 VAC) |
| Control Range | : | 40 °F-90 °F (Heat), 50 °F-99 °F (Cool) |
| Cool Current | : | 0.02-1.0 A (Y Compressor Stage 1), 0.02-1.0 A (Y2 Compressor Stage 2) |
| Differential Temperature | : | ± 1 °F |
| Dimensions | : | 4-1/16" H x 4-1/16" W x 1-5/32" D |
| Display Type | : | LCD (Backlit) |
| Electrical Connection | : | UWP Mounting System |
| Fan Current | : | 0.02-0.5 A |
| Frequency Rating | : | 50 Hz, 60 Hz |
| Heat Current | : | 0.02-1.0 A (W Heating), 0.02-1.0 A (W2 Aux Heating), 0.02-0.5 A (E Emergency Heat) |
| Humidity Rating | : | 5-90% RH (Non-Condensing) |
| Material | : | Plastic |
| Model | : | TH6320U2008 |
| Mounting Type | : | Wall Mount (UWP Mount) |
| Power Rating | : | 1.0 VA (Backlight On) |
| Power Source | : | Dual Powered |
| Programmability | : | 7 Day, 5-1-1 Day, 5-2 Day or Non-Programmable |
| Sensing Element | : | Thermistor |
| Series | : | T6 Pro |
| Stages | : | 3 H / 2 C (Heat Pump), 2 H / 2 C (Conventional) |
| Switch Type | : | Relay, SPDT |
| Temperature Rating | : | 37-102 °F |
| Temperature Settings | : | 40°F - 90°F (Heat), 50°F - 99°F (Cool) |
| Terminal Designation | : | R, RC, C, W, O/B, W2-AUX, E, Y, Y2, G, L/A, K, S, S |
| VA Rating | : | 1 VA (Backlight On) |
| Voltage Rating | : | 20-30 VAC |

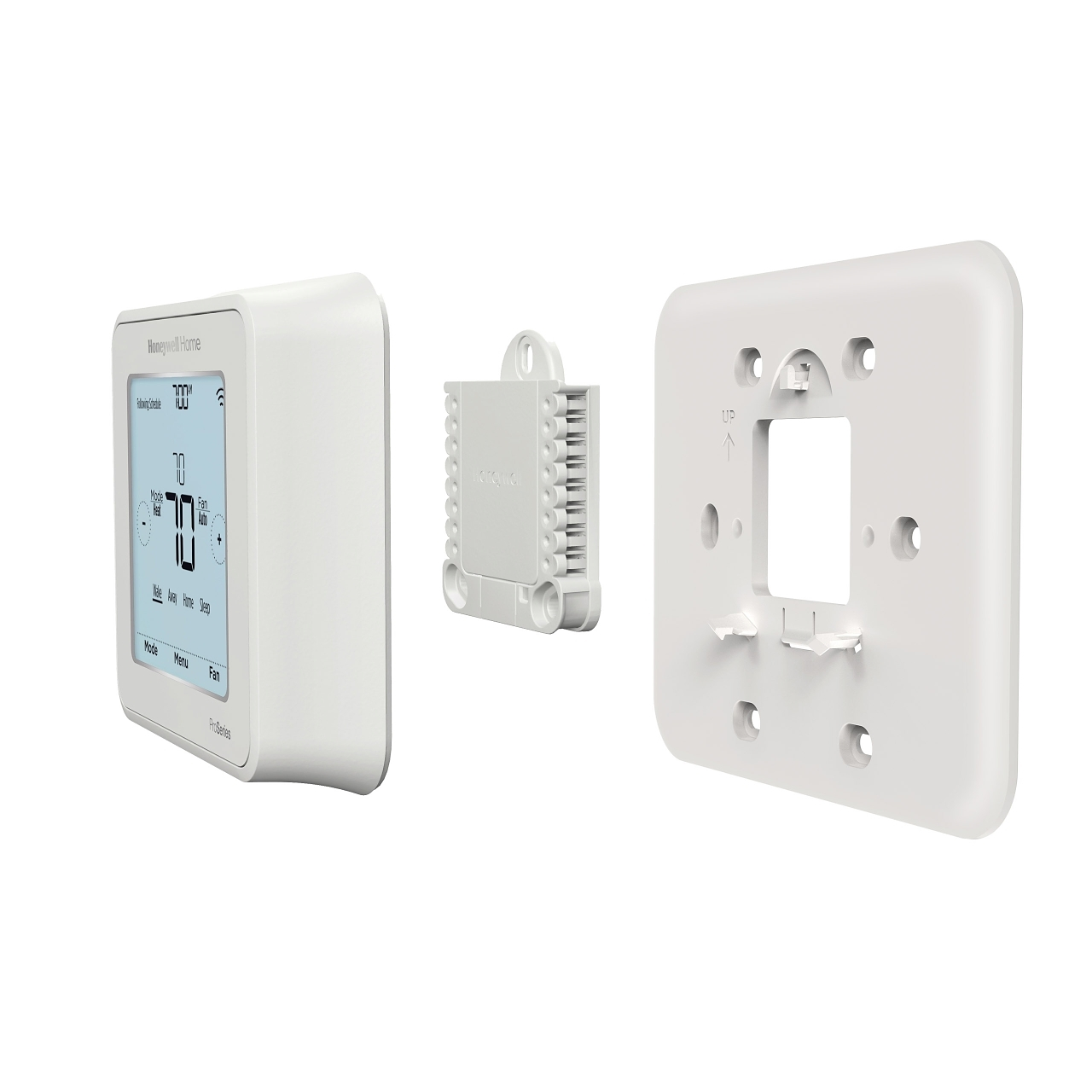

The T6 Pro Programmable Thermostat streamlines everything from product selection and installation to customer support. With a standard footprint and simple interface, the T Series will enhance the entire thermostat experience for you and your customers.Additionally, this T6 thermostat has a snap-together design, allowing for easy upgrades from a non-connected to a connected thermostat later without replacing the connector and cover plate. It supports up to 3 Heat/2 Cool heat pump systems or up to 2 Heat/2 Cool conventional systems.
Resideo Programmable Thermostat, Model: T6 Pro, 7 Day, 5-1-1 Day, 5-2 Day Or Non-Programmable Programmability, 3 H / 2 C (Heat Pump), 2 H / 2 C (Conventional), Auto, Manual, Wall Mount (UWP Mount), Wired / Lead Wires, 20-30 VAC, Dual Powered, LCD (Backlit), 40°F - 90°F (Heat), 50°F - 99°F (Cool), UWP Mounting System, R, RC, C, W, O/B, W2-AUX, E, Y, Y2, G, L/A, K, S, S Terminal Designation, 1 VA (Backlight On), 37-102 °F, ± 1 °F, Thermistor, 5-90% RH (Non-Condensing), White, 4-1/16" H x 4-1/16" W x 1-5/32" D Dimensions, Plastic, AA Alkaline Battery, 0.02-1.0 A (20-30 VAC), 50 Hz, 60 Hz, Heat/Cool/Em.heat/Off/Auto (System), Cycled/Continuous (Fan), Relay, SPDT
- Controls up to 3 Heat/2 Cool heat pump systems or 2 Heat/2 Cool conventional systems.
- Offers flexible programming options: 7-day, 5-1-1 day, 5-2 day, or non-programmable modes.
- Dual power capability allows for battery or hardwired (C-wire) operation.
- Features the Resideo UWP mounting system for simple installation and standardization across the T Series.
- Includes user-friendly features like simple push-button controls and filter change reminders.
- Supports optional dual fuel operation and wired sensor input for enhanced system control (sensors sold separately).
- Comes with a 5-year manufacturer warranty.
