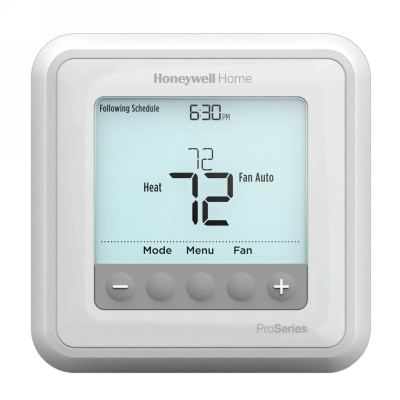

Resideo T6 Pro TH6220U2000 Programmable Thermostat, 7 Day, 5-1-1 Day, 5-2 Day Or Non-Programmable Programmability, 2 H / 2 C (Conventional Systems), 2 H / 1 C (Heat Pump Systems), Auto, Manual, UWP Mount (Wall/Junction Box), Wired / Lead Wires, 20-30 VAC, Dual Powered (C-Wire)
Resideo T6 Pro TH6220U2000 Programmable Thermostat, 7 Day, 5-1-1 Day, 5-2 Day Or Non-Programmable Programmability, 2 H / 2 C (Conventional Systems), 2 H / 1 C (Heat Pump Systems), Auto, Manual, UWP Mount (Wall/Junction Box), Wired / Lead Wires, 20-30 VAC, Dual Powered (C-Wire)
| Accuracy | : | ± 1 °F |
| Amperage Rating | : | 0.02-1.0 A (Heat W/W2, Cool Y/Y2), 0.02-0.5 A (Fan G, Emergency Heat E, Changeover O/B) |
| Battery Size | : | AA |
| Battery Type | : | AA Alkaline |
| Changeover | : | Auto, Manual |
| Color | : | White |
| Connection Type | : | Wired / Lead Wires |
| Contact Rating | : | 0.02-1.0 A (Heat W/W2, Cool Y/Y2, 20-30 VAC), 0.02-0.5 A (Fan G, Emergency Heat E, Changeover O/B, L/A Input, 20-30 VAC) |
| Control Range | : | 40 °F-90 °F (Heat), 50 °F-99 °F (Cool) |
| Cool Current | : | 0.02-1.0 A (Y/Y2 Terminals) |
| Dehumidification | : | No |
| Differential Temperature | : | ± 1 °F, 1-1.5 °F (Interstage) |
| Dimensions | : | 4-1/16" H x 4-1/16" W x 1-5/32" D |
| Display Type | : | LCD (Backlit) |
| Electrical Connection | : | UWP Mounting System |
| Fan Current | : | 0.02-0.5 A |
| Frequency Rating | : | 50 Hz, 60 Hz |
| Heat Current | : | 0.02-1.0 A (W/W2 Terminals), 0.02-0.5 A (E Terminal) |
| Humidity Rating | : | 5-90% RH (Non-Condensing) |
| Material | : | Plastic |
| Model | : | TH6220U2000 |
| Mounting Type | : | UWP Mount (Wall/Junction Box) |
| Power Rating | : | 1.0 VA (Backlight On) |
| Power Source | : | Dual Powered (C-Wire) |
| Programmability | : | 7 Day, 5-1-1 Day, 5-2 Day or Non-Programmable |
| Sensing Element | : | Thermistor |
| Series | : | T6 Pro |
| Stages | : | 2 H / 2 C (Conventional Systems), 2 H / 1 C (Heat Pump Systems) |
| Switch Type | : | Relay |
| Temperature Rating | : | 37-102 °F |
| Temperature Settings | : | 40°F - 90°F (Heat), 50°F - 99°F (Cool) |
| Terminal Designation | : | R, RC, C, W, O/B, W2-AUX, E, Y, Y2, G, L/A, K, S, S |
| VA Rating | : | 1 VA |
| Voltage Rating | : | 20-30 VAC |
The Resideo T6 Pro programmable thermostat, part of the T Series, simplifies installation and use with its standard UWP mounting system and straightforward push-button interface. It is designed for multi-stage systems, supporting up to 2 stages of heating and cooling for conventional setups, or 2 stages of heating and 1 stage of cooling for heat pumps.This versatile thermostat offers flexible scheduling options (7-day, 5-2, 5-1-1, or non-programmable) to match user preferences. It features a large, backlit display for clear visibility and provides convenient filter change reminders. The T6 Pro can be powered by batteries or hardwired using a C-wire for continuous operation.
Resideo Programmable Thermostat, Model: T6 Pro, 7 Day, 5-1-1 Day, 5-2 Day Or Non-Programmable Programmability, 2 H / 2 C (Conventional Systems), 2 H / 1 C (Heat Pump Systems), Auto, Manual, UWP Mount (Wall/Junction Box), Wired / Lead Wires, 20-30 VAC, Dual Powered (C-Wire), LCD (Backlit), 40°F - 90°F (Heat), 50°F - 99°F (Cool), UWP Mounting System, R, RC, C, W, O/B, W2-AUX, E, Y, Y2, G, L/A, K, S, S Terminal Designation, 1 VA, 37-102 °F, ± 1 °F, ± 1 °F, 1-1.5 °F (Interstage), Thermistor, 5-90% RH (Non-Condensing), No Dehumidification, White, 4-1/16" H x 4-1/16" W x 1-5/32" D Dimensions, Plastic, AA Alkaline Battery, 0.02-1.0 A (Heat W/W2, Cool Y/Y2, 20-30 VAC), 0.02-0.5 A (Fan G, Emergency Heat E, Changeover O/B, L/A Input, 20-30 VAC), 50 Hz, 60 Hz, Heat/Off/Cool/Auto/Em.heat (System), Auto/On/Circ/Follow Schedule (Fan)
- Controls multi-stage systems: Up to 2H/2C conventional or 2H/1C heat pump.
- Offers flexible programming: Choose 7-day, 5-2, 5-1-1 day schedules or non-programmable mode.
- Easy installation and setup with the standard UWP mounting system.
- Features a large, backlit display and simple push-button controls for ease of use.
- Dual power capability allows for battery operation or hardwiring with a C-wire.
- Includes helpful filter change reminders.
- Protected by a 5-year manufacturer warranty.
